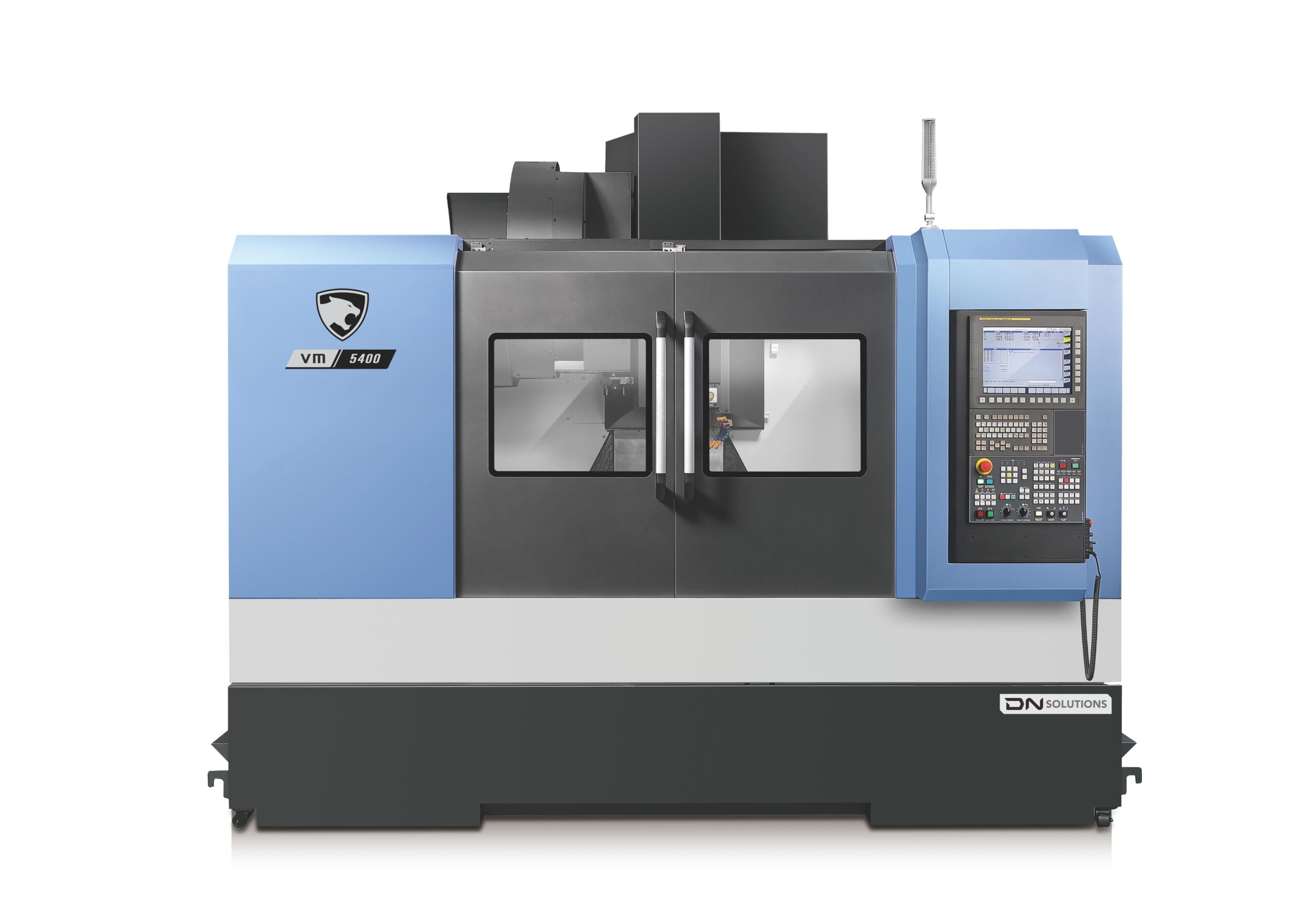

DN Solutions Vertical Machining Center VM Series
DN Solutions Vertical Machining Center VM Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specifications
DN Solutions VM Series
| Description | Unit | VM750 | VM 750L | VM 960 | VM 960L | VM 1260 | VM5400 | VM6500 | |
| Travel | X-axis | mm (inch) | 1500 (59.1) | 1800 (70.9) | 2000 (78.7) | 2400 (94.5) | 2500 (98.4) | 1020 (40.2) | 1270 (50.0) |
| Y-axis | mm (inch) | 750 (29.5) | 960 (37.8) | 1260 (49.6) | 540 (21.3) | 670 (26.4) | |||
| Z-axis | mm (inch) | 800 (31.5) | 900 (35.4) | 530 (20.9) | 625 (24.6) | ||||
| Distance from spindle nose to table top | mm (inch) | 200 - 1000 (7.9 - 39.4) | 200 - 1100 (7.9 - 43.3) | 150 ~ 680 (5.9 - 26.8) | 150 ~ 775 (5.9 - 30.5) | ||||
| Distance from spindle nose to column | mm (inch) | 865 (34.1) | 1005 (39.6) | 1320 (52.0) | 676 (26.6) | 772 (30.4) | |||
| Feed Rate | Rapid feedrate (X, Y, Z) | m/min (ipm) | 20 / 20 / 20 (787.4 / 787.4 / 787.4) | 16 / 16 / 16 (629.9 / 629.9 / 629.9) | 12 / 12 / 12 (472.4 / 472.4 /472.4 ) | 30 / 30 / 24 (1181.1 / 1181.1 / 944.9) | |||
| Cutting feed rate | m/min (ipm) | 10000 | 8000 | 6000 | 12000 (472.4) | ||||
| Table | Table size | mm (inch) | 1600 x 800 (63.0 x 31.5) | 1900 x 800 (74.8 x 31.5) | 2400 x 950 (94.5 x 37.4) | 2600 x 950 (102.4 x 37.4) | 2800 x 1260 (110.2 x 49.6) | 1200 × 540 (47.2 × 21.3) | 1400 × 670 (55.1 × 26.4) |
| Loading capacity | kg (lb) | 3000 | 3500 | 4000 | 4500 | 8000 | 800 (1763.7) | 1000 (2204.6) | |
| Spindle | Max spindle speed | r/min | 6000 {8000, 12000} | 12000 | |||||
| Taper specifications | ISO#50 7/24 Taper | ISO #40 7/24 Taper | |||||||
| Max. torque | N·m (ft-lb) | 587.6 {698.8, 793.8}, {420} | 698.8 {793.8}, {420} | 165.6 (122.2) | |||||
| Automatic Tool Changer (ATC) | Tool shank type | - | BIG PLUS MAS403 BT50 | MAS406-BT40 | |||||
| Tool storage capacity Chain type | ea | 30 {40} | 40 | 30 {40} | |||||
| Motor | Spindle motor power (30 min) | kW (Hp) | 18.5/15 {22/18.5, 26/22, 30/25} (24.8/20.1 {29.5/24.8, 34.9/29.5, 40.2/33.5}) | 59.39 {60, 68.33, 70}(79.6 {80.5, 91.6,93.9}) | 15.6 (20.9) | ||||
| Machine Size | Height (H) | mm (inch) | 3570 (1406) | 3930 (154.7) | F_3012 (118.6) / H_3117 (122.7) | F_3107 (122.3) / H_3216 (126.6 | |||
| Dimension (L x W) | mm (inch) | 4524 x 4650 (178.1x 1831) | 4524 x 5010 (178.1 x 1972) | 4846 x 5900 (190.8x 2323) | 4846 x 6300 (190.8 x 2480) | 5645 x 6938 (222.2 x 273.1) | 2444 × 3350 (96.2 × 131.9) | 2674 × 3350 (105.3 × 131.9) | |
| Weight | kg (lb) | 14000 (30864.3) | 14800 (32627.9) | 20000 (44091.8) | 21000 (46296.4) | 31000 (68342.3) | 7000 (15432.1) | 9000 (19841.3) | |
Features
| In addition to higher durability and an excellent vibration absorption feature, the static stiffness and dynamic stiffness have been improved by 30%, thanks to the Finite Element Method (EFM). |
| The unsurpassed quality and accuracy of the VM series achieves world-class performance in the machining of die & mold products. |
| Superior surface finishes and machining accuracy are achieved through using standard processing solutions such as high-speed / high – precision contour control and thermal displacement compensation. |
| The VM Series provides ultra-precise machining capability using high speed / precision contour feed control and the optimum machine stability. |
| A range of options is available to suit individual requirements. |
| Deliver excellent performance on diverse machining conditions. |
