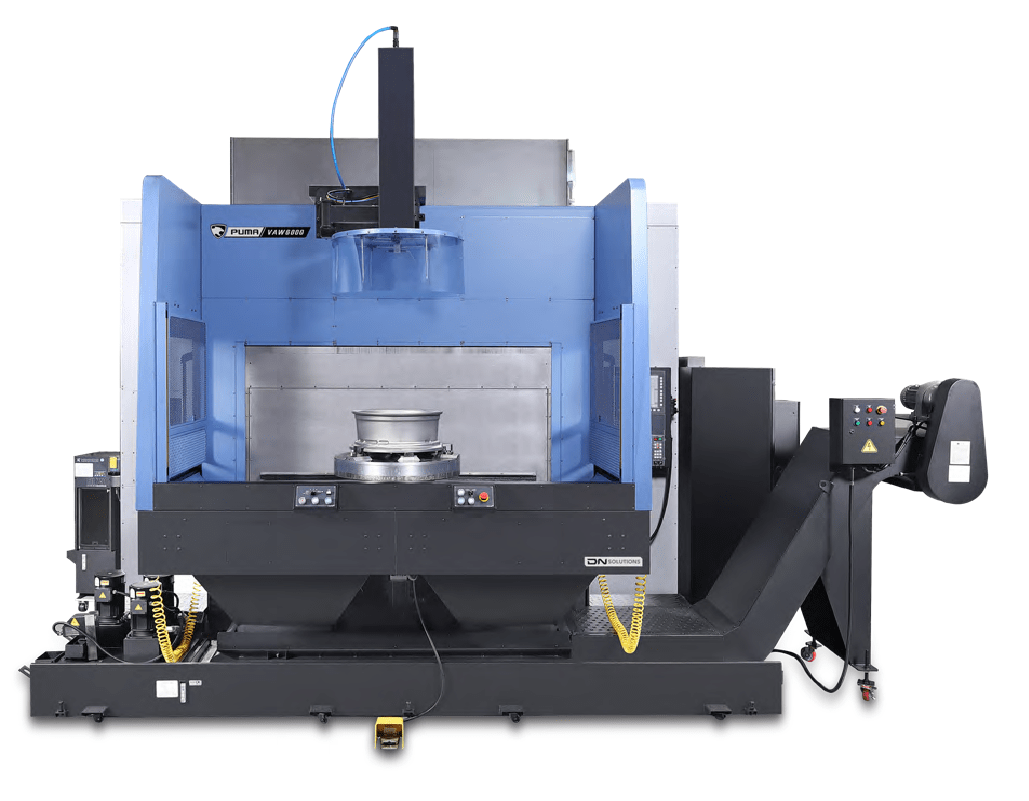

DN Solutions Vertical Turning Center PUMA VAW Series
DN Solutions Vertical Turning Center PUMA VAW Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specifications
DN Solutions PUMA VAW Series
| Description | Unit | PUMA VAW6000-ACC | PUMA VAW800 | |
| Capacity | Swing over bed | mm (inch) | 900 (35.4) | 1140 |
| Swing over saddle | mm (inch) | 790 (31.1) | 970 | |
| Max. turning diameter | mm (inch) | 790 (31.1) | 711 (28.0) (28") | |
| Max. turning height/length | mm (inch) | 350 (13.8) | 440 (17.3) | |
| Max wheel size | mm (inch) | 24 | 28 | |
| Travel | Travel distance_LEFT X-axis | mm (inch) | 500 (19.7) | 570 (22.4) |
| Travel distance_LEFT Z-axis | mm (inch) | 650 (25.6) | 650 (25.6) | |
| Travel distance_RIGHT X-axis | mm (inch) | 500 (19.7) | 570 (22.4) | |
| Travel distance_RIGHT Z-axis | mm (inch) | 650 (25.6) | 650 (25.6) | |
| Rapid traverse Rate X-axis | m/min(ipm) | 30 (1181.1) | 16 (629.9) | |
| Rapid traverse RateZ-axis | m/min(ipm) | 30 (1181.1) | 16 (629.9) | |
| Main Spindle | Spindle speed | r/min | 2000{3,000} | 2000 |
| Spindle nose | ASA | A2-15 | A2-11 | |
| Spindle bearing diameter (Front) | mm (inch) | 160 (6.3) | 150 (5.9) | |
| Turret | No. of tool stations | st | 8+8 | 6+6 |
| OD tool size | mm (inch) | 25x25 (1.0x1.0) | ||
| Turret Indexing time (1 station swivel) | s | 1 | 1.2 | |
| Power source | Electric power supply (rated capacity) | kVA | 180 | 88.19 |
| Machine Size | Length | mm (inch) | 4563 (179.6) | 4470 (176.0) |
| Width | mm (inch) | 3023 (119.0) | 3842 (151.3) | |
| Height | mm (inch) | 3880 (152.8) | 3680 (144.9) | |
| Weight | kg (lb) | 20000 (44091.8) | 13500 (29762.0) | |
| Controller | NC system | DN Solutions Fanuc i Plus | ||
Features
| The VAW Series enables automobile and truck wheels from 14″ to 28″ diameter to be handled efficiently |
| The double turret capability enables machining of inner and outer wheel diameters to be carried out simultaneously, thereby significantly reducing cycle time |
| Cycle time can also be reduced by applying the Automatic Chuck Changer. |
| Efficient chip removal is achieved by applying inclined surfaces to the bed structure. |
| The overhead chuck cleaner enables any remaining chips to be cleared before unloading the finished wheel. |
