Technical Specifications

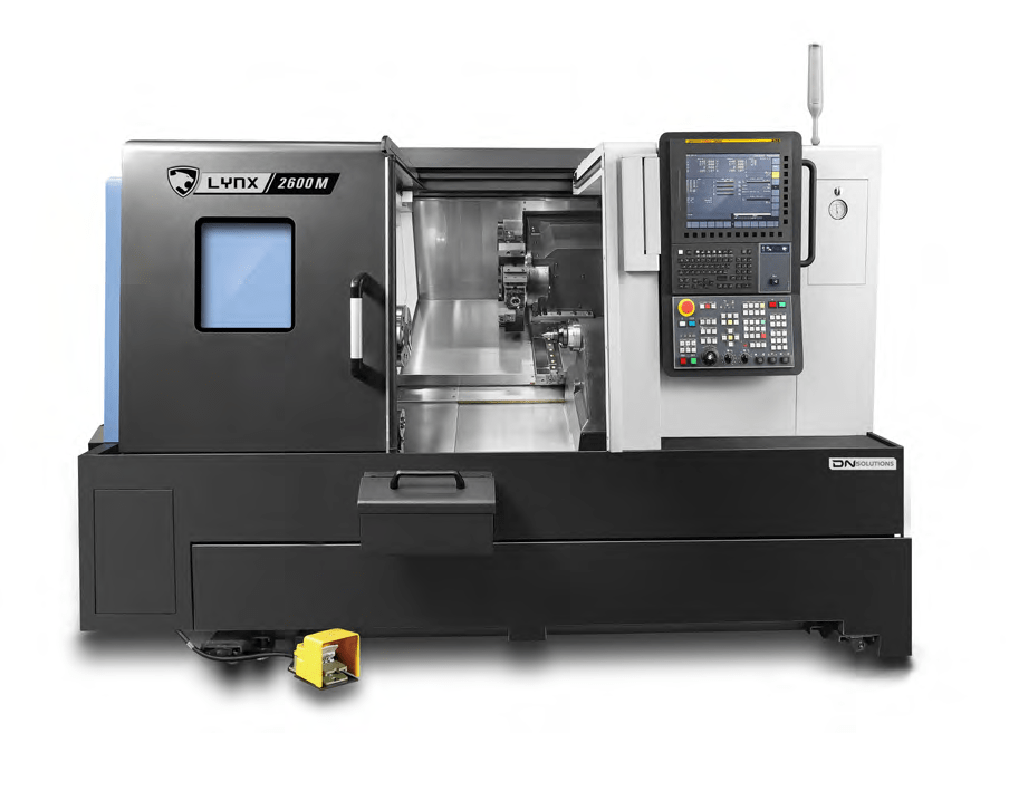

DN Solutions Lynx 2100LY Lynx 2600Y Series
| Capacity | Description | Unit | Lynx 2100LYA | Lynx 2100LYB | Lynx 2100LSYA | Lynx 2100LSYB | Lynx 2600Y | Lynx 2600SY |
| Swing over bed | mm (inch) | 600 (23.6) | 630 (24.8) | |||||
| Swing over saddle | mm (inch) | 400 (15.7) | 460 (18.1) | |||||
| Max. turning diameter | mm (inch) | 300 {236} (11.8 {9.3}) | 380 (15.0) | |||||
| Max. turning length | mm (inch) | 510 (20.1) | 610 (24.0) | |||||
| Chuck size | mm (inch) | 51 (2.0) | 65 (2.6) | 51 (2.0) | 65 (2.6) | 81 (3.2) | ||
| Travel | X-axis | mm (inch) | 205 (8.1) | 250 (9.8) | ||||
| Z-axis | mm (inch) | 560 (22.0) | 680 (26.8) | |||||
| Rapid traverse Rate X-axis | m/min(ipm) | 30 (1181.1) | 30 (1181.1) | |||||
| Rapid traverse RateZ-axis | m/min(ipm) | 36 (1417.3) | 30 (1181.1) | |||||
| Spindle | Spindle speed | r/min | 6000 | 4500 | 6000 | 4500 | 3500 | |
| Spindle nose | ASA | A2-5 | A2-6 | A2-5 | A2-6 | A2-8 | ||
| Spindle bearing diameter (Front) | mm (inch) | 90 (3.5) | 110 (4.3) | 90 (3.5) | 110 (4.3) | 130 (5.1) | ||
| Turret | No. of tool stations | ea | 12 {24positin index}* {16}* | |||||
| OD tool size | mm (inch) | 20 x 20 (0.75 x 0.75) | 25 x 25 (1.0 x 1.0) | |||||
| Turret Indexing time (1 station swivel | sec | 0.11 | 0.15 | |||||
| Power source | Electric power supply | kVA | 27.80 / 28.11 | 33.66 / 37.43 | 28.20 / 40.71 | 34.24 / 50.14 | ||
| Machine Dimensions | Length | mm (inch) | 2880 (113.4) | 3425 (134.8) | ||||
| Width | mm (inch) | 1711 (67.4) | 1920 (75.6) | |||||
| Height | mm (inch) | 1921 (75.6) | 2095 (82.5) | |||||
| Weight | kg (lb) | 3850 (8487.7) | 3900 (8597.9) | 4150 (9149.0) | 4200 (9259.3) | 5750 (12676.4) | 6000 (13227.5) | |
| Controller | CNC system | DN Solutions Fanuc i Plus, SIEMENS S828D | ||||||
*NOTE*The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA
