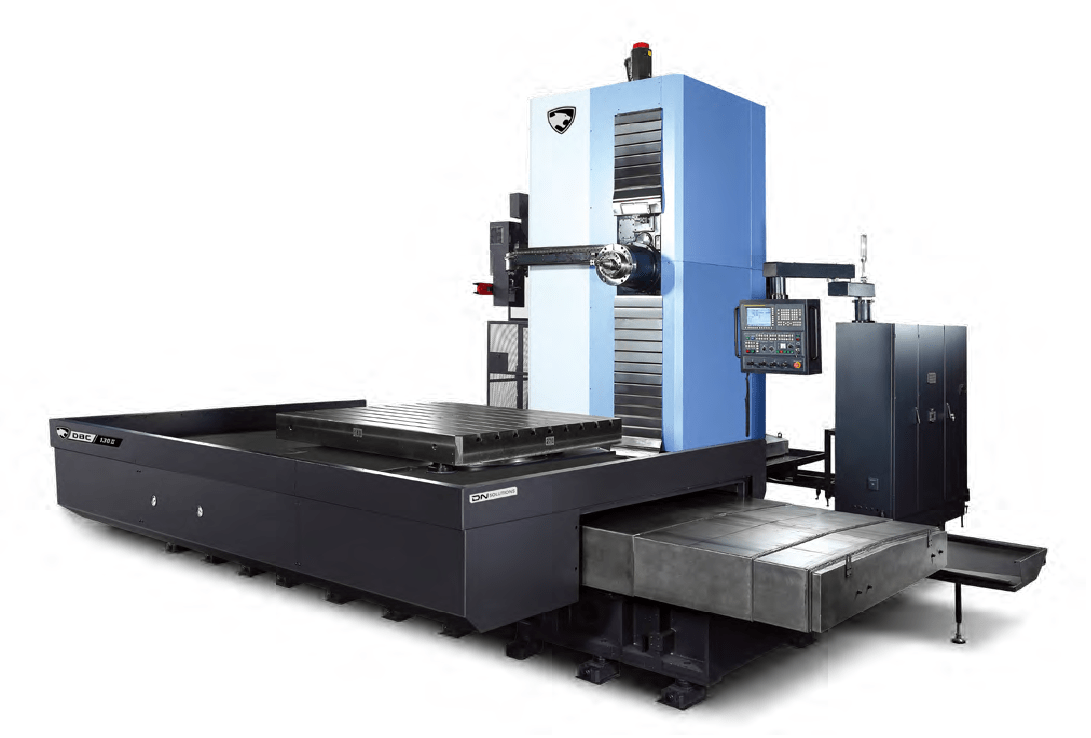

DN Solutions Boring Machine DBC Series

DN Solutions Boring Machine DBC Series

Travel

X
2000 – 4000

Y
1500 – 2500

Z
1200 – 2000

Category:

Technical Specifications

DN Solutions NC Boring Mill DBC Series

  Description Unit DBC 110S DBC 130S DBC 110II DBC 130II DBC 130LII DBC 160 DBC 160L DBC 250LII
Travel X-axis Travel mm (inch) 2000 (78.7) 2500 (98.4) 3000 (118.1) 4000(157.5) 5000 (196.9) 4000 (157.5)
Y-axis Travel mm (inch) 1500 (59.1) 2000 (78.7) 2500 (98.4) 3000 (118.1) 2500 (98.4)
Z-axis Travel mm (inch) 1200 (47.2) 1500 1600 2000 1600 2000
Distance from spindle nose to table top mm (inch) 0 ~ 1500 (0~59.1) 0 ~ 2000 0 ~ 2500 0 ~ 3000 0 ~ 2500
Distance from spindle nose to table center mm (inch) 550 ~ 1750 (21.7~2.9) 550 ~ 2050 700 ~ 2300 700 ~ 2700 850 ~ 2450 850 ~ 2850 770 ~2770
Feedrate Rapid Traverse X, Y,Z m/min(ipm) 12 12 10 10/8/2010 10/10/2010 7.5 / 10 / 10 10/8/2010
Max. Cutting Feedrate  X, Y, Z m/min(ipm) 1 ~ 6000 1 ~ 6000 1 ~ 4000
Table Table Size (Width xLength) mm(inch) 1400 x 1600 (55.1x63.0) 1400 x 1800 1600 x 1800 2000 x 2200 2000 × 2200 1600 x 1800
Load Capacity kg (lb) 7000 (15432.1) 8000 {10000} (17636.7 {22045.9}) - 13000 13000 - - 15000
Spindle Spindle speed r/min 3000 2500 4000 3000 2000 2000 6000
Boring spindle diameter mm (inch) 110 (4.3) 130 (5.1) 110 (4.3) 130 (5.1) 160 (6.3) 160 (6.3) -
ATC Tool Storage Capacity ea 40 {60 / 90 / 120}* 40 {60 / 90 / 120}*
Tool shank - MAS403 BT50 MAS403 BT50
Max. Tool Diameter mm (inch) ø130 / 250 / 400 / 600(1) (5.1 / 9.8 / 15.7 / 23.6) ø130 / 250 / 400 / 600(2) (5.1 / 9.8 / 15.7 / 23.6)
Max. Tool Length mm (inch) 600 (23.6) 600 (23.6)
Max. tool weight kg (lb) 30 (66.1) 30 (66.1)
Machine Size Machine Height mm (inch) 4200 (165.4) 4440 (174.8) 5070 5070 5570 6140 6650 5570
Length x Width mm (inch) 5540 x 5930 (218.1 x 233.5) 7630 x 6990 8970 x 7640 9970 x 8040 9000 X 7900 10000 x 8300 9970 x 8040
Machine Weight kg (lb) 29000 (63933.1) 30000 (66137.7) 36000 43000 48000 49000 51000 48000
CNC system Fanuc 32i Plus DN Solutions Fanuc i Plus F31iB Plus

*NOTE*The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA

Features

  • For heavier workpieces and higher processing quality, the design has been improved with a cast structure offering excellent stiffness. The machine performance has been further upgraded by structural analysis of the inner rib structure.
  • Upgraded with stable travel performance in heavy-duty machining by reducing servo load and increasing axial thrust.
  • The adoption of a servo-motor for tool magazine and carriage drive greatly reduces hydraulic system load of the entire machine. Machine has been improved by simplifying the structure to minimize the causes of failure.
  • Proper chip disposal is very important for productivity and environment protection. The DBC series provides various chip disposal systems designed to improve productivity and the working environment.
  • FANUC 31i PLUS / 32i PLUS / 0iF PLUS maximizes customer productivity and convenience.
