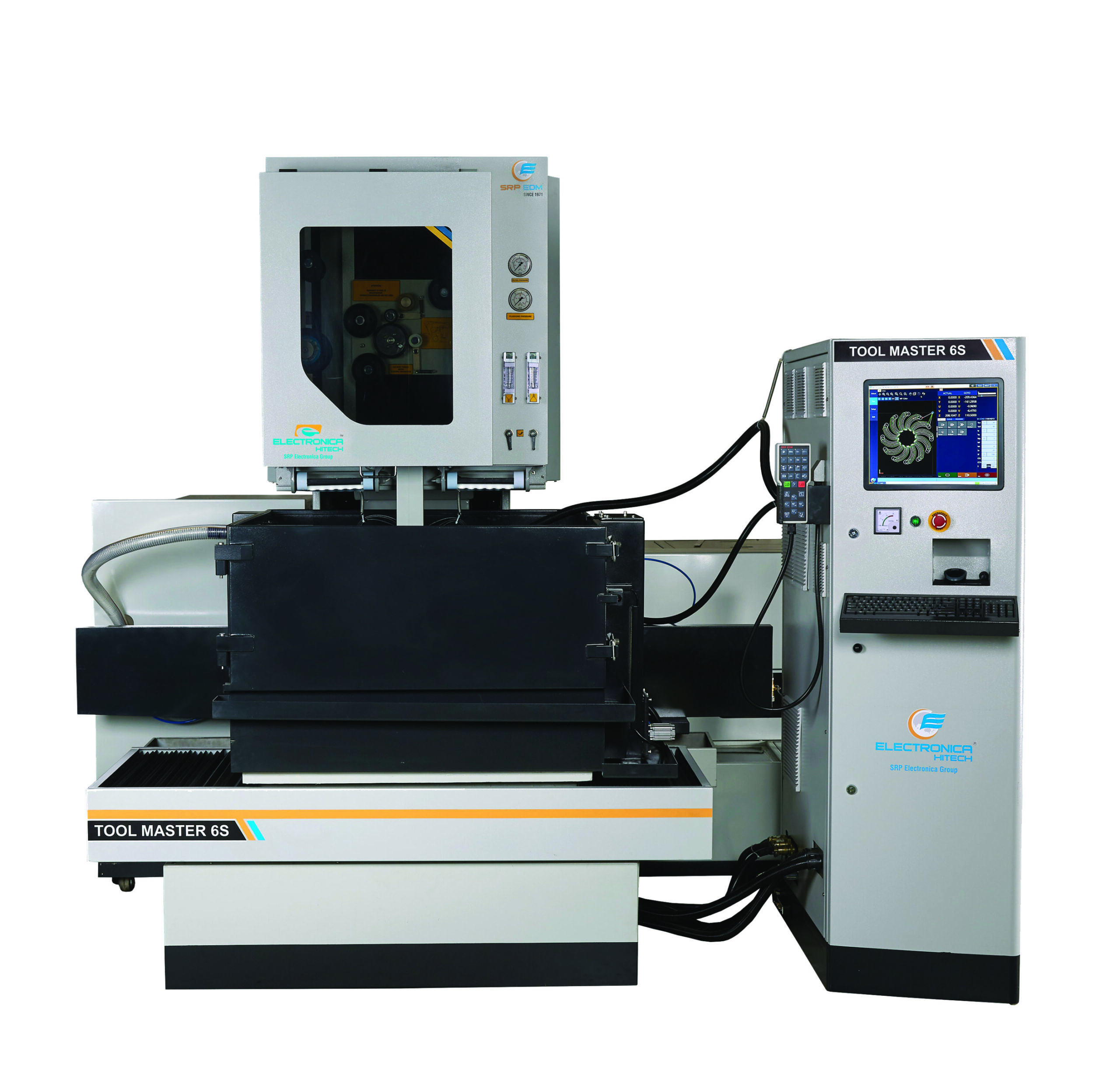

CNC Wire EDM Tool Master Series

Product description

For more details, please contact marketing@electronicahitech.com

Machine Specification	Unit	Tool Master 4 F	Tools Master 4S	Tool Master 5F/5S	Tool Master 6F/6S
Table size	mm	675 X 540	675 X 540	775 X 540	875 X 595
Work-tank Internal Dimensions	mm	850 X 750	850 X 750	975 X 775	1005 X 960
Main Table Travel X, Y	mm	400 X 300	400 X 300	500 X 300	600 X 400
Auxilliary Table U,V	mm	100 X 100	100 X 100	100 X 100	120 X 120
Z-axis Travel	mm	300	300	300	360
Maximum Taper Angle	(Deg/mm)	± 35/50	± 35/50	± 35/50	± 35/50
Job Admit	mm	295	295 (F) / 220 (S)	295 / 295 (F) /220 (S)	350 / 350 (F) /250 (S)
Maximum Work-piece weight	kg	500	500	500	1000
Machining Type	Flush	Flush	Submerge	Flush/Submerge	Flush/Submerge
Jog Speed X,Y	mm/min	1000	1000	1000	1000
Jog Speed U,V	mm/min	600	600	600	600
Jog speed Z	mm/min	600	600	600	600
Wire Threading	SAWT	SAWT	SAWT	SAWT	SAWT
Machine Foot Print	mm	2300 X2800	2500 X 2600	2300 X 2800 / 2700 X 2900	2300 x2900 / 2800 x 3150
Wire Diameter	mm	0.1 ~0.3	0.1 ~0.3	0.1 ~0.3	0.1 ~0.3
Wire Spool Size		DIN125, DIN160,	DIN125, DIN160,	DIN125, DIN160,	DIN125, DIN160,
		P3R, P5R	P3R, P5R	P3R, P5R	P3R, P5R
Cutting speed*	mm2 /min	220	220	220	220
Best surface Finish*	µRa	0.4	0.4	0.4	0.4
Machine overall Weight	kg.	4150	4410	4250 / 4510	4750 / 5400

Rugged T-base Structure

X axis on table & Y axis on column for better stability

High Precision LM guide ways

C 3 grade Japanese make ball screws for all axes

Granite isolation for worktable

Centralized lubrication system

Direct Coupled Japanese AC servo motors for all 5 axes

Front loading device

Hardened Work table
