Technical Specifications

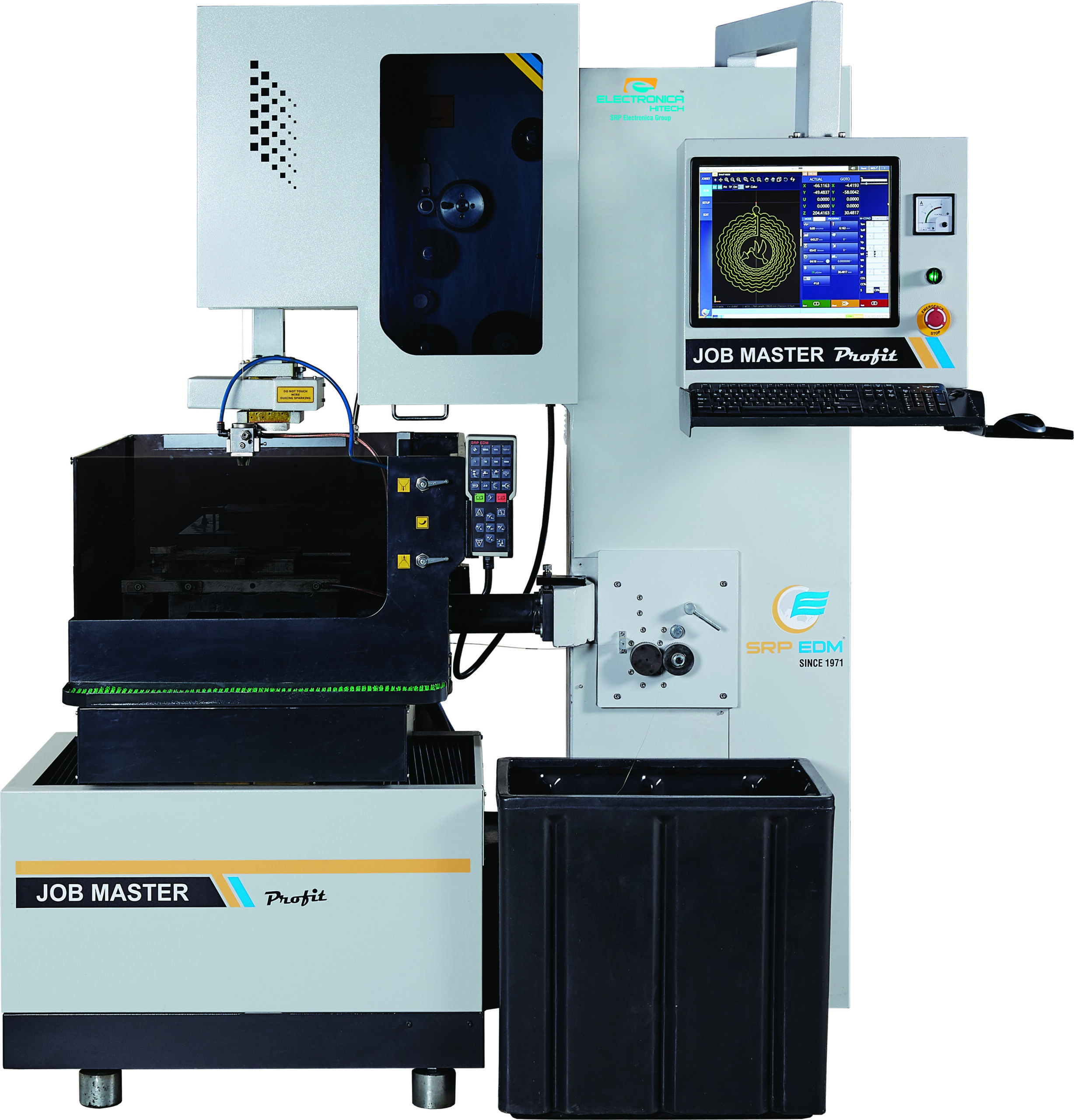

Electronica Hitech Job Master Wirecut EDM Profit
| Machine Specification | Unit | Job Master Profit |
| Table size | mm | 510 X 485 |
| Work-tank Internal Dimensions | mm | 780 X 750 X 230 |
| Main Table Travel X,Y | mm | 400 X 300 |
| Auxilliary Table Travel U,V | mm | 30 X 30 |
| Z-Axis Travel | mm | 250 |
| Maximum Taper Angle | Deg/mm | ±14° / 50 |
| Job Admit | mm | 245 |
| Maximum Work-piece weight | kg | 300 |
| Machine Foot Print | mm | 1600 X 2000 X 2200 |
| Wire Diameter | mm | 0.25 Standard, 0.15, 0.2 , 0.3 Optional |
| Cutting Speed* | mm2/min | 130 |
| Best Surface Finish* | μRa | 1 |
| Main table servo system Controlled axes | Closed loop AC Servo 5-Axis CNC |
*NOTE* The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.
