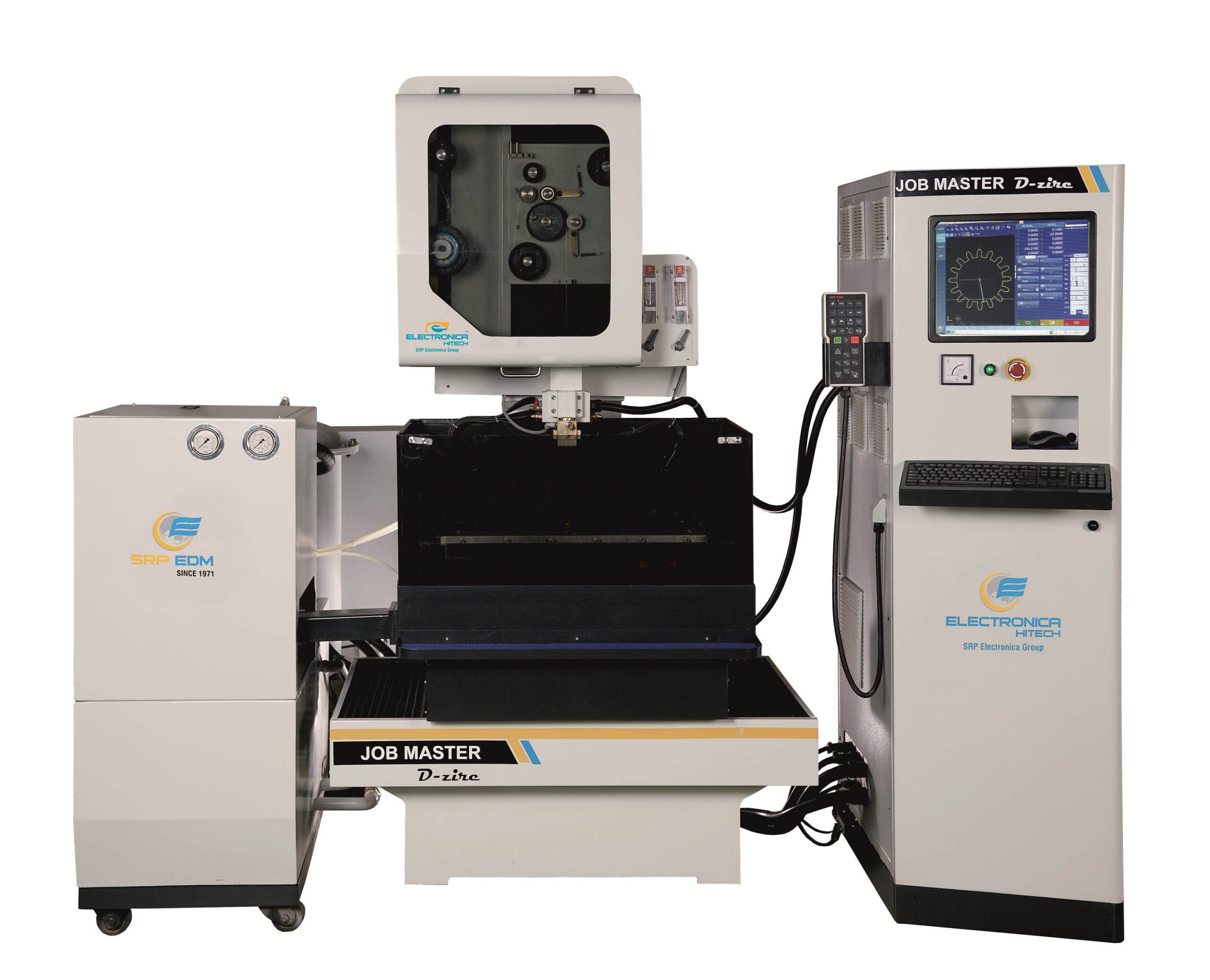

CNC Wirecut EDM Job Master Series

Technical Specifications

Particulars	Unit	Job Master D-zire	Job Master D-lite
Table Size	mm	635 x 475	635 x 475
Work-tank Internal Dimensions	mm	800 x 650	800 x 650
Main Table Travel X,Y	mm	400 x 300	400 x 300
Auxiliary Table travel U,V	mm	80 x 80	80 x 80
Z-Axis Travel	mm	250	250
Maximum Taper Angle	Deg/mm	± 30 / 50	± 30 / 50
Job Admit	mm	245	245
Maximum Work-piece weight	Kg	300	300
Machining Type		Flush	Flush
Jog Speed X,Y	mm/min	1000	1000
Jog Speed U,V	mm/min	600	600
Jog Speed Z	mm/min	600	600
Wire Threading		SAWT	SAWT
Machine Foot Print	mm	2350 x 2100	2350 x 2100
Wire Diameter	mm	0.15 ~ 0.3	0.15 ~ 0.3
Wire Spool Size		DIN 125, DIN 160	DIN 125, DIN 160
		P3R, P5R	P3R, P5R
Cutting Speed*	mm2/min	180	220
Best Surface Finish*	µRa	0.6	0.6
Machine Overall Weight	kg	3100	3100

*NOTE* The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.
