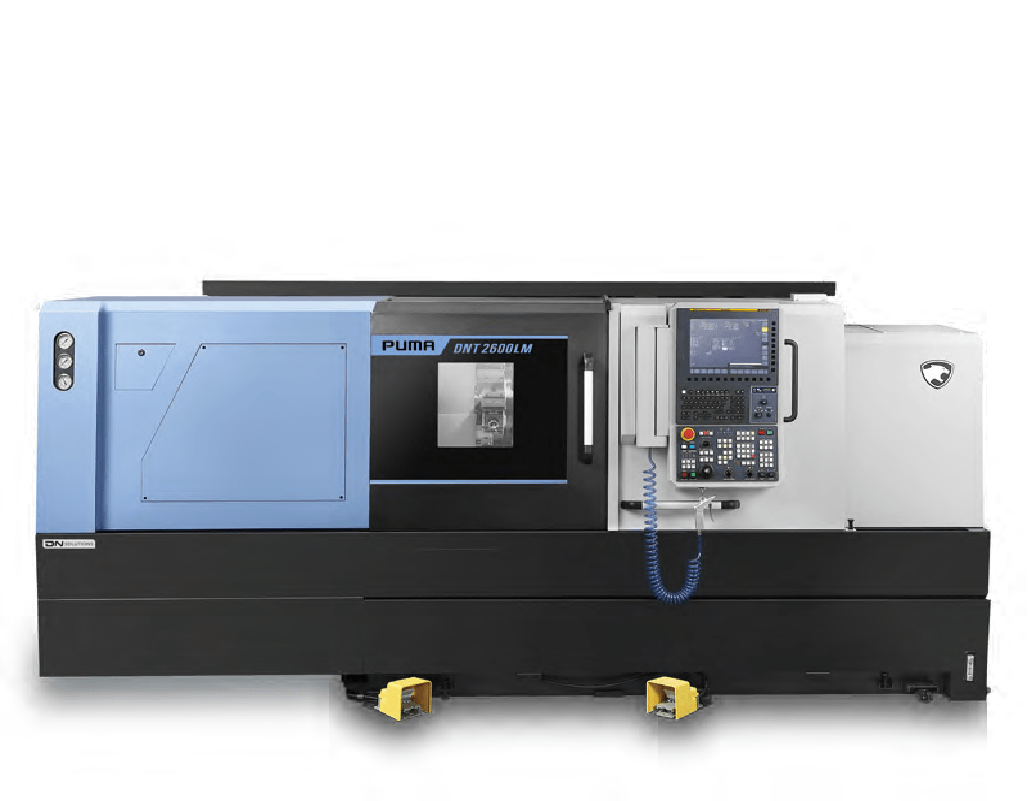

DN Solutions Horizontal Turning Center DNT Series
DN Solutions Horizontal Turning Center DNT Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specifications
DN Solutions PUMA DNT Series
| Description | Unit | PUMA DNT 2100 | PUMA DNT 2100M | PUMA DNT 2100B | PUMA DNT 2100MB | PUMA DNT 2600 [L] | PUMA DNT 2600M [LM] | |
| Capacity | Swing over bed | mm (inch) | 650 (25.6) | 650 (25.6) | 650 (25.6) | |||
| Swing over saddle | mm (inch) | 460 (18.1) | 460 (18.1) | 460 (18.1) | ||||
| Max. turning diameter | mm (inch) | 400 (15.7) | 320 (12.6) (BMT55P) 305 (12.0) (BMT65P) | 400 (15.7) | 320 (12.6) (BMT55P) 305 (12.0) (BMT65P) | 460 (18.1) | 380 (15.0) (BMT55P) 365 (14.4) (BMT65P) | |
| Max. turning length | mm (inch) | 562 (22.1) | 513 (20.2) (BMT55P) 506 (188.0) (BMT65P) | 550 (21.7) | 501 (19.7) (BMT55P) 494 (19.4) (BMT65P) | 658 (25.9) [1078 (42.4)] | 610 (24.0) [1030 (188.0)] (BMT55P) 603 (188.0) [1023 (40.3)] (BMT65P) | |
| Chuck size | mm (inch) | 8 {10} | 10 | 10 {12} | ||||
| Travel | X-axis | mm (inch) | 230 (9.1) | 230 (9.1) | 230 (9.1) | |||
| Z-axis | mm (inch) | 580 (22.8) | 580 (22.8) | 680 (26.8) [1100 (43.3)] | ||||
| Rapid traverse Rate X-axis | m/min(ipm) | 24 (944.9) | 24 (944.9) | 24 (944.9) | ||||
| Rapid traverse RateZ-axis | m/min(ipm) | 30 (1181.1) | 30 (1181.1) | 30 (1181.1) | ||||
| Spindle | Spindle speed | r/min | 4500 {High torque 4000, Built-in 5000} | 3500 | 3500 | |||
| Spindle nose | ASA | A2-6 | A2-8 | A2-8 | ||||
| Spindle bearing diameter (Front) | mm (inch) | 110 (4.3) | 130 (5.1) | 130 (5.1) | ||||
| Turret | No. of tool stations | ea | 12 | 12 | 10 {12} | 12 | 10 {12} | 12 |
| OD tool size | mm (inch) | 25 x 25 (1.0 x 1.0) | 25 x 25 (1.0 x 1.0) | 25 x 25 (1.0 x 1.0) | ||||
| Turret Indexing time (1 station swivel | sec | 0.15 | 0.15 | 0.15 | ||||
| Power Source | Power consumption | kVA | 31.14 | 31.14 | 34.53 | |||
| Machine Dimensions | Length | mm (inch) | 2945 (115.9) {Built-in 2760(108.7)} | 2945 (115.9) | 3355 (132.1) [3800 (149.6)] | |||
| Width | mm (inch) | 1664 (65.5) | 1664 (65.5) | 1729 (68.1) [1839 (72.4)] | ||||
| Height | mm (inch) | 1780 (70.1) | 1780 (70.1) | 1780 (70.1) | ||||
| Weight | kg (lb) | 3700 (8157.0) | 3800 (8377.4) | 3800 (8377.4) | 3900 (8597.9) | 4300 [4900] (9479.7 [10802.5]) | 4350 [4950] (9590.0 [10912.7]) | |
| Controller | CNC system | DN Solutions Fanuc i Plus | ||||||
Features
| Equipped with a 18.5kW high-power motor and machine structure, and further enhanced spindle and axis ball screw stiffness, |
| 2100/2600 series offers excellent cutting capability up to maximum turning diameter of Ø460mmand a maximum turning length of 658mm |
| The Series’ excellent reliability is based on the adoption of a wider support structure, more stable bed, low vibration/noise spindle, |
| a full slideway cover for preventing coolant leaks and chips from penetrating the machine. |
| The CNC tailstock as standard and EZ work enable the user to operate peripheral devices quickly and conveniently. |
| Adoption of grease type lubrication offers the users the convenience and low cost. |
