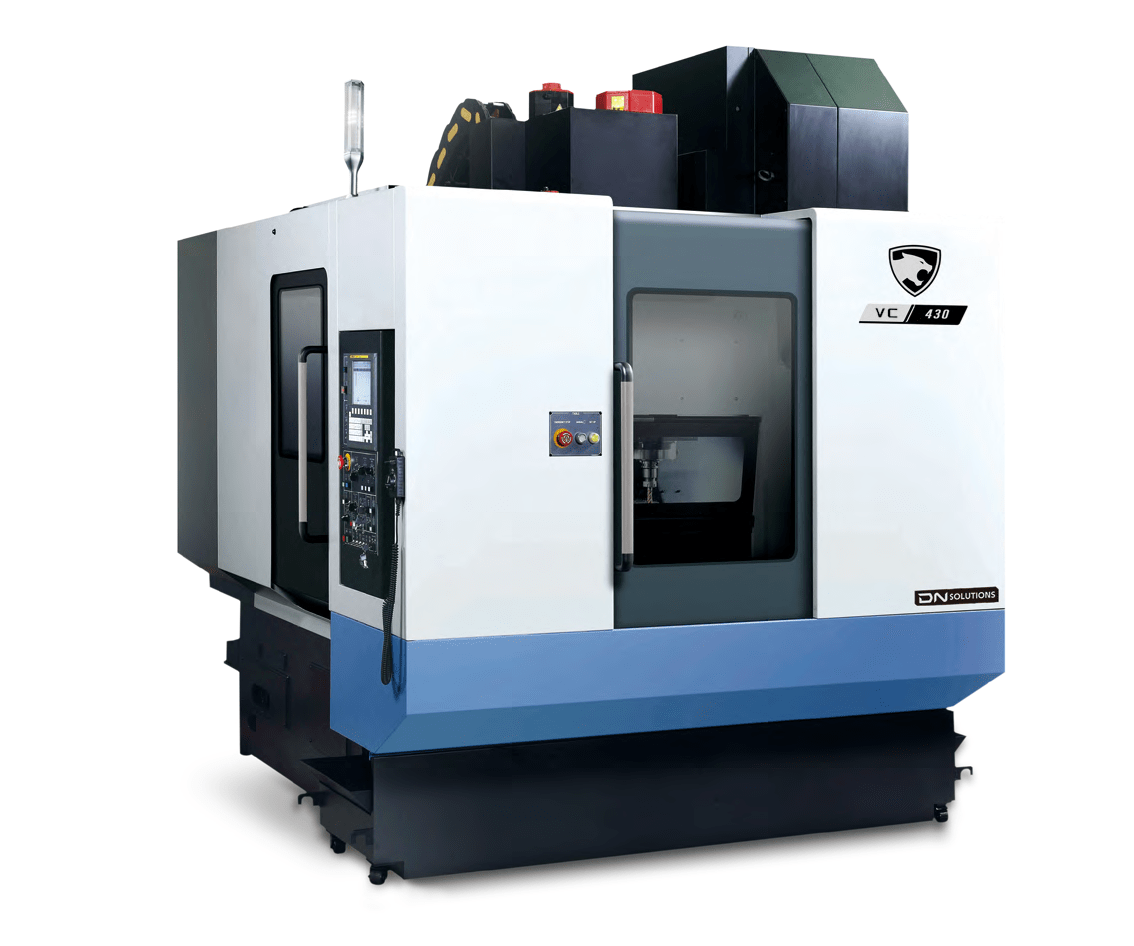

DN Solutions Vertical Machining Center VC Series

DN Solutions Vertical Machining Center VC Series

Note:

The Specifications and information above-mentioned may be changed without prior notice.

Categories: , ,

Technical Specifications

DN Solutions Vertical Machining Center VC Series

Description Unit VC 430 VC 510 VC 4000D-2SP VC 4000DA-2SP VC 3600/30
Travel X-axis mm (inch) 560 (22.0) 762 (30.0) 630 (24.8) 520 (20.5)
Y-axis mm (inch) 430 (16.9) 516 (20.3) 400 (15.7) 360 (14.2)
Z-axis mm (inch) 570 (22.4) 360 (14.2) 350 (13.8)
Distance from spindle nose to table top mm (inch) 150 (5.9) ~ 720 (28.3) 210 (8.3) ~ 780 (30.7) 320 (12.6) 150 ~ 500 (5.9 ~ 19.7)
Feed Rate Rapid feedrate (X, Y, Z) m/min (ipm) 40 / 40 / 36 (1574.8 / 1574.8 / 1417.3) 40 / 40 / 32 (1574.8 / 1574.8 / 1259.8) 48 / 48 / 48  ( 1889.8 /1889.8  /1889.8) 30 / 30 / 24 (1181.1 / 1181.1 / 944.9)
Cutting feed rate m/min (ipm) 18000 (708.7) 16000 (629.9) 24 (944.9) 12000 (472.4)
Table Pallet size mm (inch) 2-712 x 490 (2-28.0 x 19.3) 2-860 x 570 (2-33.9 x 22.4 inch) 2-800 x 535 (31.5 x 21.1) 2-790 x 300 (31.1 x 11.8) 2-650 x 375 (2-25.6 x 14.8)
Pallet loading capacity kg (lb) 2-300 (2-661.4) 2-350 (2-771.6) 2-400 (881.8) 2-200 (440.9) 2-200 (2-441)
Spindle Max spindle speed r/min 10000 {12000, 15000}* 10000 {6000, 12000, 15000}* 12000 12000 {18000}*
Spindle taper ISO #40 7/24 Taper HSK-A 63 ISO #30
Max. torque N·m (ft-lb) 117.7 {167.6, 117.8}* (86.9 {123.7, 86.9}) 117.7 {191.1, 167.6, 117.8}* (86.9 {141.0, 123.7, 86.9} 82.8 (61.1) 82.7(61.0) {11.8(8.7)}*
Automatic Tool Changer (ATC) Type of tool shank - MAS403 BT40 10 (22.0) BT 30
Tool storage capa ea 30 {40}* 2-24 14{21}*(Armless type) / 24(Cam type)
Power Source Electric power supply (rated capacity) kVA 40.2 (10000 r/min) 35.1 (12000 r/min) 39.4 (6000 r/min) 40.2 (10000 r/min) 35.1 (12000 r/min) 63.6 FANUC-19.8 {16.5}
Machine Dimensions Height (H) mm (inch) 3030 (119.3) 3130 (123.2) 3310 (130.3) 2552 (100.5) {2657(80.3)}
Length mm (inch) 2890 (113.8) 3260 (128.3) 6182 (243.4) 3630 (142.9)
Width mm (inch) 2200 (86.6) 3130 (123.2) 2232( 87.9) 1740 (68.5)
Weight kg (lb) 7800 (17195.8) 9200 (20282.2) 12000 (26455.1) 5200 (11463.9)
Control CNC system - DN Solutions Fanuc i Plus DN Solutions FANUC i Plus DN Solutions Fanuc i Plus



*NOTE*The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA

Features

  • High-rigidity cast structure is excellent for vibration absorption and minimizes deformation under heavy load.
  • The column moving design guarantees high accuracy even after a prolonged period of operation and minimizes footprint.
  • The dual table equipped with standard auto-indexing pallet enables stable positioning and improved productivity with minimized idle time.
  • Diverse optional features are available for customized requirements.
  • The high rigidity machine structure maintains stable accuracy for long periods even during heavy duty cutting.
  • The high speed spindle maintains accuracy during fine machining and also provides sufficient power for heavy duty cutting performance.
  • Servo-driven APC reduces pallet change time by about 30%.
  • Servo-driven ATC incorporating 14 tools as standard feature reduces tool change time by up to 11%.
  • The spindle design has been optimized by reducing acceleration and deceleration times by up to 30% to achieve even higher productivity.
  • Adoption of dual contact spindle as standard feature improves heavy duty machining performance.
  • 1620mm (63.8 inch) machine width minimizes footprint.
  • Auxiliary chip box (optional) effectively filters fine aluminum chips.
