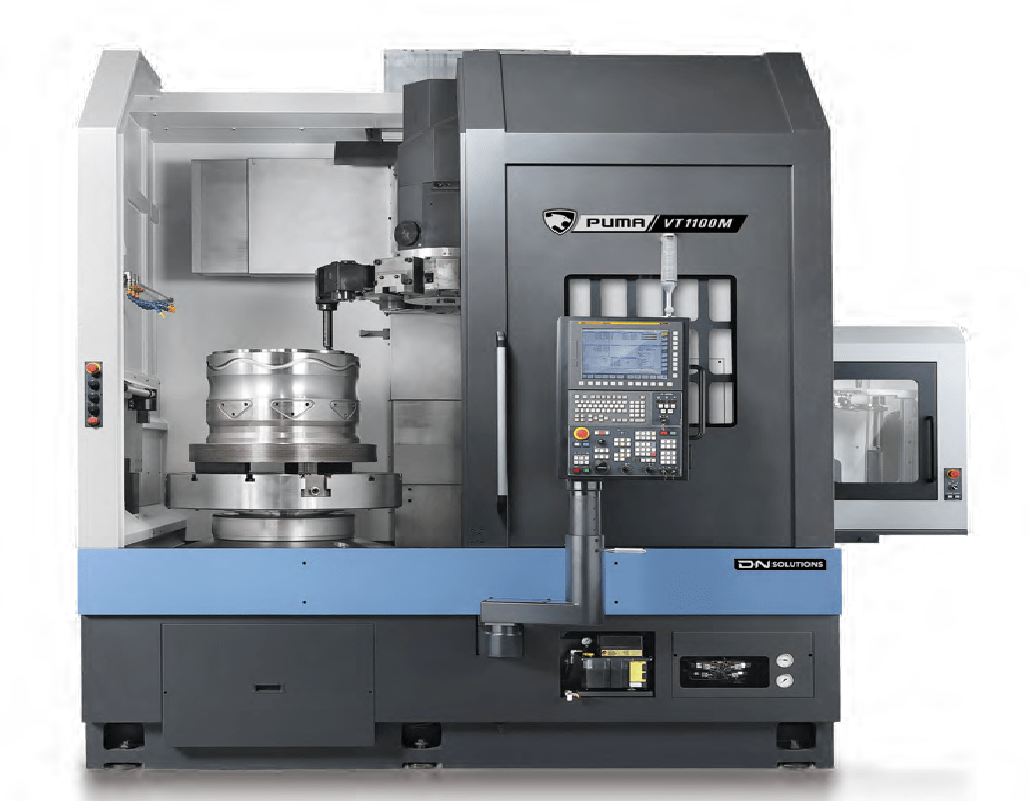

DN Solutions Vertical Turning Center PUMA VT Series
DN Solutions Vertical Turning Center PUMA VT Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specifications
DN Solutions PUMA VT Series
| Description | Unit | PUMA VT 900 | PUMA VT900-2SP | PUMA VT900M | PUMA VT900M-2SP | PUMA VT1100 | PUMA VT1100M | |
| Capacity | Swing over bed | mm (inch) | 1000 (39.4) | 1270 (50.0) | ||||
| Swing over saddle | mm (inch) | 700 (27.6) | 1000 (39.4) | |||||
| Recom. turning diameter | mm (inch) | 610 (24.0) | 800 (31.5) | |||||
| Max. turning diameter | mm (inch) | 900 (35.4) | 1100 (43.3) | |||||
| Max. turning height | mm (inch) | 801 (31.5) | 801 (31.5) | 809 (31.9) | 809 (31.9) | 960 (37.8) | ||
| Chuck size | mm (inch) | 610 (24.0) | 800 (31.5) | |||||
| Travel | X-axis | mm (inch) | 470 (18.5) | 580 (22.8) | ||||
| Z-axis | mm (inch) | 850 (33.5) | 1000 (39.4) | |||||
| Rapid Traverse Rate | X-axis | m/min | 20 | |||||
| Z-axis | m/min | 20 | ||||||
| Main Spindle | Spindle speed | r/min | 1800 | 850 | ||||
| Spindle nose | ASA | ISO 702-1 A2#15 | ISO 702-4-No15 | |||||
| Spindle bearing diameter (Front) | mm (inch) | 200 (7.9) | ||||||
| Spindle through hole | mm (inch) | 107 (4.2) | 100 (3.9) | |||||
| Main spindle indexing angle (C-axis) | deg | - | 360 (in 0.001) | - | 360 (in 0.001) | |||
| Turret | No. of tool stations | st | 12 | |||||
| OD tool size | mm (inch) | 32 (1.3) | ||||||
| Max. boring bar size | mm (inch) | ø80 (ø3.1) | ||||||
| Turret Indexing time (1 station swivel) | s | 2.0 | 1.6 | 2.2 | ||||
| Motor | Main spindle motor (FANUC) | kW (Hp) | 45 / 37 (60.3 / 49.6) (S3 60% / S1 Cont.) | 65 / 55 / 45 (87.2 / 73.8 / 60.3) (S6 25% / S6 40% / S1 Cont.) | ||||
| Main spindle motor (SIEMENS) | kW (Hp) | 45 / 41 | 55 / 44 | |||||
| Servo motor (FANUC) X/Z axis | kW (Hp) | 4.0 / 4.0 (5.4 / 5.4) | 4.0 / 7.0 (5.4 / 9.4) | |||||
| Servo motor motor(SIEMENS) X/Z axis | kW (Hp) | 3.3 / 4.29 (4.4 / 5.8) | 4.0 / 9.0 (5.4 / 12.1) | |||||
| Rotary tool spindle motor (FANUC) | kW (Hp) | - | 7.0 (9.4) | - | 11 (14.8) | |||
| Rotary tool spindle motor (SIEMENS) (S6 25% / S1 Cont.) | kW (Hp) | 14.3 / 7.5 (19.2 / 10.1) | 7.0 / 7.5 (9.4 / 10.1) | |||||
| Power source | Electric power supply (rated capacity) | kVA | 75 | 145 | 80 | 155 | 77.94 | |
| Machine Size | Height | mm (inch) | 3621 (142.6) | 4012 (158.0) | ||||
| Length | mm (inch) | 2130 (83.9) | 4270 (168.1) | 2130 (83.9) | 4270 (168.1) | 2850 (112.2) | ||
| Width | mm (inch) | 3050 (120.1) | 3305 (130.1) | |||||
| Weight | kg (lb) | 12500 (22557.4) | 25000 (55114.8) | 12500 (22557.4) | 25000 (55114.8) | 22000 (48501.0) | 22550 (49713.5) | |
| Controller | Standard | DOOSAN Fanuc i Plus | Fanuc 32i | |||||
| Option | Fanuc 32i | Fanuc 31i | Fanuc 32i | Fanuc 31i | DN Solutions Fanuc i Plus | |||
| SIEMENS 828D | SIEMENS 828D | SIEMENS 828D | ||||||
Features
| The turning capacity achieved 32″ of max. chuck size and 1100 mm of max. turning diameter. |
| In order to assure heavy duty machining and optimized chip flow, the machine base body is designed and streamlined. |
| The bed structure has been redesigned to facilitate the efficient disposal of high volumes of chips. In addition, the height of the operation panel can be adjusted for optimum convenience. |
| Fixed type pendants are also available to suit customers’ requirements |
| Its small foot print help you systemizing your manufacturing plan plot in your factory. |
| The highly rigid gearbox structure provides the highest power / torque in its class for heavy duty cutting and optimum performance. A variety of spindle specifications are vailable to suit customers’ diverse requirements. |
| The new servo motor turret increases indexing speed and accuracy. The M model uses BMT85P turret to provide excellent milling performance and reduced thermal error due to low heat generation design. |
| The wide hardened and ground box ways reduce vibration promoting better tool life and surface finishes. |
