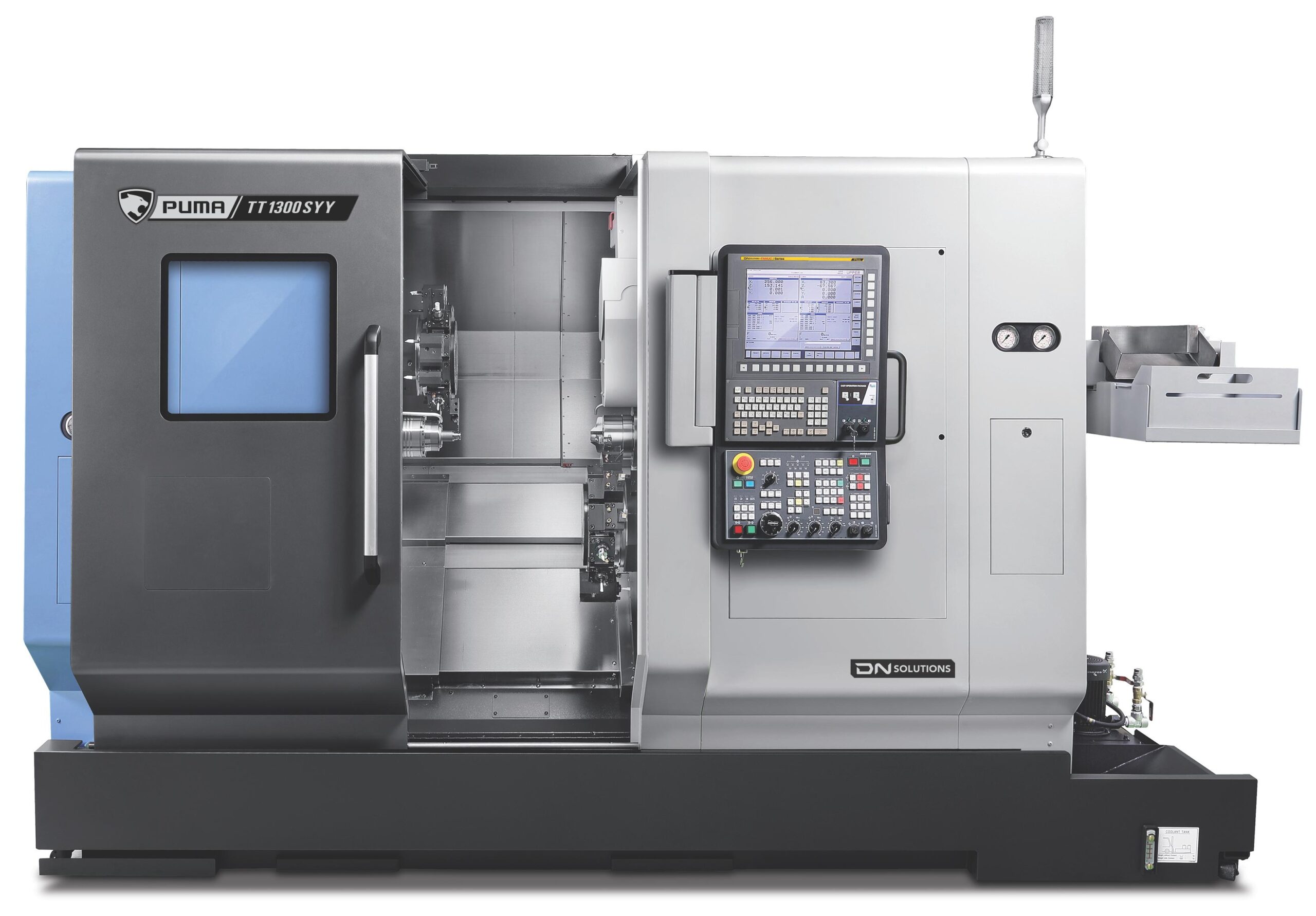

DN Solutions Horizontal Turning Center PUMA TT Series
DN Solutions Horizontal Turning Center PUMA TT Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specifications
DN Solutions PUMA TT Series
| Description | Unit | PUMA TT 2100SYY | PUMA TT 2100SYYB | PUMA TT 1300SY/SYY | PUMA TT 1300SY/SYY | PUMA TT2500MS | PUMA TT2500SY | |
| Capacity | Swing over bed | mm (inch) | 230 (9.1) | 175(6.9) | 800 (31.5) | |||
| Swing over saddle | mm (inch) | 230 (9.1) | 175 (6.9) | 620 (24.4) | ||||
| Max. turning diameter | mm (inch) | Upper turret: 230 (9.1) lLower turret: 230 (9.1) | "Upper turret: 230 (9.1) lLower turret: 230 (9.1)" | 390 (15.4) | ||||
| Max. turning length | mm (inch) | 230 (9.1) | 230 (9.1) | 350 (13.8) | ||||
| Chuck size | mm (inch) | 8/8 | 10/8 | 5/5 | 6/5 | 81 (3.2) | ||
| Travel | X-axis | mm (inch) | 165 (6.5) | TT 1300SY: 135/150 (5.3/5.9) PUMA TT1300SYY: 135/135 (5.3/5.3) | 255 (10.0) | |||
| Z-axis | mm (inch) | 700 (27.6) | 700 (27.6) | 800 (31.5) | ||||
| Rapid traverse Rate X-axis | m/min(ipm) | 30 (1181.1) | 30 (1181.1) | 190 (7.5) | ||||
| Rapid traverse RateZ-axis | m/min(ipm) | 40 (1574.8) | 40 (1574.8) | 900 (35.4) | ||||
| Spindle | Spindle speed | r/min | 5000 | 3500 | 6000 | 4000 | ||
| Spindle nose | ASA | A2 #6 | A2 #8 | A2 #5 | A2-8 | |||
| Spindle bearing diameter (Front) | mm (inch) | 110 (4.3) | 130 (5.1) | 80 (3.1) | 90 (3.5) | 130 (5.1) | ||
| Turret | No. of tool stations | ea | 10 {12}* | 10 {12}* | 12 | |||
| OD tool size | mm (inch) | 24 + 24 position | 24 + 24 position | 25 x 25 (1.0 x 1.0) | ||||
| Turret Indexing time (1 station swivel | sec | 0.12 | 0.12 | 0.2 | ||||
| Machine Dimensions | Length | mm (inch) | 3880 (152.8) | 3940 (155.1) | 3405 (134.1) | 3405 (134.1) | 4220 x 2360 (166 x 87) | |
| Width | mm (inch) | 2360 (92.9) | 2360 (92.9) | - | - | |||
| Height | mm (inch) | 2250 (88.6) | 2250 (88.6) | 2340 (92) | 2490 (98) | |||
| Weight | kg (lb) | 9500 (20943.6) | 9600 (21164.1) | 8000 (17636.7) | 8000 (17636.7) | 12700 (27998.3) | ||
| Controller | CNC system | DN Solutions Fanuc i Plus {Fanuc 31i}* | DN Solutions Fanuc i Plus {Fanuc 31i} * | |||||
Features
| The left and right spindles and the upper and lower turrets operate independently to double the machine’s productivity. |
| All guide ways are wide wraparound rectangular type for unsurpassed long term rigidity and accuracy. |
| The left and right spindles are equipped with independent parts catcher and unloading/conveyor systems for fully-automated operation. |
| Continuous process accuracy, Shorten setting time, Optimal distribution of cycle and Automated works. |
| Featuring stronger and faster turrets; upgraded servo motors for faster and more accurate tool rotation; and a stabilized structure for higher productivity and heavier-cutting capabilities. |
