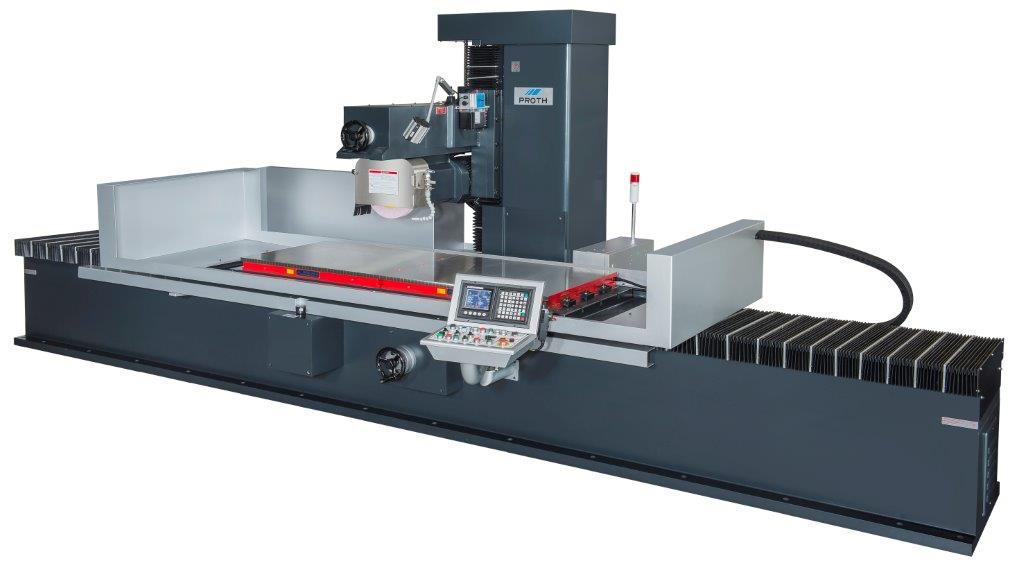

Proth Overarm Grinder PSGO Series
Proth Overarm Grinder PSGO Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specifications
Proth PSGO Series
| SPECIFICATION / MODELS | PSGO | |||||
| Unit | 60150AHR | 75150AHR | 75220AHR | 75300AHR | ||
| General Capacity | Max. Travel (Cross x Longitudinal) | mm | 660 x 1650 | 810 x 1650 | 810 x 2350 | 810 x 3150 |
| Spindle Center Height from Table | mm | 700 | ||||
| Max. Height from Table Top to Bottom of Standard Wheel | mm | 520 | ||||
| Grinding Surface of Table | mm | 600 x 1500 | 750 x 1500 | 750 x 2200 | 750 x 3000 | |
| Longitudinal Movement | Hydraulic Table Speed | m/min | '1-25 | |||
| Cross Movement | Intermittent Cross Feed-Approx. (Electro-Mechanical) | mm/feed | 0.1-15 | |||
| Continuous Cross Feed-Approx. (Electro-mechanical) (50/60Hz) | mm/min | 2000 / 2400 | ||||
| Hand Feed Per Revolution | mm | 5 | ||||
| Hand Feed Per Division | mm | 0.02 | ||||
| Vertical Downfeed | Rapid Traverse Approx.(option) | mm/min | 240 | |||
| Hand Feed Per Revolution | mm | 0.25 | ||||
| Hand Feed Per Division | mm | 0.0025 | ||||
| Grinding Wheel | Dimension(O.D x W x I.D) | mm | 355 x 50 x 127 | |||
| Spindle Speed(50/60Hz) | rpm | 1500 / 1800 | ||||
| Motor | Spindle Motor | 7.5(11)/10(15)HP | ||||
| Hydraulic Motor | 5.6/7.5HP | |||||
| Weight | Net Weight | kg | 9350 | 11000 | 12500 | 14400 |
| Gross Weight | kg | 10800 | 12300 | 14000 | 16000 | |
| Packing Size | Dimension (L x W x H) | m | 5.1 x 2.5 x 2.6 | 5.1 x 2.5 x 2.6 | 6.6 x 2.5 x 2.6 | 8.4 x 2.5 x 2.6 |
Features
| The surfaces of longitudinal table ways are all hand scraped to getting perfect contact pattern and to ensure very high accuracy. |
| Longitudinal table ways are designed to have slide surfaces longer than that of the working surface and equal to the table length to keep the table free from torsion and deflection(except PSGS series) |
