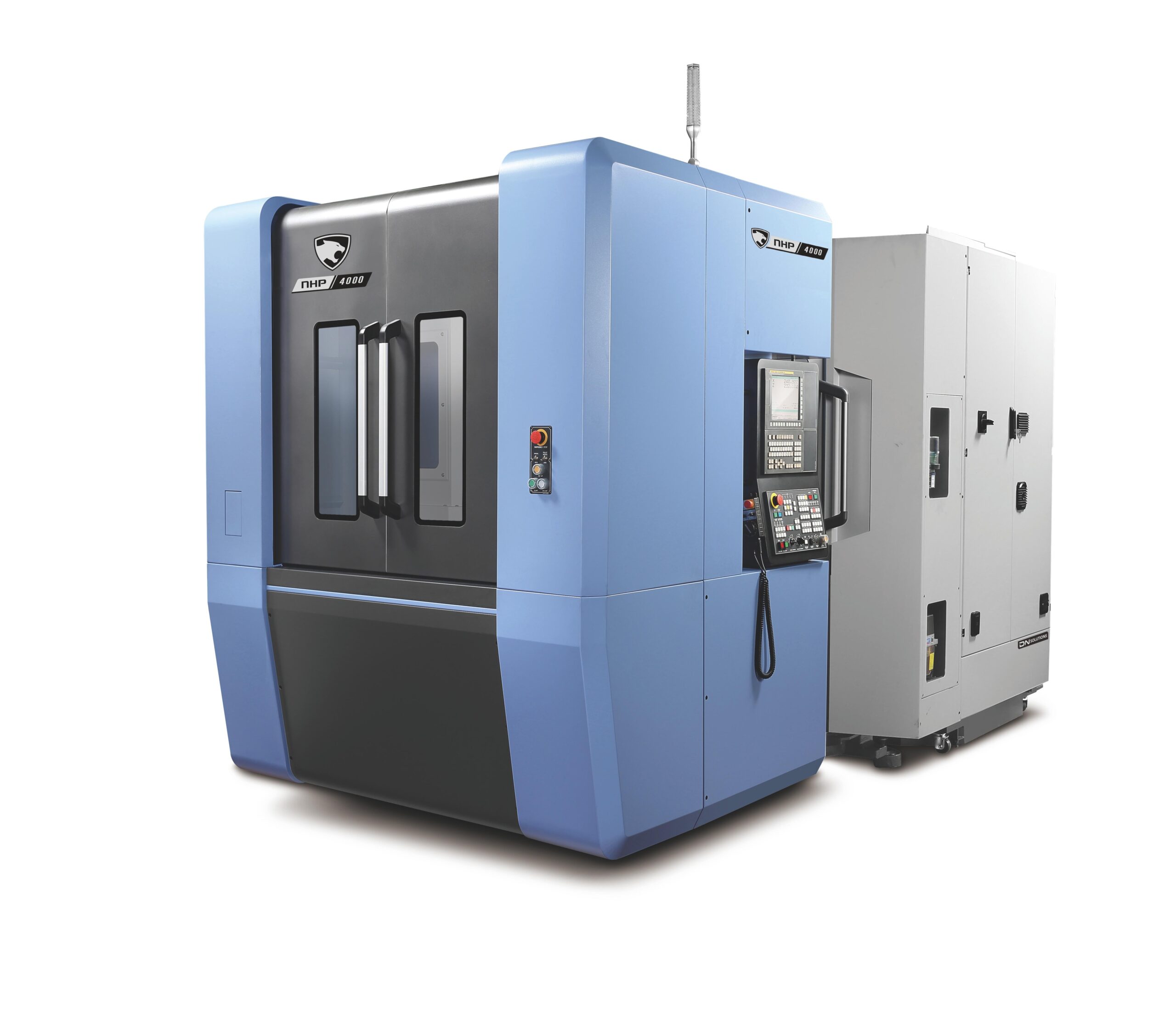

DN Solutions Horizontal Machining Center NHP Series
DN Solutions Horizontal Machining Center NHP Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specipications
DN Solutions NHP Series
| Description | Unit | NHP 4000 | NHP 5000 | NHP 5000S | NHP5500/S | NHP6300 | NHP8000 | ||
| Cutting Capacity | X-axis | mm (inch) | 560 (22.0) | 730 (28.7) | 800 (31.5) | 1050 (41.3) | 1400 (55.1) | ||
| Y-axis | mm (inch) | 640 (25.2) | 730 (28.7) | 750(29.5) | 900(35.4) | 1200(47.2) | |||
| Z-axis | mm (inch) | 660 (26.0) | 880 (34.6) | 850(33.5) | 1000 (39.4) | 1370(53.9) | |||
| Distance from spindle nose to table center | mm (inch) | 80 ~ 720 (3.1 ~ 28.3) | 80 ~ 810 (3.1~31.9) | 130 ~860 (5.1 ~ 35.4) | 100- 950 (3.9 -37.4) | 100- 1100 (3.9- 43.3) | 150 -1520 (5.9 -59.8) | ||
| Distance from spindle center to table top | mm (inch) | 80 ~740 (3.1 ~ 29.1) | 100 ~ 980 (3.9 ~38.6) | 75-825(3.0-32.5) | 75-975(3.0-38.4) | 75-1275(3.0-50.2) | |||
| Feed Rate | X-axis | mm (inch) | 60 (2362.2) | 60 | 50 | ||||
| Y-axis | mm (inch) | 60 (2362.2) | 60 | 50 | |||||
| Z-axis | m/min | 60 (2362.2) | 60 | 50 | |||||
| Table | Acc./Dec. | G | 1 / 1 / 1 | 0.9 / 0.8 / 0.8 | - | - | - | ||
| Workpiece size | mm (inch) | ø630 x 900h (ø24.8 x 35.4h) | ø800 x 1000h ø31.5 x 39.4h) | Ø 850 x 1100 (Ø 33.5 / 43.3) | Ø 1050 x 1350 (Ø 41.3 / 53.1) | Ø 1450 x 1550 (Ø 57.1 / 61) | |||
| Pallet size | mm (inch) | 400 x 400 (15.7 x 15.7) | 500 x 500 (19.7 x 19.7) | 500 x 600 (19.7 x 19.7) | 500 x 500 (19.7 x 19.7) | 630 x 630 (24.8 x 24.8) | 800 x 800 (31.5 x 31.5) | ||
| Spindle | Max spindle speed | r/min | 15000 (20000)* | 10000 {6000,15000}* | |||||
| Taper specifications | ISO #40 | ISO #50, 7/24 TAPER | |||||||
| Max. torque | N·m (ft-lb) | 230 (169.7) 303, 221 (223.6, 163.1)* | 600{809,398}(442.8 {597.0,293.7})* | ||||||
| Auto Pallet Changer (APC) | Tool storage capa. | ea | 40 (60, 80, 120, 171, 275)* | {90 / 120 / 150}* | |||||
| Automatic Tool Changer (ATC) | Tool shank type | Tool shank | - | BT 40 (CAT 40 / DIN / HSK 63A)* | BT50 {CAT50 / DIN50 / HSK-A100}* | ||||
| Pull stud | PS806 (Modified DIN,DIN 69872 #40) | - | - | - | |||||
| Tool change time (Tool-to-tool) | sec | 0.9 | 2.5 | ||||||
| Max. tool weight | kg (lb) | 12 (26.5) | 25 (55.1) (40 / 60 tools), 30 (66.1) (90 - 376 tools) | ||||||
| Tank capacity | Coolant tank capacity | L (gal) | 570 (150.6) (760 (200.8)) | 825 | 925 | ||||
| Machine Dimensions | Height | mm (inch) | 2690 (105.9) | 2880 (113.4) | 2880 (113.4) | 3330 (131.1) | 3495 (137.6) | 3803 (149.7) | |
| Length (/w Chip Conveyor) | mm (inch) | 4950 (194.9) | 5450 (214.6) | 4600 (181.1) | 5940 (233.9) | 6520 (256.7) | 7878 (310.2) | ||
| Width | mm (inch) | 2300 (90.6) | 2680 (105.5) | 2680 (105.5) | 3670 (144.5) | 3930 (154.7) | 4375 (172.2) | ||
| Weight | kg (lb) | 9700 (21384.5) | 11500 (25352.8) | 11500 (25352.8) | 17000 (37478.0) | 18000 (39682.6) | 27000 (59523.9) | ||
Features
| The high rigidity one piece bed is ideal for heavy-duty machining. |
| NHP machines’ rapid rates have been increased through the adoption of a high-speed axis drive system |
| Servo-driven automatic tool changers (ATC) and automatic pallet changers (APC) increase productivity and improve process reliability. |
| A range of new user-friendly features and functions have been introduced to make operators’ lives easier and more productive |
| The high-speed spindle minimises vibration and thermal growth whilst offering the fastest acceleration and deceleration rates, guaranteeing superior cutting performance compared to the competition. |
| The NHP Series realizes excellent machining performance thanks to its improved structure and comprehensive tooling system. |
| Fanuc 31i/32i Plus maximizes customer productivity and convenience. |
