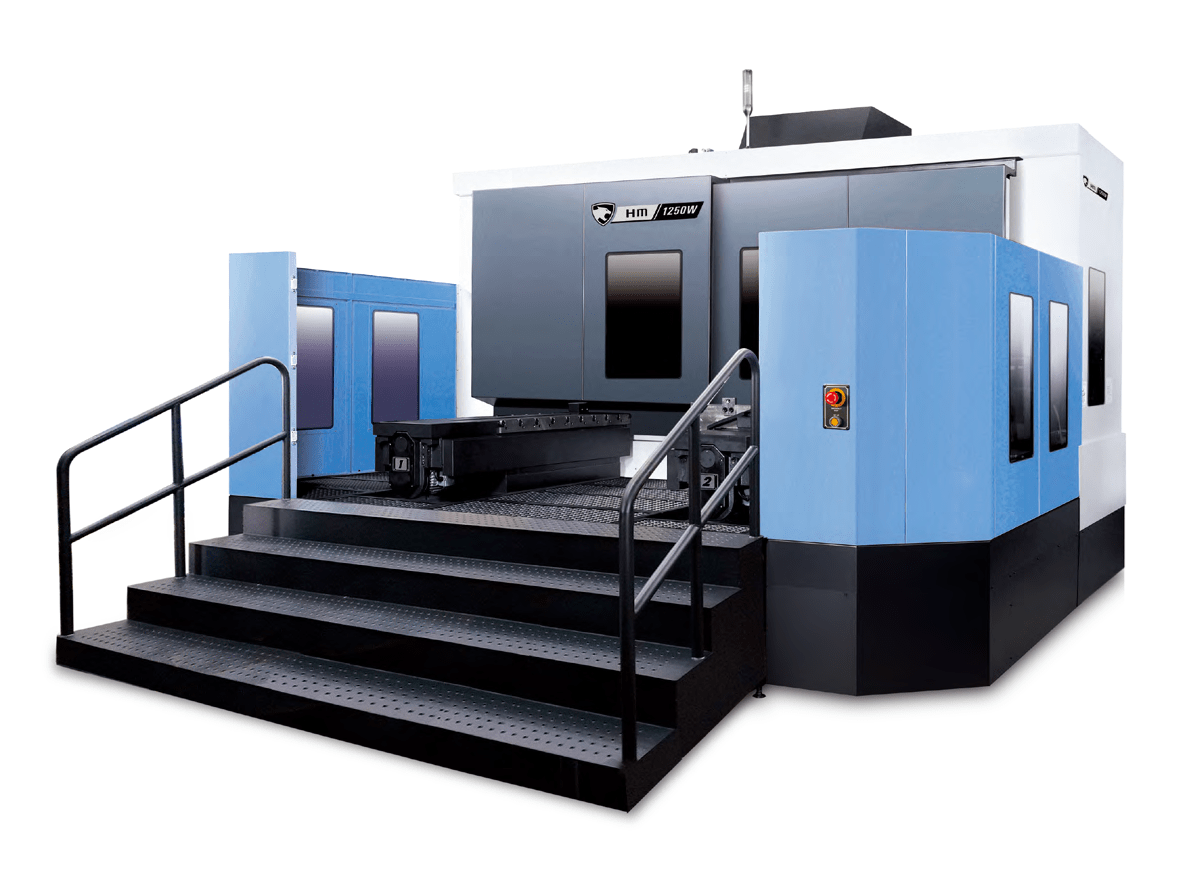

DN Solutions Horizontal Machining Center HM Series
DN Solutions Horizontal Machining Center HM Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specipications
DN Solutions HM Series
| Description | Unit | HM 1000 | HM 1250 | HM 1250W | |
| Travels | X-axis | mm (inch) | 2100 (82.7) | ||
| Y-axis | mm (inch) | 1250 (49.2) | 1500 (59.1) | 1400 (55.1) | |
| Z-axis | mm (inch) | 1250 (49.2) | 1500 (59.1) | 1400 (55.1) | |
| W-axis | mm (inch) | - | - | 300 (11.8) | |
| Table | Distance from table top to spindle nose | mm (inch) | 75 ~ 1325 (3.0 ~ 52.2) | 50 ~ 1550 (2.0 ~ 61.0) | 50 ~ 1450 (2.0 ~ 57.1) |
| Table size | mm (inch) | 1000 x 1000 {1250 x 1000} (39.4 x 39.4 {49.2 x 39.4}) | 1250 x 1250 {1250 x 1000} (49.2 x 49.2 {49.2 x 39.4}) | ||
| Loading capacity | kg (lb) | 3000 {5000} (6613.8 {11023.0}) | 5000 (11023.0) | ||
| Max. workpiece size (Ø x H) | mm (inch) | 2000 X 1475 (78.7 X 58.1) | |||
| Spindle | Max. spindle speed | r/min | 6000 {6000 / 8000} | 6000 {6000 / 8000} | 3000 |
| Taper specifications | - | ISO #50, 7/24 | |||
| Max. spindle torque | N·m (ft-lb) | 1989.4 {3687 / 1410} (1468.2 {2721.0 / 1040.6}) | 1910 (1409.6) | ||
| Feed Rate | Rapid traverse rate (X / Y / Z / W) | mm/min (ipm) | 24 / 24 / 24 (944.9 / 944.9 / 944.9) | 24 / 24 / 24 / 6 (944.9 / 944.9 / 944.9 / 236.2) | |
| Cutting feedrate | mm/min (ipm) | 12000 (472.4) | |||
| Automatic Tool Changer (ATC) | Type of tool shank | BT / CAT / DIN 50 | |||
| Tool storage capacity | ea | 60 {90 / 120 / 196 / 256 / 316} | |||
| Max. tool diameter | mm (inch) | 130 (300) (5.1(11.8)) | |||
| Electric power | kW (Hp) | 71 {82, 68.5} | 90 | ||
Features
| High torque gearbox spindle,box-type guideways, and high rigidity cast structure achieves high productivity. |
| A wide variety of large workpieces can be handled due to the machine’s large capacity and optional W axis for long boring applications. |
| The shuttle-type pallet changer satisfies the needs for longterm operation and automation. |
| Designed for for large workpieces requiring heavy duty cutting performance |
| High torque spindle, dual contact tool system, and spindle cooling system adopted as standard realize high stability and reliability. |
