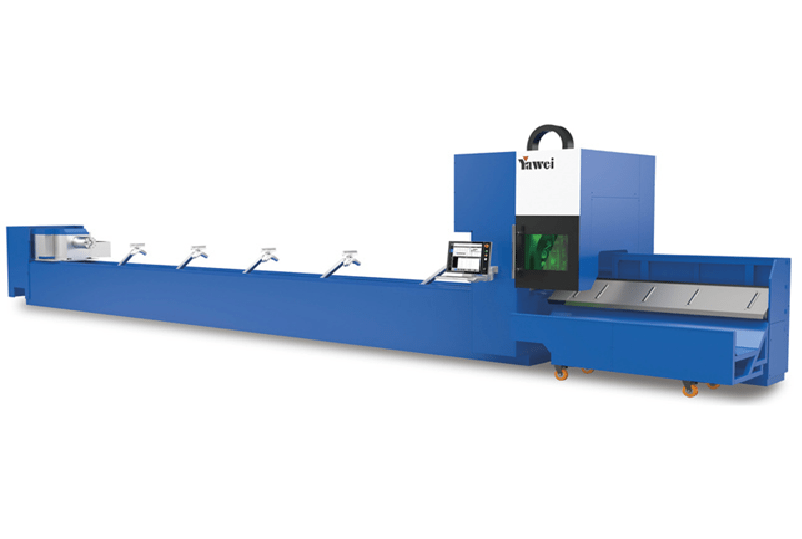

Yawei Tube Laser Cutting Machine YTF Series

Yawei Tube Laser Cutting Machine YTF Series

Categories: ,

Product description

For more details, please contact marketing@electronicahitech.com

Technical Specifications

Yawei Tube Laser Cutting Machine YTF Series

Model  Unit YTF-6020 YTF-6025 YTF-6035 YTF-6045 YTF-9020 YTF-9025 YTF-9035 YTF-9045 YTF-12020 YTF-12025 YTF-12035 YTF-12045
Processing Range mm φ20~φ220 φ20~φ254 φ20~φ350 φ20~φ430 φ20~φ220 φ20~φ254 φ20~φ350 φ20~φ430 φ20~φ220 φ20~φ254 φ20~φ350 φ20~φ430
Y-Axis Stroke mm 6800 6800 6800 6800 9800 9800 9800 9800 12800 12800 12800 12800
X-Axis Stroke mm 200 250 400 400 200 250 400 400 200 250 400 400
Z-Axis Stroke mm 240 240 360 360 240 240 360 360 240 240 360 360
A,B Axis Stroke mm Infinite rotation Infinite rotation Infinite rotation Infinite rotation Infinite rotation Infinite rotation Infinite rotation Infinite rotation Infinite rotation Infinite rotation Infinite rotation Infinite rotation
X/Y Axis Max Speed m/min 120 120 80 80/60 120 120 80 80/60 120 120 80 80/60
A/B Axis Max Speed m/min 120 120 80 60 120 120 80 60 120 120 80 60
Positioning Accuracy mm ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05
Repeat Positionin Accuracy mm ±0.03 ±0.03 ±0.03 ±0.03 ±0.03 ±0.03 ±0.03 ±0.03 ±0.03 ±0.03 ±0.03 ±0.03
Whole machine weight kg 8000 8000 10000 10500 9500 9500 11500 12000 11500 11500 13500 13500
Blanking length mm 3000 3000 3000 3000 3000 3000 3000 3000 5000 5000 5000 5000
Overall dimension (LxWxH) 13000 x 5000 x 3000 13000 x 5000 x 3000 13000 x 5000 x 3000 13000 x 5000 x 3000 16000 x 5000 x 3000 16000 x 5000 x 3000 16000 x 5000 x 3000 16000 x 5000 x 3000 21000 x 5000 x 3000 21000 x 5000 x 3000 21000 x 5000 x 3000 21000 x 5000 x 3000

Features

Open gantry double drive, single table structure, stable performance
Support upstream data interaction,real-time control of production schedule
Servo follow-up cutting, customizable cutting length
