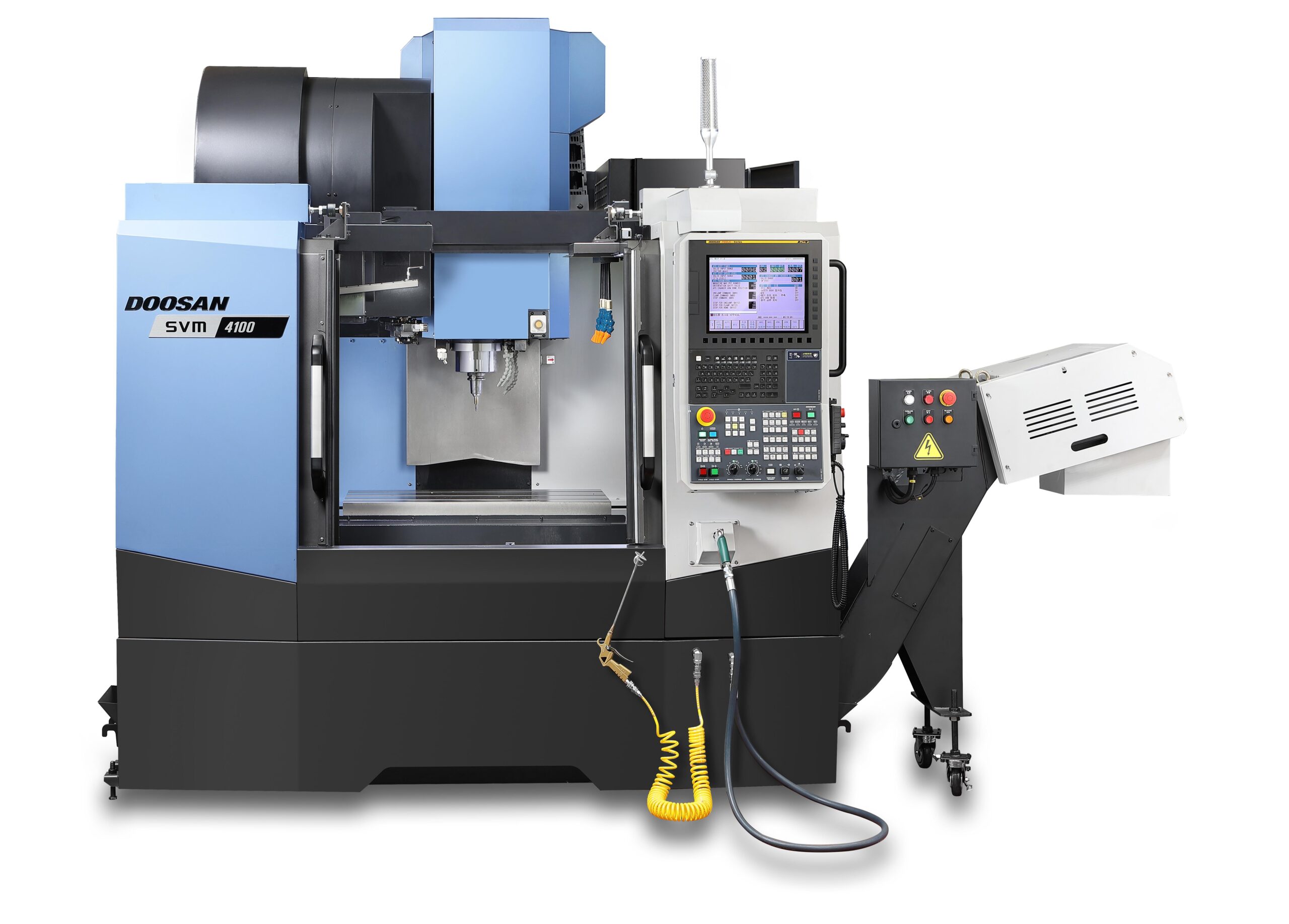

DN Solutions Vertical Machining Center SVM Series

DN Solutions Vertical Machining Center SVM Series

Note:

The Specifications and information above-mentioned may be changed without prior notice.

Categories: , ,

Technical Specifications

DN Solutions Vertical Machining Center SVM Series

Description Unit SVM 4100 SVM 5100L SVM 4100i
Travel X-axis mm (inch) 770 (30.3) 1270 (50.0) 770 (30.3)
Y-axis mm (inch) 410 (16.1) 510 (20.1) 410 (16.1)
Z-axis mm (inch) 510 (20.1) 510 (20.1) 510 (20.1)
Distance from spindle nose to table top mm (inch) 100 - 610 (3.9 - 24.0) 100 - 610 (3.9 - 24.0) 100 - 610 (3.9 - 24.0)
Table Table size mm (inch) 920 X 410(36.2 x 16.1) 1320 X 510 (52.0 x 20.1) 920 x 410 (36.2x16.1)
Table loading capacity kg(lb) 600(1322.8) 800 (1763.7) 600(1322.8)
Table surface type mm T-SLOT (3-125 x 18H8) T-SLOT (4-125 x 18H8) T-SLOT (3-125 x 18H8)
Spindle Max spindle speed r/min 12000 12000 12000
Taper specifications ISO #40 ISO #40 ISO #40
Max. torque N·m (ft-lb) 95.5 (70.5) 95.5 (70.5) 95.5 (70.5)
Max. spindle power (S3/continuous) kW (Hp) 18.5/5.5 (24.8/7.4) 18.5/5.5 (24.8/7.4) 18.5/5.5 (24.8/7.4)
Feedrates Rapid Traverse Rate X axis m/min (ipm) 36 (1417.3) 36 (1417.3) 30 (1181.1)
Y axis m/min (ipm) 36 (1417.3) 36 (1417.3) 30 (1181.1)
Z axis m/min (ipm) 36 (1417.3) 36 (1417.3) 30 (1181.1)
Automatic Tool Changer (ATC) Tool shank type - BT 40 {CAT/ DIN} BT 40 {CAT/ DIN} BT 40
Tool storage capacity m/min (ipm) 30 30 30
Motor Spindle motor power kW (Hp) 1.1 (1.5) 0.4 (0.54) 18.5/5.5 (24.8/7.4) (S3 15%cont.)
Power Source Electric power supply (rated capacity) kVA 24.8 28.5
Machine Dimensions Height mm (inch) 2661 (104.8) 2681 (105.6) 2661 (104.8)
Length mm (inch) 2300 (90.6) 2410 (95) 2410 x 4264 (94.9 x 167.9)
Width mm (inch) 2250 (88.6) 3100 (122.0) 4264
Weight kg (lb) 4100 (9038.8) 5820 (12831) 3850 (8488)
Control NC system - FANUCi-SERIES SIEMENS S828D FANUC i-SERIES -



*NOTE*The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA

Features

  • Acceleration/Deceleration rates for the spindle and axis drives have been optimized to ensure high productivity.
  • Tool change times (T-T-T and C-T-C) have been improved to reduce the noncutting time between machining operations.
  • A range of features are available to meet the customers’ machining requirements, such as the automatic ATC shutter and programmable coolant nozzles.
  • The thermal displacement correction function is applied as standard to optimize machining accuracy and to compensate for temperature variations in the surrounding environment.
  • DN Solutions direct connection spindle motor technology is applied to minimize noise and vibration and ensure a high level of reliability over long periods of operation.
  • Grease lubrication is used as standard to reduce running costs and provide an eco-friendly operation.
  • The SVM machine incorporates DN Solutions traditional C-frame design structure, but has been optimized for higher productivity when undertaking fast and light duty machining operations
  • Optimized machine table size and maximum allowable load capacity provide the largest machining area in its class.
