DN Solutions Horizontal Turning Center SMX Series

DN Solutions Horizontal Turning Center SMX Series

Note:

The Specifications and information above-mentioned may be changed without prior notice.

Categories: , ,

Technical Specifications SMX 2100-2600

Description Unit SMX 2100[L] SMX 2100S[LS] SMX 2100ST[LST] SMX 2100B SMX 2100SB SMX 2100STB PUMA SMX 2600 PUMA SMX 2600S PUMA SMX 2600ST
Capacity Swing over bed mm (inch) 600 (23.6) 660 (26.0) 660 (26.0)
Recom. turning diameter mm (inch) 210 (8.3) 255 (10.0) 255 (10.0)
Max. turning diameter mm (inch) 600 (23.6) 660 (26.0) 660 (26.0)
Max. turning length mm (inch) 1040(40.9) [1540(60.6)] 1040 (40.9) 1540 (60.6)
Chuck size mm (inch) 8 10 10 {12}*
Travel X-axis mm (inch) 630(-105/+525) (24.8(-4.1/+20.7)) 630 (-125/+505) (24.8 (-4.9/+19.9)) 695(-125/+570)
Y-axis mm (inch) 210(±105) (8.3(±4.1)) 300 (±150) (11.8 (±5.9))
Z-axis mm (inch) 1085(42.7) [1585(62.4)] 1085 (42.7) 1585 (62.4)
Rapid traverse Rate X-axis m/min(ipm) 48 (1889.8) 48 (1889.8)
Rapid traverse Rate Y-axis m/min(ipm) 36 (1417.3) 36 (1417.3)
Rapid traverse RateZ-axis m/min(ipm) 48 (1889.8) 48 (1889.8)
Main Spindle Spindle speed r/min 5000 4000 4000
Spindle nose ASA A2-6 A2-6 A2-8
Spindle bearing diameter (Front) mm (inch) - 110 (4.3) - 110 (4.3) 130 (5.1)
Long tool magazine Max. tool storage capacity ea 40 {80,120} 40 {80/120}*
Max. tool size mm (inch) - - 25 (1.0) - - 25 (1.0) CAPTO C6 {HSK-T63}*
Power source Electric power supply (rated capacity) kVA 55.65 73.81 80.19 52.36 70.52 76.9 63.38 92.84 98.93
Machine Size Height mm (inch) 2777 (109.3) 2750 2750 2820
Length mm (inch) 3950 (155.5) [4735(186.4)] (without coolant tank)4845 (190.7) [5630 (221.7)](with coolant tank) 3950 (155.5) (without coolant tank)4845(190.7)(with coolant tank) 4900 (192.9)(without coolant tank), 5700 (224.4) (with coolant tank) 4900 (192.9)(without coolant tank), 5780(227.6)(with coolant tank)
Width mm (inch) 2770 (109.1) 3011 3011 3021
Weight kg (lb) 14900 15200 15800 15000 15300 15900 15800 (34832.5) 16200 (35714.4) 18000 (39682.6)
Controller NC system FANUC 31i-B Plus{FANUC 31i-B5 Plus / Siemens 840D, Sinumerik One / CUFOS} FANUC 31i-B Plus {FANUC 31i-B5 Plus / SIEMENS 840D / CUFOS}*



*NOTE*The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA

Technical Specifications SMX 3100-5100

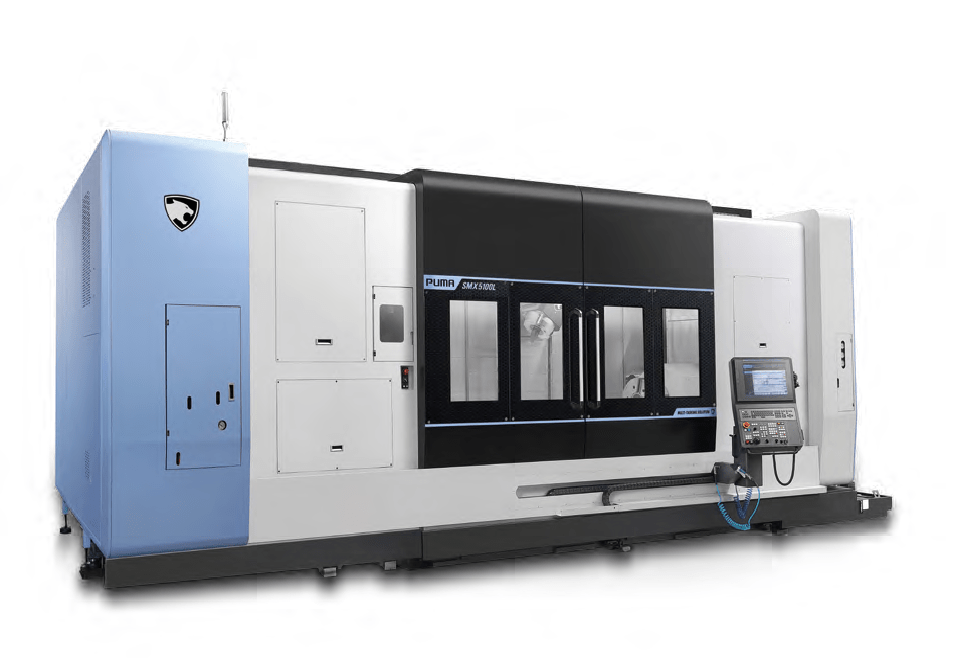

DN Solutions Horizontal Turning Center PUMA SMX Series

Description Unit PUMA SMX 3100 PUMA SMX 3100S PUMA SMX 3100ST PUMA SMX 3100L PUMA SMX 3100LS SMX 3100B/835 PUMA SMX 5100L PUMA SMX 5100LB PUMA SMX 5100LS PUMA SMX 5100LSB PUMA SMX 5100XL PUMA SMX 5100XLB
Capacity Swing over bed mm (inch) 660 (26.0) 760 (29.9) 830(32.7)
Recom. turning diameter mm (inch) 315 (12.4) 530 (20.8)
Max. turning diameter mm (inch) 660 (26.0) 660 (26.0) [ Lower turret: 405 (15.9) ] 660 (26.0) 760 (29.9) 830(32.7)
Max. turning length mm (inch) 1540 (60.6) 1540 (60.6) 2540 (100.0) 790 (31.1) 3050(120.1) 4070(160.2)
Chuck size mm (inch) 12 {15}* 15 21 15 21 15 21
Travel X-axis mm (inch) 630 (-125/+505) (24.8 (-4.9/+19.9)) 695(-125/+570) (27.4(-4.9/+22.4 )) 630 (-125/+505) (24.8 (-4.9/+19.9)) 696(-46/+650) (27.4(-1.8/+25.6)) 910(35.8) (-30/+880) (-1.2/+34.6)
Z-axis mm (inch) 1585 (62.4) 2585 (101.8) 835 (32.9) 520(±260) (20.5(±10.2))
Rapid traverse Rate X-axis m/min(ipm) 48 (1889.8) 40(1574.8)
Rapid traverse RateZ-axis m/min(ipm) 48 (1889.8) 48 (1889.8) 30 (1181.1) 30 (1181.1) 48 (1889.8) 40(1574.8)
Spindle Spindle speed r/min 3000 2400 2400 1500 2400 1500 2400 1500
Spindle nose ASA A2-11 A2-11 A2-15 A2-11 A2-15 A2-11 A2-15
Spindle bearing diameter (Front) mm (inch) 160 (6.3) 180 (7.1) 180(7.1) 240(9.4) 180(7.1) 240(9.4) 180(7.1) 240(9.4)
Turret No. of tool stations ea - - 12 - - - 40 {80,120}
Tool shank mm (inch) CAPTO C6 {HSK-T63}* CAPTO C8
Turret Indexing time (1 station swivel) s - - 0.2 - - - 40 {80,120}
Power Source Electric power supply kVA 70.08 99.44 99.46 69.8 99.72 60.44 95.73 98.63 118.5 121.68 96.01 240(9.4)
Machine Dimensions Height mm (inch) 2750 (108.3) 2850 (112.2) 2820 (111.0) 2850 (112.2) 2850 (112.2) 2890 (113.8) 3346(131.7) 3346(131.7) 3346(131.7) 3346(131.7) 3346(131.7) 3346(131.7)
Length mm (inch) 4900 (192.9) (without coolant tank), 5700 (224.4) (with coolant tank) 4900 (192.9) (without coolant tank), 5700 (224.4) (with coolant tank) 4900 (192.9) (without coolant tank), 5780(227.6) (with coolant tank) 6400 (252.0) (without coolant tank), 7200(283.5) (with coolant tank) 6400 (252.0) (without coolant tank), 7200(283.5) (with coolant tank) 4665 (183.7) 9222(363.1) 9222(363.1) 9522(374.9) 9522(374.9) 10749(423.2) 10749(423.2)
Width mm (inch) 3011 (118.5) 3011 (118.5) 3021 (118.9) 3011 (118.5) 3011 (118.5) 2920 (115.0) 3597(141.6) 3597(141.6) 3597(141.6) 3597(141.6) 3597(141.6) 3597(141.6)
Weight kg (lb) 16300 (35934.8) 16700 (36816.7) 18500 (40784.9) 20100 (44312.3) 20500 (45194.1) 14960 (32980.7) 31000(68342.3) 33000(72751.5) 32200(70987.8) 35900(79144.8) 37000(81569.8) 39000(85979.0)
Control NC system FANUC 31i-B Plus {FANUC 31i-B5 Plus / SIEMENS 840D / CUFOS}* CUFOS(Fanuc base)



*NOTE*The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA

Features

  • Complex machining capabilities of the le spindle, right spindle, B-axis, milling spindle and lower.
  • Highly-rigid machine construction using structural analysis design.
  • Maximized Y-axis stroke through machine’s orthogonal design structure.
  • Maximized productivity achieved through simultaneous machining.
  • Minimized thermal deformation of the spindle and feed axis using oil cooler system.
  • Adoption of roller LM guideways with high-rigidity and high precision.
  • Equipped with 0.0001° B-axis and C-axis accuracy control functions.
  • Front located tool magazine.
  • Side-to-side movable swiveling Operation panel with adjustable Height(SMX 2100: Swiveling & height adjustment possible).
  • Convenient ATC-magazine operation panel
