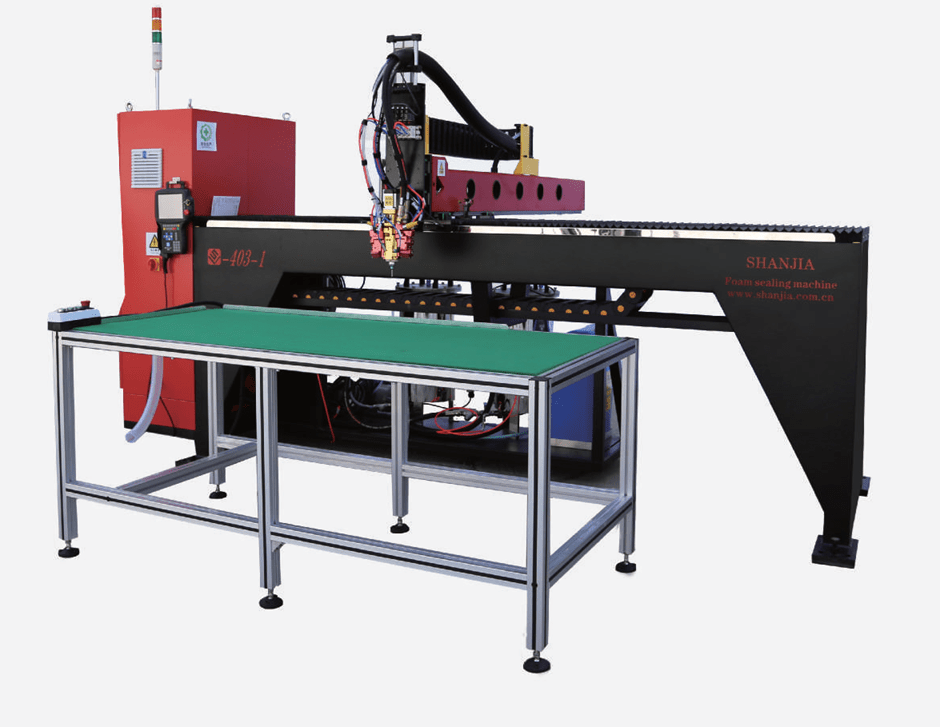

Shanjia Automatic Foam Sealing SJ Series

Technical Specifications

Model	Unit	SJ 304	SJ 503	SJ 403
Working Distance	mm	800 X 600 X 160	2250 × 1250 × 200	2250 × 1250 × 200
Overall Dimension	mm	2300 X 1550 X 2100	2250 × 1250 × 200	2250 × 1250 × 200
Filter precision	um	30-60	40-50	40-50
Reset Precision	mm	±0.05	±0.05	-
Max. sliding speed	m/min	0-20	0-30	0-12
The limited for Work Pressure	Mpa	0-4	≧0.6	≧0.4
AB Components Tanks	L	40	-	-
Total Power	kW	4-5	3-4	3-4
Meter pump precision		±0.05	±0.05	±0.06
Material Mixing Ratio		1∶1-10∶1	1∶1-10∶1	1∶1-10∶1
Pressure Requirement	MPA	0.5-0.8	0-4	0-4

*NOTE* The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.

Portable handhold operating system.
Multi-mode shift selection.
Intelligent graphics teaching function to complete the three-dimensional surface trajectory.
Intelligent fixed – point glue injection function, can be fixed – time glue injection at any position.
Intelligent fault alarm, material shortage warning, low air pressure, parameter error, etc.
The intelligent local area network link completes the upload of parameter data and the remote import function of graphics.
Easy to manage parameter modification, level authority setting, and protection of process-related parameters.
