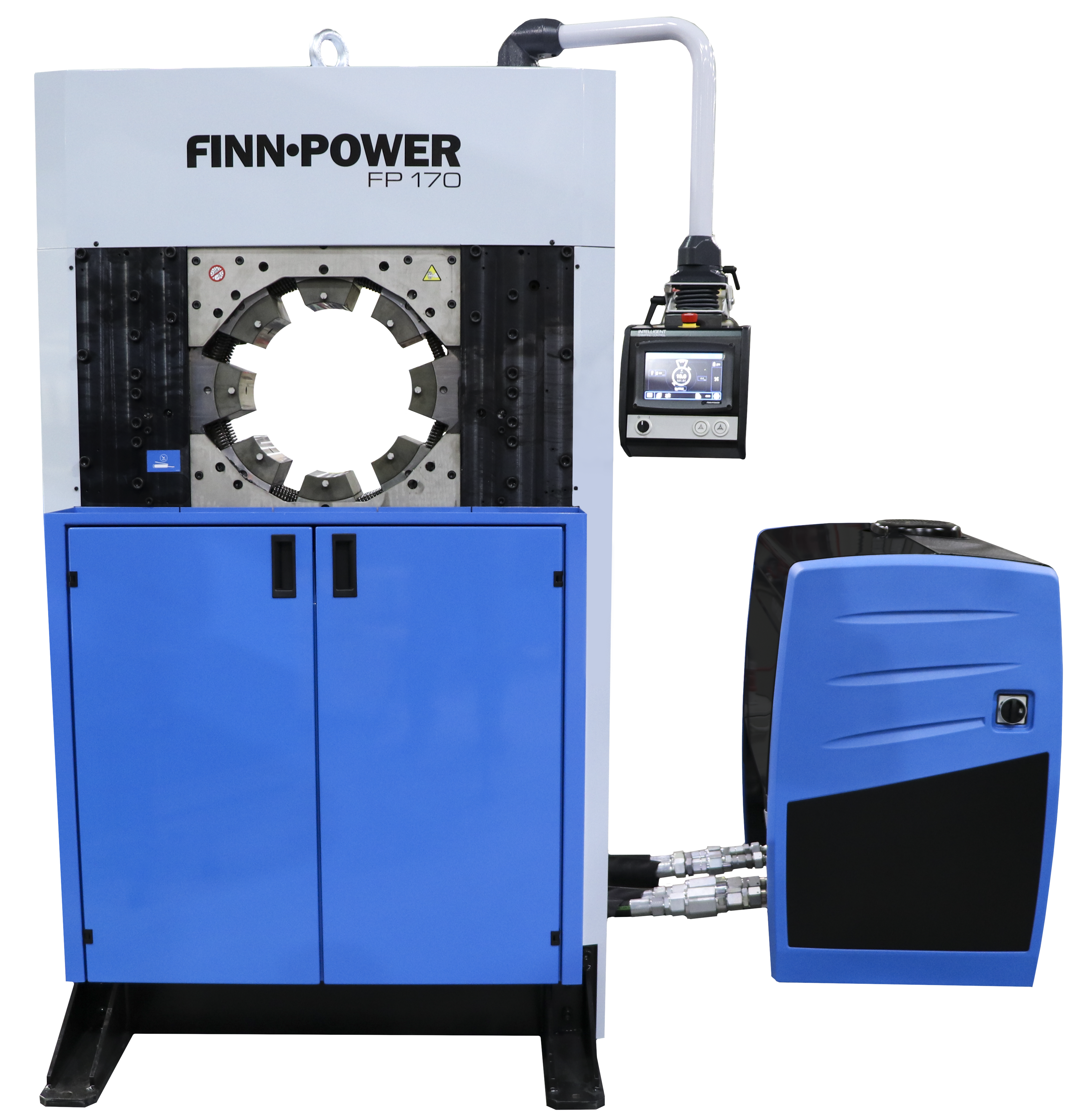

Lillbacka Serial Production FP Series

Technical Specifications

Model	Unit	FP20	FP120	FP140	FP145	FP165	FP170	FP175
Max crimping dia	(mm)1	61/2.4	87	124	124	202	320	320
Max crimping dia with master dies	mm	94/3.7	3.42	4.88	4.88	230/9	330	330
Max. crimping force	Kn	1500	2800	3200	3500	5000	6600	8300
Max. crimping force	tonnage	150	280	320	350	500	660	830
Cycle time	mm(s)²	1.9 (S-model: 1.4)	1.8 (S-model: 1.6)	2.3	2.5	3.6	3.1	3.2
Hydraulic hose size	inch	1 1/2 *	2 *	2 1/2 *	2 1/2 *	6 *	10 *	10 *
Industrial hose size	inch	2.4 *	-	-	140/97	7.95 *	12.60 *	12.60 *
Max. opening	mm	68	68	82	82	125	155	155
Max. opening without dies	mm	152	167	222	222	345	475	475
Motor	kw	3	6.5	6.5	6.5	6.5	7.5	11
Dimension Machine	mm	640 x 700 x 1372	881 X 664 X 1561	881 X 664 X 1561	881 x 683 x 1561	1060 x 860 x 1825	1200 x 936 x 2220	1200 x 936 x 2220
Hydraulic Unit	mm	713 x 705 x 1060	782 X 751 X 1063	782 X 751 X 1063	782 x 751 x 1063	782 x 753 x 1043	1195 x 705 x 1411	1195 x 705 x 1411
Machine Weight	kg	504	875	905	1053	2480	4400	4455
Hydraulic Unit	kg	150	220	220	220	220	265	305

*NOTE* The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.
