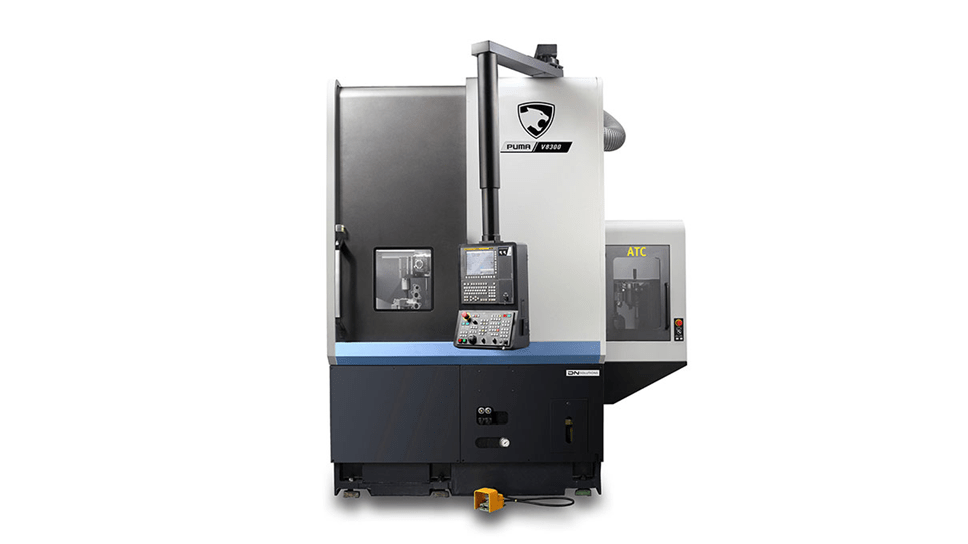

DN Solutions Vertical Turning Center PUMA V8300_9300 Series
DN Solutions Vertical Turning Center PUMA V8300_9300 Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specifications
DN Solutions V8300-9300 Series
| Description | Unit | PV 8300 | PV 8300 M | PV 8300 -2SP | PV 8300 M-2SP | PV 9300 L/R | PV 9300M/ML/MR | PV 9300-2SP | PV 9300M-2SP | |
| Capacity | Swing over bed | mm (inch) | 920 (36.2) | 1000 (39.4) | ||||||
| Swing over saddle | mm (inch) | 740 (29.1) | 700 (27.6) | |||||||
| Recom. turning diameter | mm (inch) | 850 (33.5) | 610 (24.0) | |||||||
| Max. turning diameter | mm (inch) | 830 (32.7) | 930 (36.6) | |||||||
| Max. turning height | mm (inch) | 2 Axis : 780 (30.7) / 3 Axis : 690 (27.2) | 801 (31.5) | |||||||
| Chuck size | mm (inch) | 15 {18 / 21 / 24}* | 24 {32} | |||||||
| Travel | X-axis | mm (inch) | 495 (-80~415) (19.5(-3.1~16.3)) | 485 (19.1) | ||||||
| Z-axis | mm (inch) | 780 (30.7) | 890 (35.0) | |||||||
| Feedrates | X-axis | m/min(ipm) | 20 (787.4) | 20 (787.4) | ||||||
| Z-axis | m/min(ipm) | 20 (787.4) | 20 (787.4) | |||||||
| Main Spindle | Spindle speed | r/min | 2000 | 1800 | ||||||
| Spindle nose | ASA | A2-11 | A2-15 | |||||||
| Spindle bearing diameter (Front) | mm (inch) | 160 (6.3) | 200 (7.9) | |||||||
| Main spindle indexing angle (C-axis) | deg | 2592 {3153, 1659} (1912.9 {2326.9, 1224.3}) | 2592 {3153/1611} (1912.9 {2326.9, 1188.9}) | 2592 {3153, 1659} (1912.9 {2326.9, 1224.3}) | 2592 {3153/1611} (1912.9 {2326.9, 1188.9}) | - | 0.001 | - | 0.001 | |
| Turret | No. of tool stations | st | 8 / 10 / 12 | 12 | ||||||
| OD tool size | mm (inch) | 32 x 32 (1.3 x 1.3) | 25 x 25 (1.0 x 1.0) | 32 x 32 (1.3 x 1.3) | 25 x 25 (1.0 x 1.0) | 32 (1.3) | ||||
| Turret Indexing time (1 station swivel) | s | 0.25 | 0.25 | |||||||
| Power Source | Electric power supply (rated capacity) | kVA | 43.16 | 86.33 | 66.94 | 133.88 | ||||
| Machine Size | Length x Width | mm (inch) | 2005 x 2715 (78.9 x 106.9) | 4020 x 2715 (158.3 x 106.9) | 2144 x 3065 (84.4 x 120.7) | 2144 x 3065 (84.4 x 120.7) | 4288 x 3065 (168.8 x 120.7) | 4294 x 3065 (169.1 x 120.7) | ||
| Height | mm (inch) | 3636 (143.1) | 3650 (143.7) | |||||||
| Weight | kg (lb) | 9400 (20723.1) | 9500 (20943.6) | 18800 (41446.3) | 19000 (41887.2) | 11400 (25132.3) | 11500 (25352.8) | 22800 (50264.7) | 23000 (50705.6) | |
| Controller | NC system | DN Solutions Fanuc i Plus | DN Solutions-FANUC i Plus | |||||||
Features
| The largest turning capacity in its class is achieved with max. 32″ m chuck size and 930 mm (36.6 inch) of max. turning diameter. |
| High power spindle for powerful cutting performance – Max. power 45kW, torque 4443N·m (PV 9300) nd – Max. power 45kW, torque 3153N·m (PV8300) |
| Increase the number of tools with ATC option can improve the flexibility and efficiencyofmachining performance |
| Fast and stable servo driven turret |
| Robust BMT milling holder on turret and best-in-class high power rotary tool motor carry out high productivity in milling<M type model> |
| Highly steep bed structure for easy chip disposal |
| Intuitive and user-friendly DN Solutions FANUC i PLUS CNC |
| Pendant type operation panel with easy movement of locating and height adjustment according to operator’s workflow |
