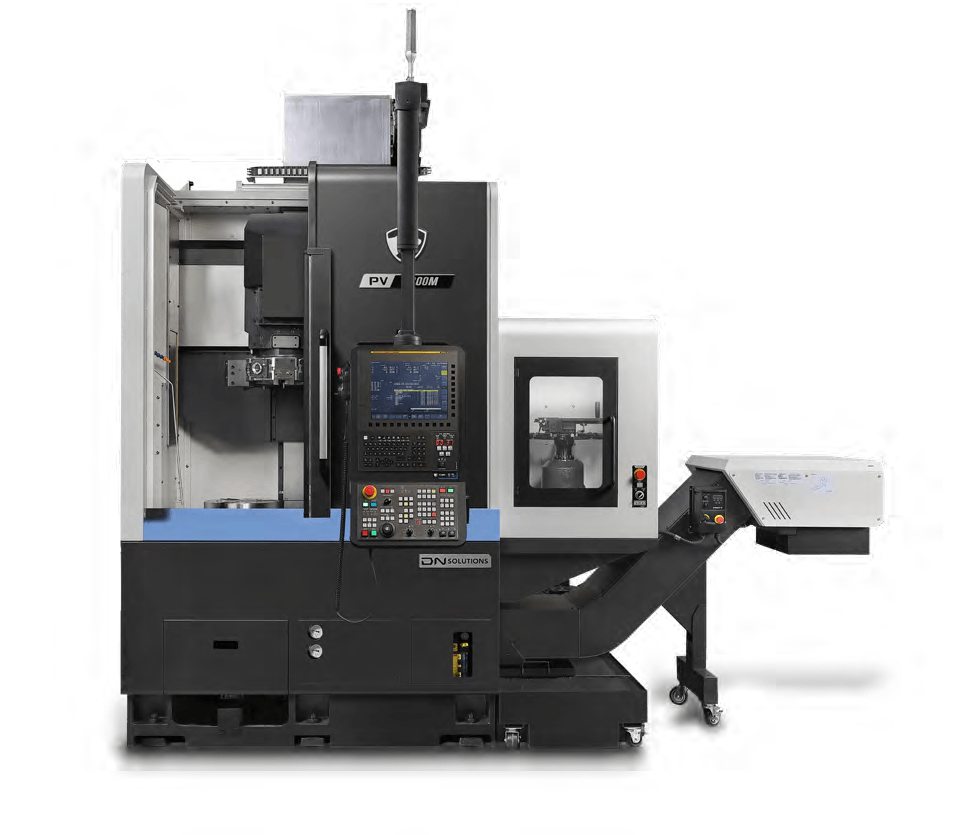

DN Solutions Vertical Turning Center PUMA V 6300 Series
DN Solutions Vertical Turning Center PUMA V 6300 Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specifications
DN Solutions PUMA V6300 Series
| Description | Unit | PV6300 | PV6300M | |
| Capacity | Swing over bed | mm (inch) | 700 (27.6) | |
| Swing over saddle | mm (inch) | 570 (22.4) | ||
| Recom. turning diameter | mm (inch) | 380 (15.0) | ||
| Max. turning diameter | mm (inch) | 630 (24.8) | ||
| Max. turning height | mm (inch) | 600 (23.6) | ||
| Chuck size | mm (inch) | 15 {18 }* | ||
| Travel | X-axis | mm (inch) | 400 (15.7) | |
| Z-axis | mm (inch) | 660 (26.0) | ||
| Feedrates | X-axis | m/min(ipm) | 20 (787.4) | |
| Z-axis | m/min(ipm) | 20 (787.4) | ||
| Main Spindle | Spindle speed | r/min | 2000 | |
| Spindle nose | ASA | A2-11 | ||
| Spindle bearing diameter (Front) | mm (inch) | 160 (6.3) | ||
| Main spindle indexing angle (C-axis) | deg | - | 0.001 | |
| Turret | No. of tool stations | st | 12 | |
| OD tool size | mm (inch) | 25 x 25 (1.0 x 1.0) | ||
| Turret Indexing time (1 station swivel) | s | 0.2 | ||
| Power Source | Electric power supply (rated capacity) | kVA | 41.10 {45.22, 45.22} | |
| Machine Size | Length x Width | mm (inch) | 1754 x 2590 (69.1 x 102.0) | |
| Height | mm (inch) | 3369 (132.6) | ||
| Weight | kg (lb) | 7800 (17195.8) | ||
| Controller | NC system | DN Solutions Fanuc i Plus | ||
Features
| The turning capacity achieved 32″ of max. chuck size and 1100 mm of max. turning diameter. |
| In order to assure heavy duty machining and optimized chip flow, the machine base body is designed and streamlined. |
| The bed structure has been redesigned to facilitate the efficient disposal of high volumes of chips. In addition, the height of the operation panel can be adjusted for optimum convenience. |
| Fixed type pendants are also available to suit customers’ requirements |
| Its small foot print help you systemizing your manufacturing plan plot in your factory. |
| The highly rigid gearbox structure provides the highest power / torque in its class for heavy duty cutting and optimum performance. A variety of spindle specifications are vailable to suit customers’ diverse requirements. |
| The new servo motor turret increases indexing speed and accuracy. The M model uses BMT85P turret to provide excellent milling performance and reduced thermal error due to low heat generation design. |
