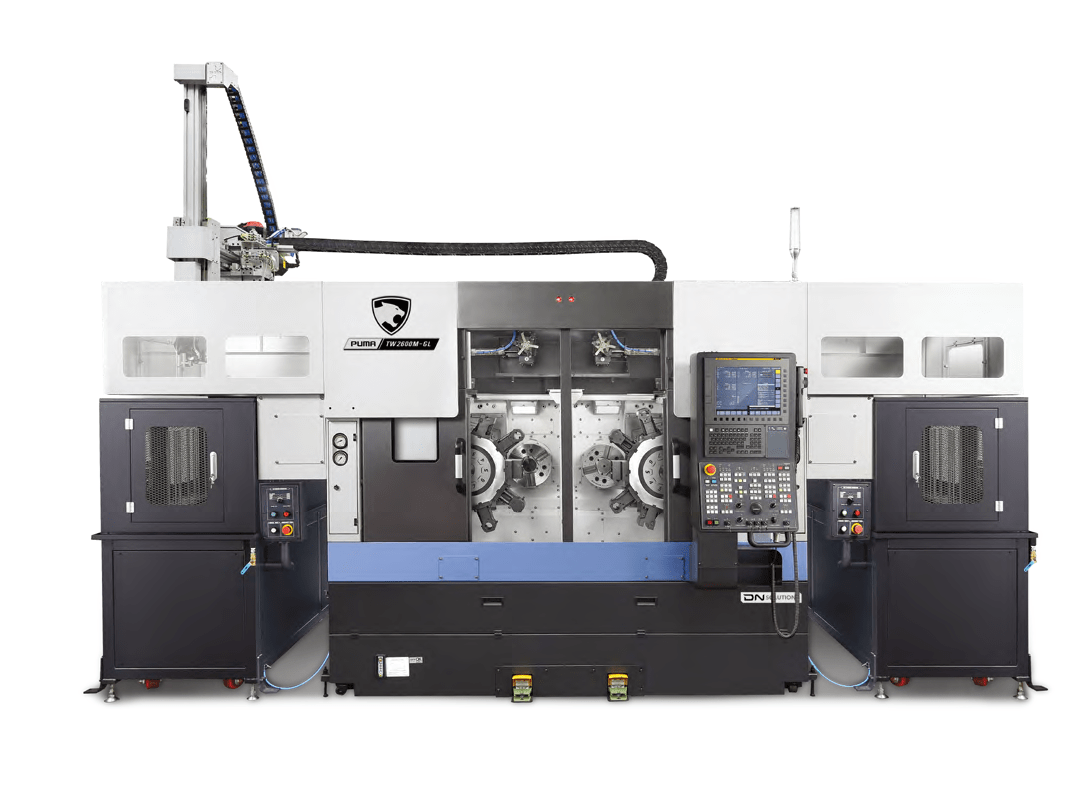

DN Solutions Turning Center PUMA TW Series
DN Solutions Turning Center PUMA TW Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specifications
DN Solutions PUMA TW Series
| Description | Unit | PUMA TW2100 [M] [W] [WM] | PUMA TW2100-GL [M/W/WM-GL] | PUMA TW2600 [M] [W] [WM] | PUMA TW2600-GL [M/W/WM-GL] | PUMA TW2600B [GL/MB/MB-GL] | |
| Capacity | Recom. turning diameter | mm (inch) | Ø160 (Ø6.3) | - | Ø255 (Ø10.0) | - | Ø255 (Ø10.0) |
| Max. turning diameter | mm (inch) | Ø240 (Ø9.4) | Ø130 / Ø30 (Ø5.1 / Ø1.2) (GL130) Ø180 / Ø30 (Ø7.1 / Ø1.2) (GL180) | Ø360 (Ø14.2) | Ø200 / Ø50 (Ø7.9 / Ø2.0) (GL200) Ø320 / Ø50 (Ø12.6 / Ø2.0) (GL320) | Ø360 (Ø14.2) | |
| Max. turning length | mm (inch) | 128 (5.0) | 80 (3.1) | 170 (6.7) | 120 (4.7) | 170 (6.7) | |
| Chuck size | mm (inch) | Ø210 (8") | Ø255 (10") | Ø304(12") | |||
| mm (inch) | Ø175 (6") | Ø210 (8"), Ø305 (12") | - | ||||
| Travel | X-axis | mm (inch) | 135 (5.3) | 190 (10+180) (7.5 (0.4+7.1)) | 190 (10+180) (7.5 (0.4+7.1)) | ||
| Z-axis | mm (inch) | 160 (6.3) | 180 (7.1) | 180 (7.1) | |||
| Rapid traverse Rate X-axis | m/min(ipm) | 24 (944.9) | 24 (944.9) | 24 (944.9) | |||
| Rapid traverse RateZ-axis | m/min(ipm) | 24 (944.9) | 24 (944.9) | 24 (944.9) | |||
| Spindle | Spindle speed | r/min | 45001) {60002)} | 3500 | 3500 | ||
| Spindle nose | ASA | A2-5 | A2-6 | A2-8 | |||
| Spindle bearing diameter (Front) | mm (inch) | Ø90(Ø3.5) {BUILT-IN Ø80(Ø3.1)} | Ø110 (Ø4.3) | Ø130 (Ø5.1) | |||
| Turret | No. of tool stations | ea | 8+8 [10+10] | 10+10 | |||
| Tool shank | mm (inch) | CAPTO C8 | |||||
| Max. boring bar size | sec | Ø40 (Ø1.6) | Ø40 (Ø1.6) | Ø40 (Ø1.6) | |||
| Power | Power consumption | kVA | 53.91 [55.91] | 58.47[60.47] | 69.97 [73.97] | 73.97 [76.97] | 76.05 [79.05 /80.05/83.05] |
| Machine Dimensions | Height | mm (inch) | 2278 (89.7) | 2921 (115.0) | 2150 (84.6) | 3393 (133.6) | 2150 (84.6) |
| Length | mm (inch) | STD/WIDE 2030 (79.9) /2200 (86.6) | GL130/GL180 2030 (79.9) /2200 (86.6) | STD/WIDE 2520 (99.2) / 2620 (103.1) | GL200/GL320 2520 (99.2) / 2620 (103.1) | GL200/GL320 2520 (99.2) / 2620 (103.1) | |
| Width | mm (inch) | 2098 (82.6) | 2098 (82.6) | 2061 (81.1) | |||
| Weight | kg (lb) | 4650 [4750] (10251.3 [10471.]) | GL130/GL180 5200/5250 (11463.9/ 11574.1) [5250/5300] 5200(11463.9) /5250 (11574.1) | GL200/GL320 7200/7250 (15873.0/ 15983.3) [7300/7350] | GL200/GL320 7730/7780 (17041.5/ 17151.7) [7830/7880] | GL200/GL320 7200/7250 (15873.0/ 15983.3) [7300/7350][7730/7780] | |
| Control | NC system | DN Solutions F anuc i Plus | |||||
Features
| Complex machining capabilities of left spindle, right spindle, B-axis, milling spindle |
| Built-in spindle/high-torque Big bore spindle can be selected according to customer’s machining conditions and needs |
| High-rigidity machine construction using structural analysis design |
| Maximized Y-axis machining area through orthogonal design structure |
| Minimized thermal deformation of the spindle and feed axis using oil cooler |
| Adoption of roller LM guideways with highrigidity and high precision |
| Equipped with 0.0001° B-axis and C-axis accuracy control function |
