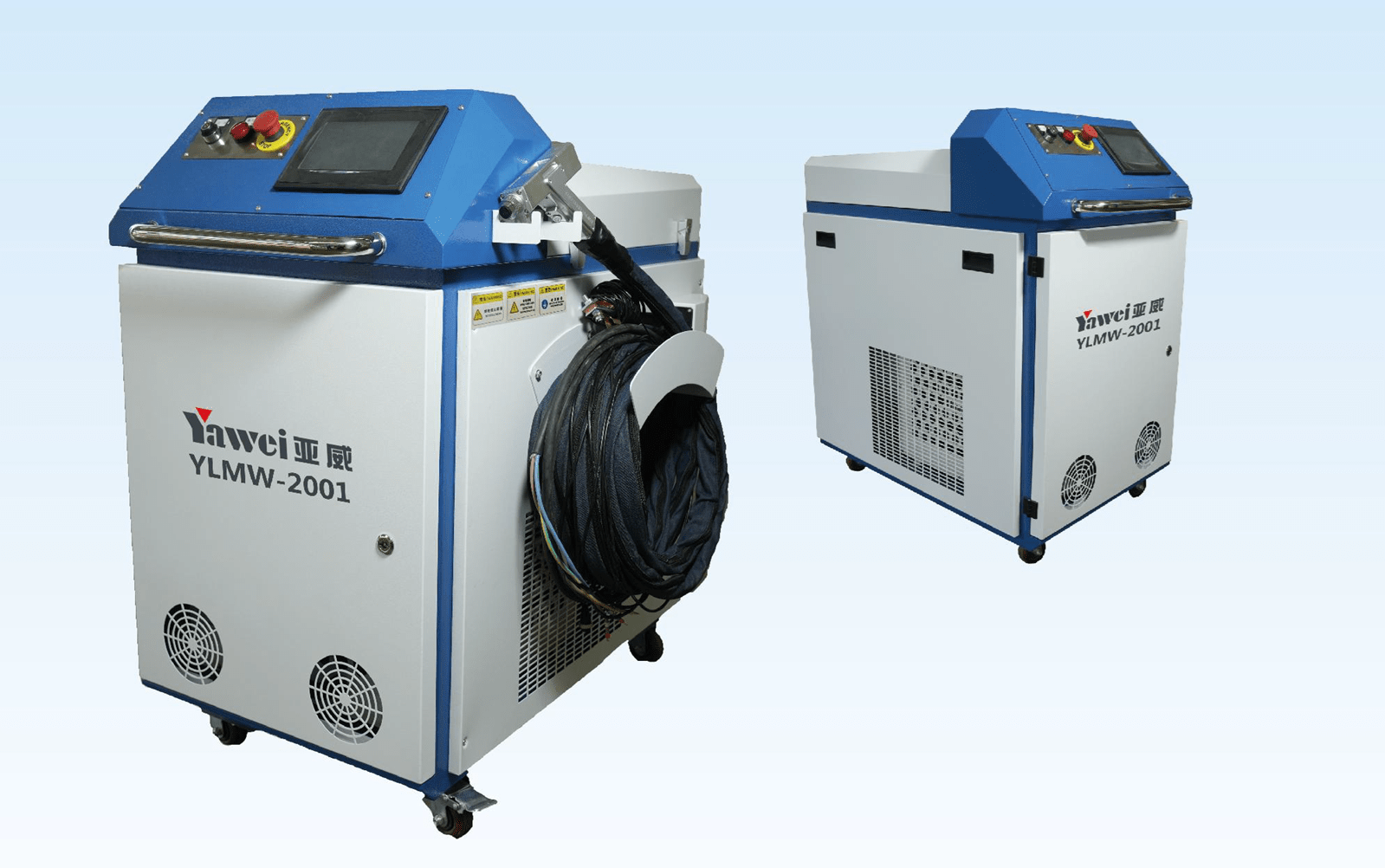

Yawei Laser Welding YLMW Series

Technical Specifications

Model	Unit	YLMW -1501	YLMW -2001	YLMW -3001
Laser Power	W	1500	2000	3000
Laser Wavelength	nm	1070-1080	1070-1080	1070-1080
Fiber Length		Standard by 10m, Maximum support 15m
Cooling Method		Built-in Industrial Constant Temperature Water Cooler
Welding Head		Wobble Welding Head
Wobbling Range of Galvanimeter	mm	0-5.0	0-5.0	0-5.0
Focal Length	mm	150/200	150/200	150/200
Wire Feed Diameter	mm	0.8-2.0	0.8-2.0	0.8-2.0
Power Demand	Hz	AC220V/50

*NOTE*The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA

Simple operation and compact structure
Rich Configuration products can be selected with variety materials wire feeding mechanism.
Light weight design portable welding torch
The welding speed is fast, the efficiency is higher than traditional welding and low requirements for welding works
Laser optical path protection is configured to prevent light from being misdirected and ensure safe operation
