Lillbacka Hose Crimping General Series

Product description

For more details, please contact marketing@electronicahitech.com

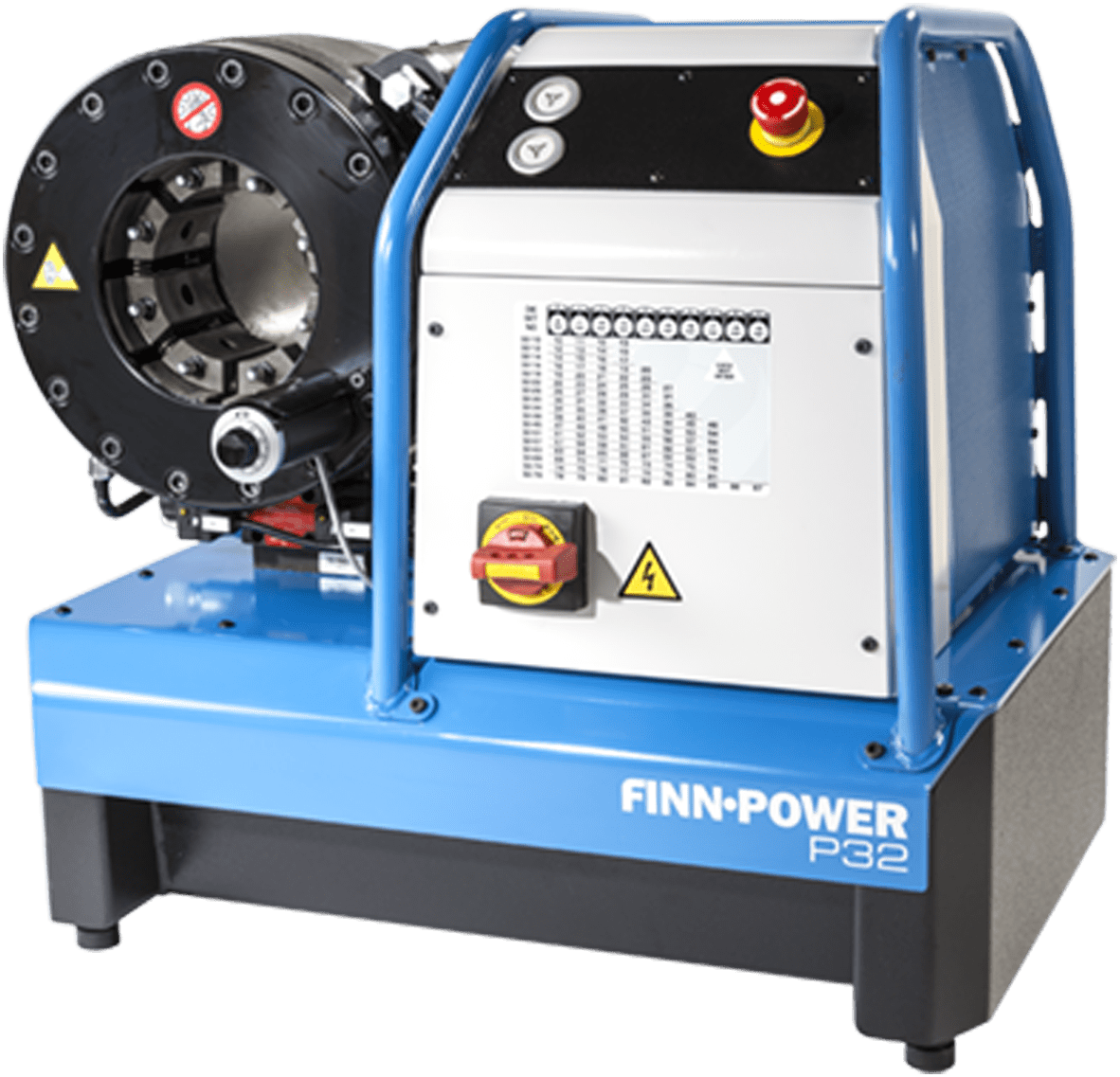

Description	Unit	P16HP	P20AP	P20HP	P20NMS	P20X	P32NMS	P51
Max crimping dia	(mm/inch)	45/1.77	61/2.40	61/2.40	61/2.40	61/2.40	87	124
Max crimping dia with master dies	(mm/inch)	49/1.9	94/3.7	94/3.7	94/3.7	94/3.7	3.42	4.88
Max crimping force	(kN)	955	1370	1370	1370	1370	2000	2800
Max crimping force		95	137	137	137	137	200	280
Hydraulic hose size	(inch)	1 *	1 1/2 *	1 1/2 *	1 1/2 *	1 1/2 *	2 *	2 *
Industrial hose size	(inch)	1.77 *	2.40 *	2.40 *	2.40 *	2.40 *	-	-
Max opening	(mm) 2)	20	25	25	25	25	33	46
Max opening without dies	(mm)	59	109	109	109	109	132	186
Motor Power		Hand pump	Air pressure	Hand pump	3.0/4.0 1.5/2.0	2.2/3.0 1.5/2.0	4.0/5.5 1.5/2.0	4 / 5.5
Dimensions (L x W x H)	(mm)	331 x 401 x 271	583 x 477 x 345	487 x 441 x 389	650 x 510 x 620	525 x 515 x 564	675 x 520 x 620	706 x 473 x 758
Weight	(kg)	26	59	66	145	100	190	260

Strong, fast & reliable crimpers for any servicing crimping need.

With standard dies. Crimping range can be increased with special dies.

Maximum opening is the total die travel

Add this value to the minimum crimping diameter of the die set used

The result is the maximum opening of the machine with die set in place

Theoretical with 10 mm cycle.3-phase/1-phase
