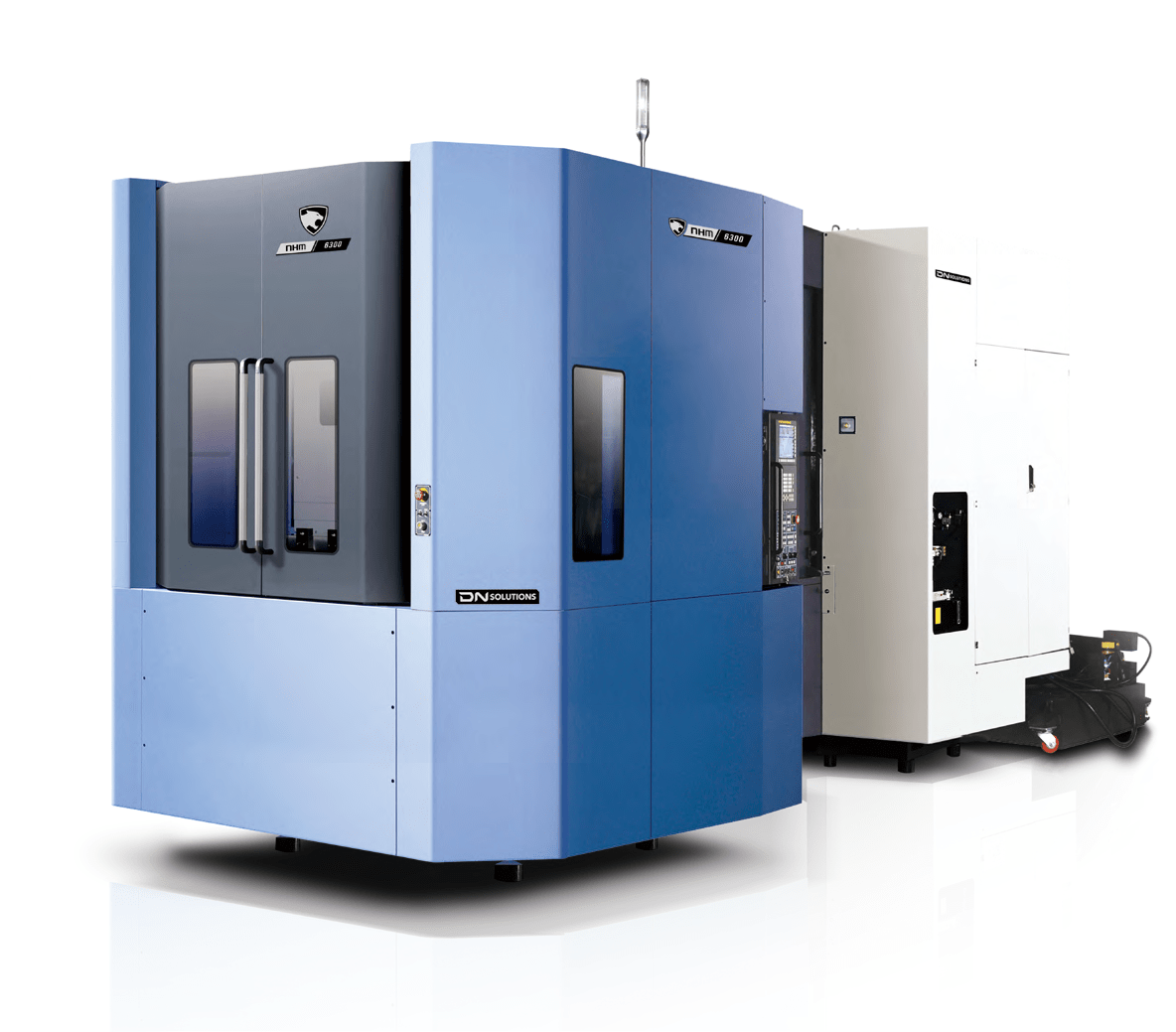

DN Solutions Horizontal Machining Center NHM Series
DN Solutions Horizontal Machining Center NHM Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specipications
DN Solutions NHM Series
| Cutting Capacity | Description | Unit | NHM 5000 | NHM 6300 | NHM 8000 |
| X-axis | mm (inch) | 800 (31.5) | 1050 (41.3) | 1400 (55.1) | |
| Y-axis | mm (inch) | 700 (27.6) | 850 (33.5) | 1050 (41.3) | |
| Z-axis | mm (inch) | 850 (33.5) | 1000 (39.4) | 1200 (47.2) | |
| Distance from spindle nose to table center | mm (inch) | 100 ~ 950 (3.9 ~ 37.4) | 100 ~ 1100 (3.9 ~ 43.3) | 150 ~ 1350 (5.9 ~ 53.1) | |
| Distance from spindle center to table top | mm (inch) | 75 ~ 775 (2.9 ~ 30.5) | 75 ~ 925 (2.9 ~ 36.4) | 75 ~ 1125 (2.9 ~ 44.3) | |
| Feed Rate | X-axis | mm (inch) | 30 (1181.1) | 30 (1181.1) | 24 (944.9) |
| Y-axis | mm (inch) | 30 (1181.1) | 30 (1181.1) | 24 (944.9) | |
| Z-axis | m/min | 30 (1181.1) | 30 (1181.1) | 24 (944.9) | |
| Cutting feed rate | m/min | 15000 (590.6) | 12000 (472.4) | ||
| Pallet | Pallet type | 24-M16 × P2.0 | |||
| Pallet indexing angle | deg | 1 {0.001} | |||
| Max. loading capacity | kg (lb) | 800 (1763.7) | 1200 (2645.5) | 2000 (4409.2) | |
| Max. workpiece size | mm (inch) | Ø 850 x 1100 (Ø 33.5 / 43.3) | Ø 1050 x 1350 (Ø 41.3 / 53.1) | Ø 1450 x 1550 (Ø 57.1 / 61) | |
| Pallet size | mm (inch) | 500 x 500 (19.7 x 19.7) | 500 x 500 (19.7 x 19.7) | 800 x 800 (31.5 x 31.5) | |
| Spindle | Max spindle speed | r/min | 6000 {8000} | ||
| Taper specifications | ISO #50, 7/24 TAPER | ||||
| Max. torque | N·m (ft-lb) | 1034 {1444} (368.8 {1065}) | 1732 {1444} (1277.5 {1065}) | ||
| Auto Pallet Changer (APC) | No. of pallets | ea | 2 | ||
| Automatic Tool Changer (ATC) | Tool shank type | 530 (20.8) (BT / CAT / DIN), 600 (HSK | 630 (24.8) (BT / CAT / DIN), 700 (HSK) | 630 (24.8) (BT / CAT / DIN), 700 (HSK) | |
| Tool storage capacity Chain type | ea | 60 {90 / 120 / 150} | |||
| Tool storage capacity Matrix type | ea | {196 / 256 / 316 / 376} | |||
| Motor | Spindle motor power | kW (Hp) | 25 / 15 {35 / 22} (33.5 / 20.1 {46.9 / 29.5}) | 35 / 22 (46.9 / 29.5) | |
Features
| The high rigidity one-piece bed supports heavy duty cutting with the adoption of Finite Element Method (FEM) analysis. |
| The servo-driven automatic tool changer (ATC) and automatic pallet changer improve parts durability and maintainability,leading to improved product quality. |
| Compatibility with the pallet extension system and minimized idle time ensure even higher productivity. |
| Various new user-friendly functions have been introduced to reduce the operator’s work load |
| The spindle temperature is kept uniform by the cooling system. |
| As a mechanism designed for precise pallet position repeatability, the cone air blower injects high-pressure air into the table fixing pin connecting the table and the pallet in order to remove chips from the pin and guaranteeing them seating at the correct positioning of the workpiece. |
