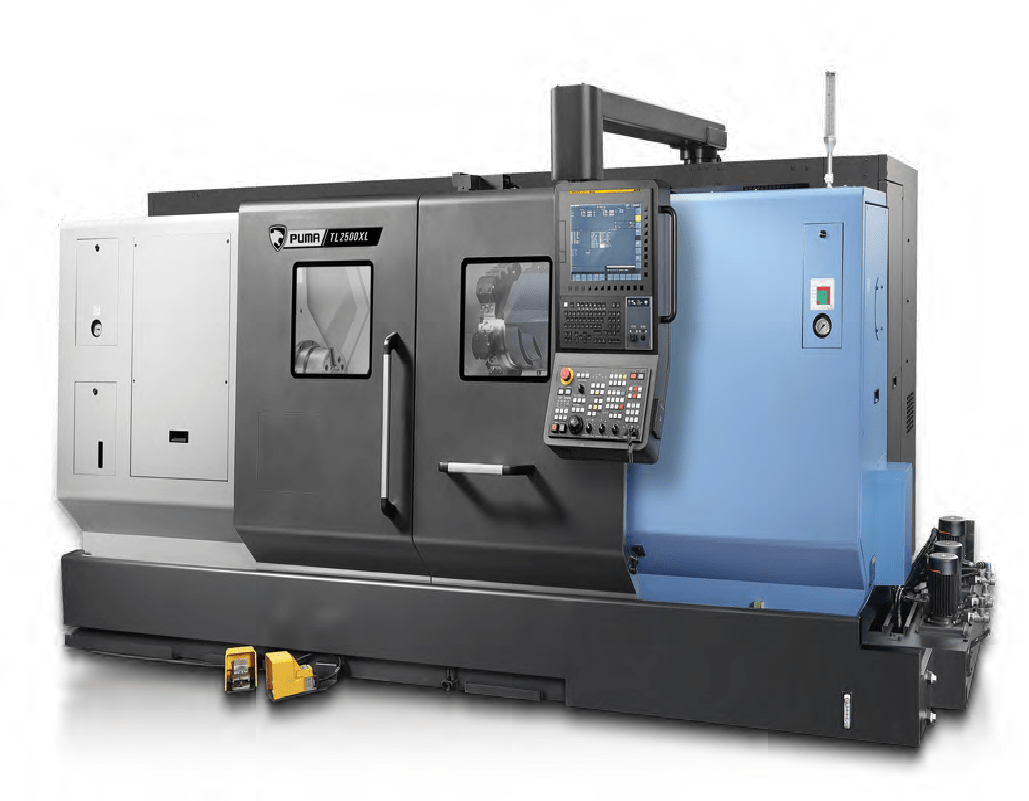

DN Solutions Horizontal Turning Centre TL 2000-2500 Series
DN Solutions Horizontal Turning Centre TL 2000-2500 Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specifications
DN Solutions PUMA TL Series
| Description | Unit | PUMA TL 2000 [L] | PUMA TL 2000M [LM] | PUMA TL 2500 [L/XL] | PUMA TL 2500M [LM/XLM] | |
| Capacity | Swing over bed | mm (inch) | 600 (23.6) | |||
| Swing over saddle | mm (inch) | 430 (16.9) | ||||
| Recom. Turning diameter | mm (inch) | 210 (8.3) | 255 (10.0) | |||
| Max. turning length | mm (inch) | 370/240 (14.6/9.4) | 350/240 (13.8/9.4) | 370/240 (14.6/9.4) | 350/240 (13.8/9.4) | |
| Bar working diameter | mm (inch) | ø65 (2.6) | ø81 (3.2) | |||
| Travel | X-axis | mm (inch) | X1 : 250 (9.8) / X2 : 150 (5.9) | |||
| Z-axis | mm (inch) | Z1 : 650 [1050/1300] (25.6 [41.3/51.2]) / Z2 : 630[1030/1280]( 24.8 [40.6/50.4]) | ||||
| Rapid traverse Rate X-axis | m/min(ipm) | 20 (787.4) | ||||
| Rapid traverse RateZ-axis | m/min(ipm) | 24 (944.9) | ||||
| Spindle | Spindle speed | r/min | 5000 | 4000 | ||
| Spindle nose | ASA | A2#6 | A2#8 | |||
| Spindle bearing diameter (Front) | mm (inch) | 110 (4.3) | 130 (5.1) | |||
| Turret | No. of tool stations | ea | 12(Upper) + 8(Lower) | |||
| OD tool height | mm (inch) | 25 (1.0) | ||||
| Indexing time | sec | 0.15 | ||||
| Power Source | Power consumption | kVA | 39.37 | 40.7 | 47.84 | 49.17 |
| Machine Dimensions | Length | mm (inch) | 3250 [3900/4510] (128.0 [153.5/177.6 ) | |||
| Width | mm (inch) | 2118 [2144/2630] (83.4 [84.4/103.5] ) | ||||
| Height | mm (inch) | 1930 (76.0) [PUMA 2500XL/XLM: 2115(83.3)] | ||||
| Weight | kg (lb) | 7200 [8400] (15432.1 [18518.6]) | 7300 [8500/9600 (PUMA TL2500XL)/9700(PUMATL2500XLM)](16093.5 [18739.0(PUMA TL2500XL)/(21164.1)(PUMA TL2500XLM)]) | |||
| Controller | CNC system | DN Solutions Fanuc i Plus {Fanuc 31i} | ||||
Features
| Equipped with a 18.5kW high-power motor and machine structure, and further enhanced spindle and axis ball screw stiffness, |
| 2100/2600 series offers excellent cutting capability up to maximum turning diameter of Ø460mmand a maximum turning length of 658mm |
| The Series’ excellent reliability is based on the adoption of a wider support structure, more stable bed, low vibration/noise spindle, |
| a full slideway cover for preventing coolant leaks and chips from penetrating the machine. |
| The CNC tailstock as standard and EZ work enable the user to operate peripheral devices quickly and conveniently. |
| Adoption of grease type lubrication offers the users the convenience and low cost. |
