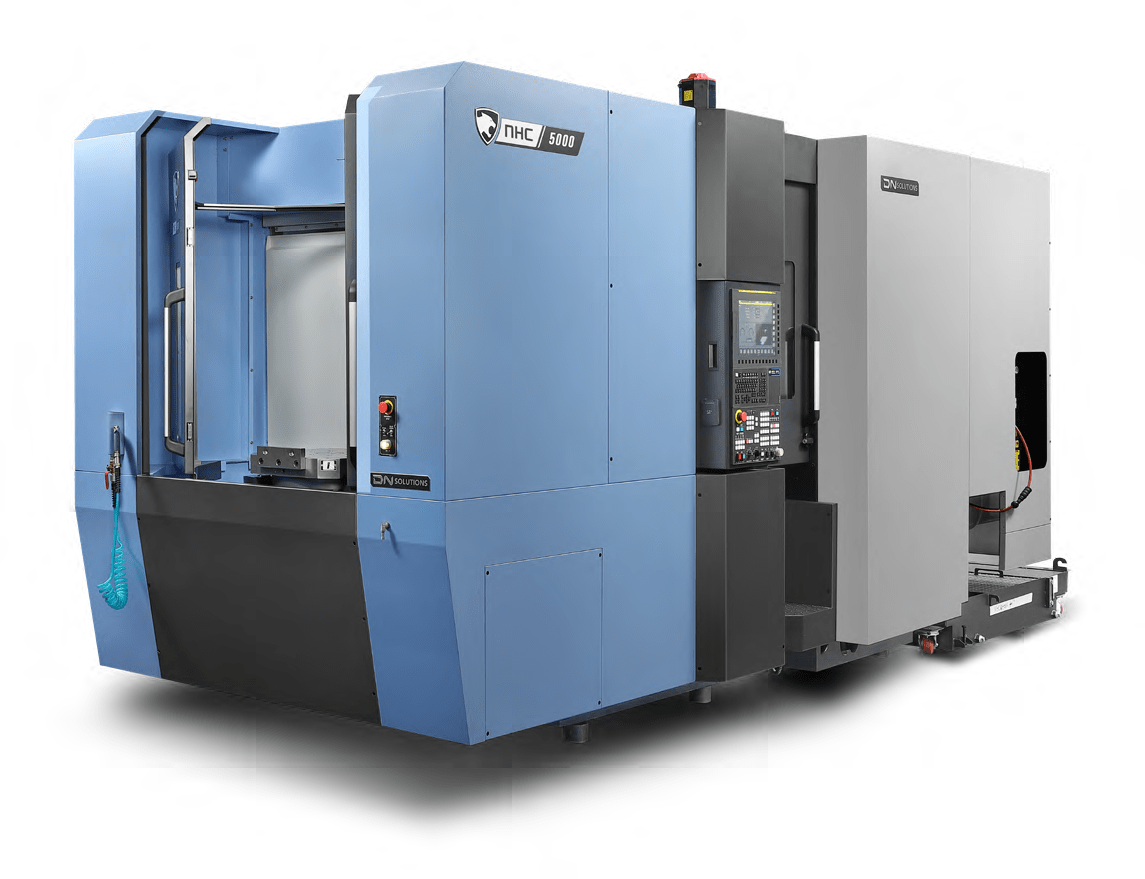

DN Solutions Horizontal Machining Center NHC Series
DN Solutions Horizontal Machining Center NHC Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specifications
DN Solutions NHC Series
| Description | Unit | NHC 4000 | NHC 5000 | |
| Travels | X-axis | mm (inch) | 600 (23.6) | 850 (33.5) |
| Y-axis | mm (inch) | 560 (22) | 700 (27.6) | |
| Z-axis | mm (inch) | 565 (22.2) | 750 (29.5) | |
| Distance from spindle nose to table center | mm (inch) | 150 ~ 715 (5.9 ~ 28.1) | 150 ~ 900 (5.9 ~ 35.4) | |
| Table | Table size | mm (inch) | 1000 x 1000 {1250 x 1000} (39.4 x 39.4 {49.2 x 39.4}) | 1250 x 1250 {1250 x 1000} (49.2 x 49.2 {49.2 x 39.4}) |
| Max. loading capacity | kg (lb) | 400 (881.8) | 500 (1102.3) | |
| Max. workpiece size | mm (inch) | 600 x 800 (23.6 x 31.5) | 800 x 900 (31.5 x 35.4) | |
| Spindle | Max. spindle speed | r/min | 8000 {12000, 15000} | |
| Data specification | - | ISO #40, 7/24 TAPER | ||
| Max. torque | N·m (ft-lb) | 353.4 {117} (260.6 {86.3}) | ||
| Feed Rate | Rapid traverse rate (X / Y / Z / W) | mm/min (ipm) | 48*40*48 | |
| Cutting feedrate | mm/min (ipm) | 20000 (787.4) | ||
| Automatic Tool Changer (ATC) | Type of tool shank | BT40 {CAT40 / DIN 40 / HSK-A63} | ||
| Tool storage capacity | ea | 40 {60 / 80 / 120} | ||
| Max. tool diameter | W/O adjacent tool mm (inch) | 75 (2.9) | ||
| With adjacent tool mm (inch) | 140 (5.5) | |||
| Power Source | Power consumption | kVA | 58 | |
Features
| Size : 1850 mm X-axis travel distance : 175 mm • Z-axis travel distance : 330 mm |
| 30 degree inclined bed structure and high rigidity |
| Fast and stable tool selection by high-strength octagonal turret |
| Easy to monitor the processing status according to the application of inclined door windows |
| Application of rear chip discharge system standard |
| Highly reliable spindle with high-rigidity spindle bearing design is available with chuck size 6 inch standard, 8 inch option. |
| LEO 1600 includes a 30˚slanted stable bed structure with highly rigid roller type LM guideway for reliable machining. |
