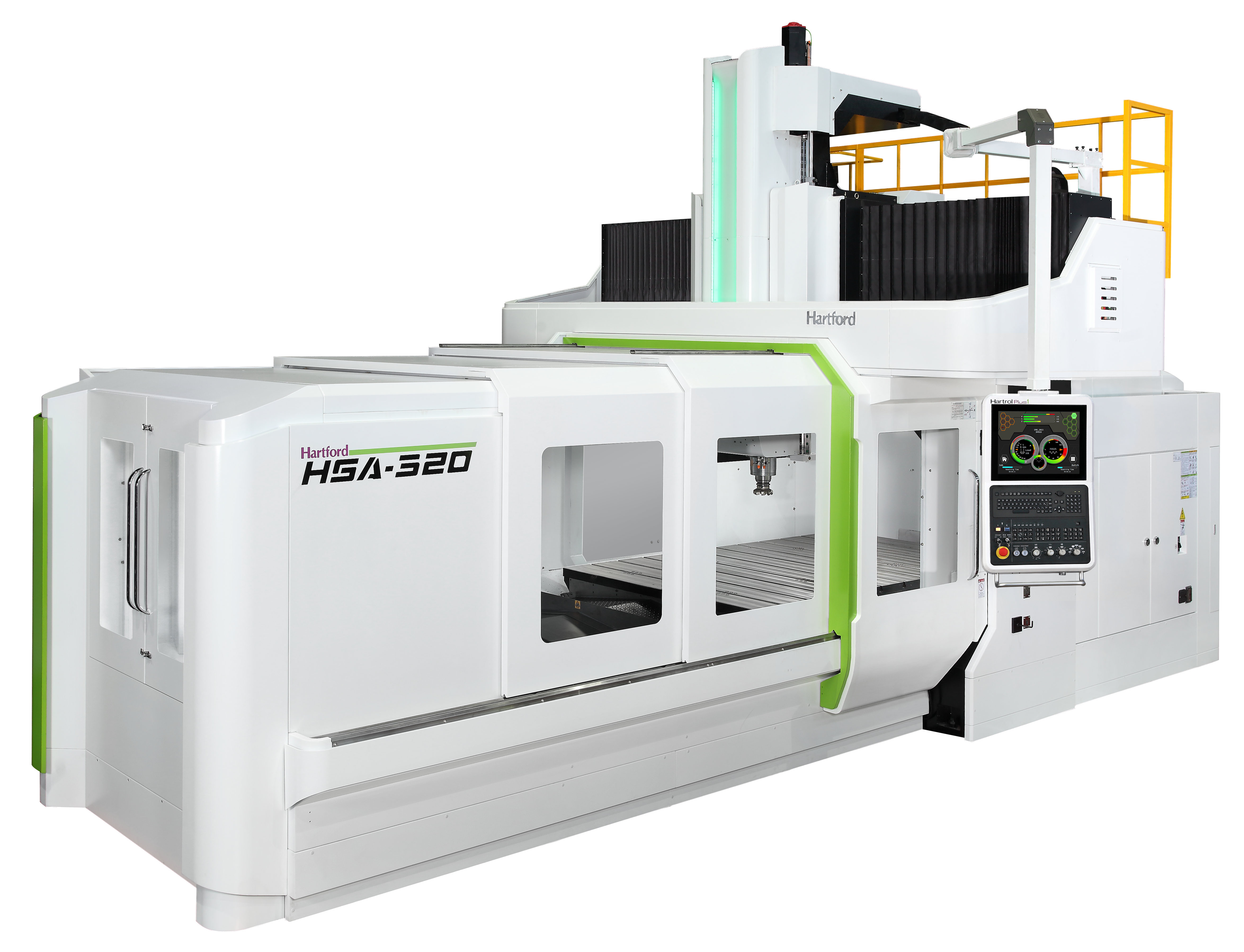

Hartford Double Column Machining Center HSA EA EAY Series

Hartford Double Column Machining Center HSA EA EAY Series

Note:

The Specifications and information above-mentioned may be changed without prior notice.

Categories: ,

Technical Specifications

Hartford Double Column Machining Center HSA EA Series

Model  Unit HSA220/320/420(EA) HSA323/423/523(EA) HSA327/427 (EA) HSA428/528/628/828 (EA) HSA532/732/832(EA) HSA536/736/836(EA)
Table Working Surface mm 2000 / 3000 / 4000 X 1800 3000 / 4000 / 5000 x 2200 3000 / 4000 X 2200 4000 / 5000 / 6000 / 8000 X 2500 5000 / 7000 / 8000 X 2500 5000 / 7000 / 8000 X 3000
T-slot Width x pitch mm 22 x 7/11/15 x 250 28 x 11/15/19 X 250 28 x 11/15 x 250 28 x 15/19/23/31 x 250 28 x 19/27/31 x 250 28 x 19/27/31 x 250
Travel X Axis mm 2000 / 3000 / 4000 3000 / 4000 / 5000 3000 / 4000 4000 / 5000 / 6000 / 8000 5000 / 7000 / 8000 5000 / 7000 / 8000
Y Axis mm EA: 2000 EAY: 2800 EA:2300 EAY:3100 EA:2700     EAY: 3500 EA:2800      EAY: 3600 EA:3200     EAY: 4000 EA: 3600    EAY: 4400
Z Axis mm 1000 (1200) 1000 (1200) 1000 (1200) 1000 (1200) 1000 (1200) 1000 (1200)
Spindle Spindle nose taper rpm  ISO50 ISO50 ISO50 ISO50 ISO50 ISO50
Gear Speed Type rpm  6000 (8000) 6000 (8000) 6000 (8000) 6000 (8000) 6000 (8000) 6000 (8000)
Hybrid Speed rpm  10000 10000 10000 10000 10000 10000
ATC Tool Number pcs 32 ( 40/60/90) -A Type 32 ( 40/60/90) -A Type 32 ( 40/60/90) -A Type 32 ( 40/60/90) -A Type 32 ( 40/60/90) -A Type 32 ( 40/60/90) -A Type
Motor Spindle Drive motor(30 min/con) kw 22/ 18.5 22/ 18.5 22/ 18.5 22/ 18.5 18.5/22 18.5/22
Other Required Air Pressure kg/cm2 6.5 6.5 6.5 6.5 6.5 6.5
Electric Power Requirement KVA 40~65(220)  45~65 (320 / 420) 45~70 45~65 45~60 (328 / 428 ) :  45~65 (528 / 628 / 828) 40~70 (532) :  45~75 (  632 / 732 / 832 ) 45~70
Net Weight kg EA:26000 / 29000 / 32000     EAY: 26500 / 29500 / 32500 EA:32000 / 36000 / 40000   EAY: 33500 / 37500 / 41500 EA: 35300 / 39300  EAY: 36800 / 40800 EA: 41300 / 46300 / 51300 / 61300 EAY : 42800 / 47800 / 52800 / 62800 EA : 46500 / 57500 / 62500  EAY : 48000 / 59000 / 64000 EA : 58000 / 68000 / 73000   EAY : 59500 / 69500 / 74500
Covering Area mm EA:7755 / 9000 / 11000 x 5040   EAY: 7755 / 9000 / 11000  x 5290 EA: 9000 / 11000 / 13000 x 5340     EAY: 9000 / 11000 / 13000 x 5590 EA : 9000 / 11000  x 5840  EAY : 9000 / 11000 x 6090 EA: 11000 / 13000 / 15200 / 19200 x 5840   EAY : 11000 / 13000 / 15200 / 19200  x 6090 EA : 13000 / 17200 / 19200 x 6490   EAY : 13000 / 17200 / 19200  x 6740 EA: 13150 / 17350 / 19350 x 6990 EAY : 13150 / 17350 / 19350 x 7240

Features

  • 5 Year Warranty on Guideways
  • Z axis four linear guideways three binding structure patented technology
  • HSA Three-axis direct connected drive advantage
  • Unique machine Structure Design
  • The Y-axis is designed to bring a broader range of processing
