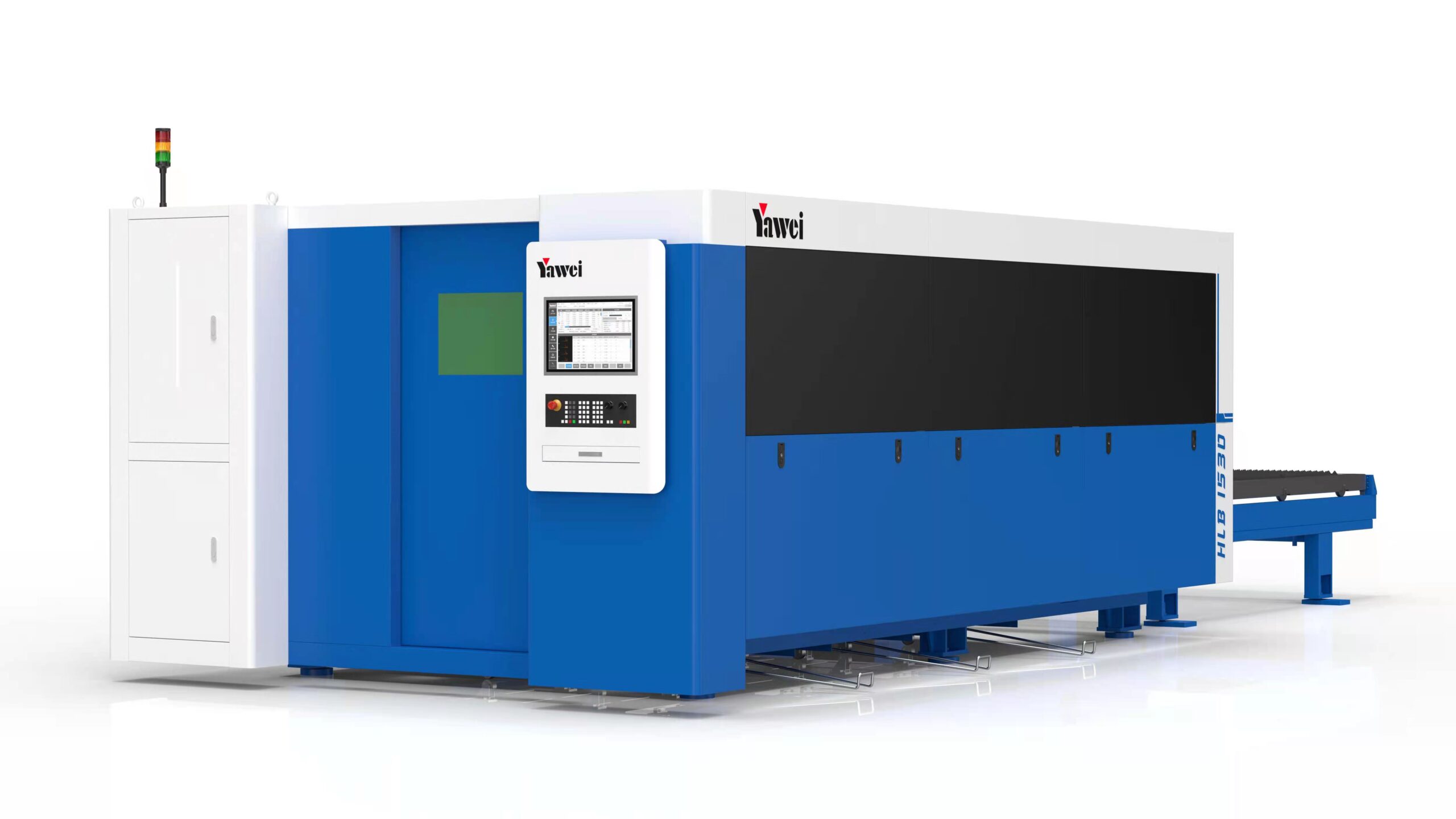

Yawei Laser Cutting HLB Series

Yawei Laser Cutting HLB Series

Note:

The Specifications and information above-mentioned may be changed without prior notice.

Categories: , ,

Technical Specifications

Yawei Laser Cutting HLB Series

Model  Unit HLB-1530 HLB-2040 HLB-2060
Cutting range mm 3000 × 1500 4000 × 2000 6000 × 2000
X axis stroke mm 3040 4040 6040
Y axis stroke mm 1520 2020 2020
Z axis stroke mm 240 240 240
X/Y maximum trajectory speed m/min 140 140 140
X / Y maximum acceleration m/s² 1.2G 1.2G 1.2G
Positioning accuracy mm ±0.03 ±0.03 ±0.03
Repositioning accuracy mm ±0.02 ±0.02 ±0.02
Maximum load of worktable kg 700 1200 2000
Machine layout dimension mm 9000 × 4800 × 2200 11500 × 5000 × 2200 15500 × 5000 × 2200
Machine weight kg 7000 9000 13000
Laser generator power kw 1 / 1.5 / 2 / 3 / 4 / 6



*NOTE*The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA

Features

  • Gantry double-drive bed structure, high rigidity laser-welded beams, direct exchange of worktables, efficient and stable operation.
  • Standard embedded programming software, easy to operate, easy to learn, perfectly integrated with HMI man-machine interface, super fast programming.
  • The user-friendly operation interface and cutting parameter library are fully upgraded, and the operation is convenient.
  • Fully enclosed integrated design, maintenance-free optical path, extremely low operating cost.
  • The cutting expert for medium and thin plates, the perfect combination of speed and performance, the king of cost performance.
