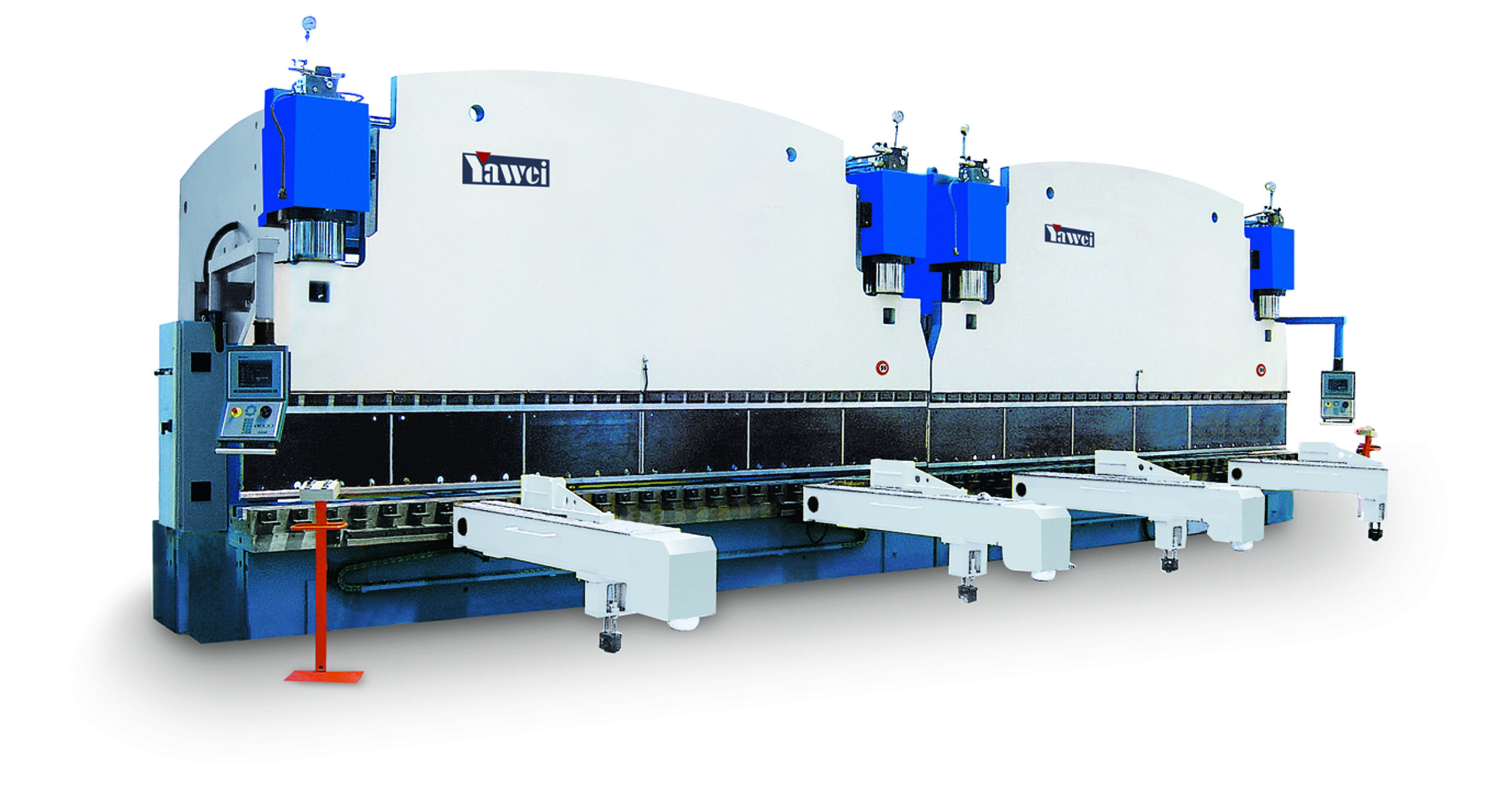

Yawei Press Brake High Speed Series
Yawei Press Brake High Speed Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specifications
Yawei High Speed Series
| Model | Bending Force | Bending Length | Thorat Depth | Ram Stroke | Main Motor Power | Oil Tank Volume | Overall Dimension (L X W X H) | Weight |
| kN | mm | mm | mm | kW | L | mm | kg | |
| PBA-35/1250 | 350 | 1250 | 300 | 120 | 5 | 100 | 1930 x 1400 x2200 | 3000 |
| PBA-630/2050 | 630 | 2050 | 350 | 175 | 6 | 150 | 2700 x 1450 x2360 | 4000 |
| PBA-630/2550 | 630 | 2550 | 350 | 175 | 6 | 200 | 3200 x1450 x2360 | 5000 |
| PBA-110/3100 | 1100 | 3100 | 410 | 215 | 8.7 | 250 | 3665 x 1430 x2620 | 7000 |
| PBA-110/4100 | 1100 | 4100 | 410 | 215 | 8.7 | 300 | 4665 x 1430 x 2620 | 8500 |
| PBA-160/3100 | 1600 | 3100 | 410 | 215 | 10.8 | 350 | 3685 x 1500 x 2750 | 8600 |
| PBA-160/4100 | 1600 | 4100 | 410 | 215 | 10.8 | 400 | 4685 x1500 x 2810 | 10500 |
| PBA-220/3100 | 2200 | 3100 | 410 | 215 | 16.7 | 400 | 3705 x 1745 x 2830 | 10800 |
| PBA-220/4100 | 2200 | 4100 | 410 | 215 | 16.7 | 500 | 4705 x 1745 x 2930 | 12800 |
| PBA-300/3100 | 3000 | 3100 | 410 | 265 | 21.4 | 450 | 3725 x 1925 x 2980 | 13800 |
| PBA-300/4100 | 3000 | 4100 | 410 | 265 | 21.4 | 600 | 4725 x 1925 x 3080 | 15800 |
| PBH-80/2550 | 800 | 2550 | 350 | 175 | 9.8 | 230 | 3140 x 1540 x 2450 | 6500 |
| PBH-110/3100 | 1100 | 3100 | 410 | 215 | 12.5 | 300 | 3610 x 1550 x 2620 | 8800 |
| PBH-110/4100 | 1100 | 4100 | 410 | 215 | 12.5 | 360 | 4610 x 1550 x 2670 | 11000 |
| PBH-160/3100 | 1600 | 3100 | 410 | 215 | 18 | 380 | 3630 x 1600 x 2670 | 10300 |
| PBH-160/4100 | 1600 | 4100 | 410 | 215 | 18 | 430 | 4630 x 1600 x 2720 | 12500 |
| PBH-220/3100 | 2200 | 3100 | 410 | 215 | 24.4 | 400 | 3650 x 1850 x 2735 | 12800 |
| PBH-220/4100 | 2200 | 4100 | 410 | 215 | 24.4 | 500 | 4650 x 1850 x 2935 | 16000 |
| PBH-250/3100 | 2500 | 3100 | 410 | 215 | 24.4 | 400 | 3650 x 1850 x 2735 | 13000 |
| PBH-250/4100 | 2500 | 4100 | 410 | 215 | 24.4 | 500 | 4650 x 1850 x 2935 | 16200 |
| PBH-300/3100 | 3000 | 3100 | 410 | 265 | 22 | 450 | 3310 x 1890 x 2980 | 16000 |
| PBH-300/4100 | 3000 | 4100 | 410 | 265 | 22 | 600 | 4310 x 1890 x3080 | 19000 |
Features
| High frequency response hydraulic control technology, fast speed, high efficiency, stable precision |
| Balance valve control technology, overflow reduced, low oil temperature, more stable and reliable for machine |
| More outstanding parameters and configuration, more powerful functions,easier operation |
| There is option that worktable can be equipped with dynamic hydraulic compensation function, closed loop control, higher precision and good stability |
