Product description
For more details, please contact marketing@electronicahitech.com

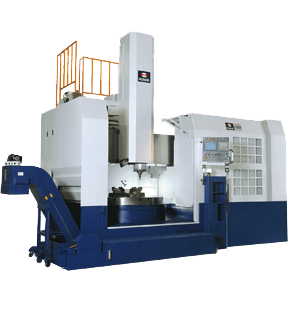

Honor Turning Lathe Heavy Duty Series
Honor Turning Lathe Heavy Duty Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specifications
Honor VTL 66-300 Series
| Particular | Unit | VL-66C | VL-66CM | VL-86C | VL-86CM | VL-100C | VL-100CM | VL-100CR | VL-100CRM | VL-300C | VL-300CM |
| Max Swing Dia | mm | 850 | 950 | 1200 | 1200 | 3600 | |||||
| Max Turning Dia | mm | 850 | 900 | 1200 | 1200 | 3600 | |||||
| Max Turning Height | mm | 650 | 650 | 650 | 800 | 2000 | |||||
| Chuck dia / Table dia | mm | 610 | 800 | 1000 | 1000 | 3000 | |||||
| Spindle Speed | rpm | - | 50-2550 | - | 50-2550 | - | 50-2550 | - | 50-2550 | - | 50-2,250 |
| Cross Section of Ram | mm | 200x200 | 200x220 | 200x200 | 200x220 | 200x200 | 200x220 | 200x200 | 200x220 | 300x300 | |
| Power Requirement | KvA | 40 | 55 | 40 | 55 | 75 | 90 | 75 | 90 | 120 | 210 |
| Height | mm | 4500 | 4800 | 4500 | 4800 | 4100 | 4700 | 4300 | 4900 | 7500 | 8000 |
| Weight | kg | 12500 | 13500 | 17800 | 18600 | 18300 | 19100 | 83500 | 85000 | ||
Features
| Patented Tool locking system |
| Wide Span between two columns |
| First CNC VTL manufacturer in Taiwan |
| Wider distance in ‘X’ axis guides |
| Carbonized Cross roller bearing for spindle |
| Ceritified by world wide aerospase companies including NASA |
| Available with Single & Double RAM structure |
