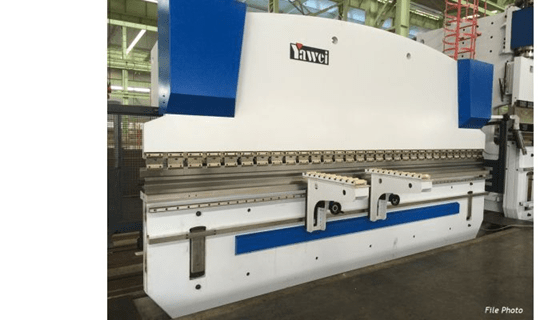

Yawei Press Brake Heavy Duty Series

Yawei Press Brake Heavy Duty Series

Categories: , ,

Technical Specifications

Yawei Press Brake Heavy Duty Series

Model  Bending Force  Bending Length Thorat Depth  Ram Stroke Main Motor Power Overall Dimension (L X W X H) Weight
kN mm mm mm kW mm kg
PBH(A)-160/5100 1600 5100 410 215 11 5400 x 1850 x 3350 20000/17200
PBH(A)-220/5100 2200 5100 410 215 15 5400 x 1860 x 3380 23000/20000
PBH(A)-220/6200 2200 6200 410 215 15 6500 x1850 x 3430 280000/23000
PBH(A)-300/5100 3000 5100 410 265 22 5400 x2000 x3360 29000/25000
PBH(A)-300/6200 3000 6200 410 265 22 6500 x 2000 x3610 33000/28500
PBH(A)-400/4100 4000 4100 510 315 30 4400 x 2150 x 3480 27000/25000
PBH(A)-400/5100 4000 5100 510 315 30 5400 x 2160 x 3880 35500/31000
PBH(A)-400/6200 4000 6200 510 315 30 6500 x 2160 x 3910 43000/37000
PBH(A)-500/4100 5000 4100 510 315 37 4400 x 2190 x 3700 33000/30000
PBH(A)-500/5100 5000 5100 510 315 37 5400 x 2290 x 4200 43000/38000
PBH(A)-500/6200 5000 6200 510 315 37 6500 x 2290 x 4500 53000/48000
PBH(A)-500/8200 5000 8200 510 315 37 8500 x 2290 x 5400 71000/61000
PBH(A)-630/4100 6300 4100 510 315 45 4400 x 2430 x 4200 38000/35000
PBH(A)-630/5100 6300 5100 510 315 45 5400 x 2430 x 4200 52000/47000
PBH(A)-630/6200 6300 6200 510 315 45 6500  x2430 x 4500 66000/57000
PBH(A)-630/8200 6300 8200 510 315 45 8500  x 2430 x 4630 78000/67500
PBH(A)-800/6200 8000 6200 610 410 75 6500  x2900 x 5000 89000/77000
PBH(A)-800/8200 8000 8200 610 410 75 8500 x2900 x 5400 105000/93000
PBH(A)-1000/6200 10000 6200 610 410 90 6500 x 2760 x 4800 108000/92000
PBH(A)-1000/8200 10000 8200 610 410 90 8500 x 2760 x 5300 130000/112000
PBH(A)-1200/6200 12000 6200 610 410 90 6500 x 2940 x 5000 110000/95000
PBH(A)-1200/8200 12000 8200 610 410 90 8500 x 2940 x 5400 136000/116000
PBH(A)-1200/12000 12000 12000 610 410 90 12200 x 3700 x 7900 230000/200000
PBH(A)-1600/8200 16000 8200 610 410 2×55 8500 × 3300 × 6700
PBH(A)-1600/12000 16000 12000 1000 500 2×55 12200 × 4700 × 9900
PBH(A)-2000/12000 20000 12000 1250 600 2×75 12200 × 4700 × 9900
PBH(A)-2500/12000 25000 12000 1500 600 2×75 12200 × 5300 × 9900
PBH(A)-3000/12000 30000 12000 1500 600 2×90 12200 × 3740 × 8800



*NOTE*The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA

Features

  • CNC Pressbrake featuring an advanced design with high speed , high accuracy & excellent rigidity
  • An electric – hydraulic full loop servo system controlling the synchronization of the ram
  • Mechanical bed crowning with C frame deformation compensation system ensures precise bends
