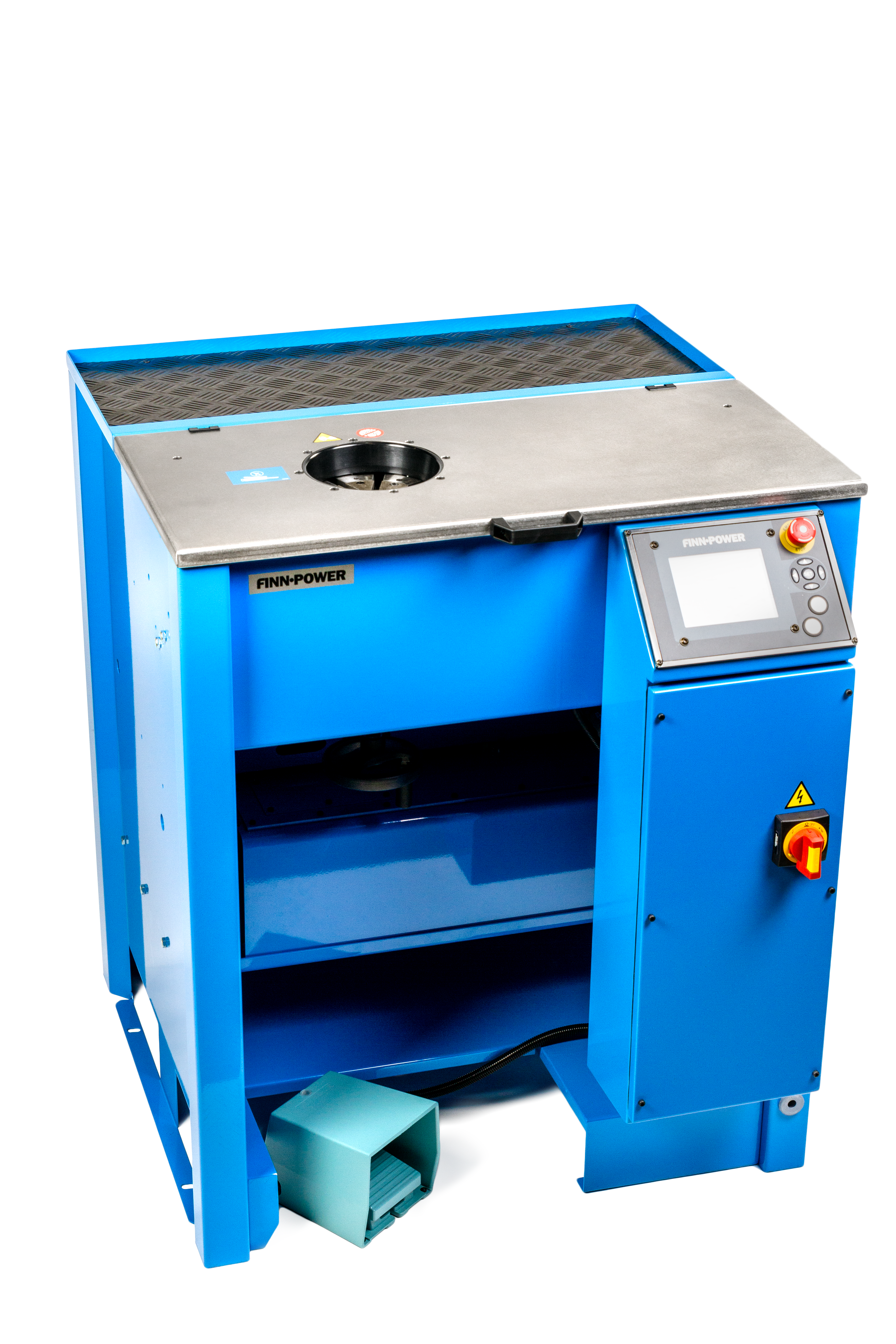

Lillbacka Nut and Cable Crimping NC Series

Lillbacka Nut and Cable Crimping NC Series

Note:

The Specifications and information above-mentioned may be changed without prior notice.

Categories: , ,

Technical Specifications

Lillbacka Nut and Cable Crimping NC Series

Model Unit NC20 NC30 NC40
Crimping range (mm)1 12-49 12-63 12-105
Crimping range (inch) 1) 0.47-1.93 0.47-2.48 0.47-4.13
Max. crimping force kN 500 660 930
Max. crimping force Tonnage 50 66 93
Cycle time 10 mm(s)² 1.5 1.4 (S-model: 0.6) 1.9
Max. opening mm 18 26 26
Max. opening without dies mm 117 125 166
Motor KW 3 4 4
Standard mm 835 x 885 x 997 835 x 885 x 997 835 x 885 x 997
Z-model head mm 321 x 340 x 395 406 x 359 x 395 406 x 372 x 395
Z-model hydraulic unit mm 597 x 436.5 x 651 597 x 436.5 x 651 653 x 473 x 711
Weight Standard kg 287 288 288
Weight Z-model head kg 113 129 129
Z-model hydraulic unit kg 103 101 96



*NOTE* The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.

Features

  • Finn-Power NC-machines have proven to be the most reliable and widely used nut crimping machines in the industry. NC-machines provide fast and accurate crimping for fitting manufacturing.
  • NC20 can be used also for other applications with short crimping length small hoses, rings, tubes and sensors
  • NC30 is equipped with longer master dies and has bit more opening and force than NC20. NC30 can be used also for other applications with short crimping length eg. connectors, small hoses, rings, tubes and sensors.
  • With 93 ton force and 140mm master dies NC40 is the second biggest NC-machine in the range. NC40 can be used also for other applications with short crimping length eg. connectors, small hoses, rings, tubes and sensors.
  • Adjustable back stop enables quick set up for different products. A special centering pin, selected according to ferrule size, can be used during the crimping.
  • Also available as Z-model with separate crimping head and hydraulic unit.
