Technical Specifications

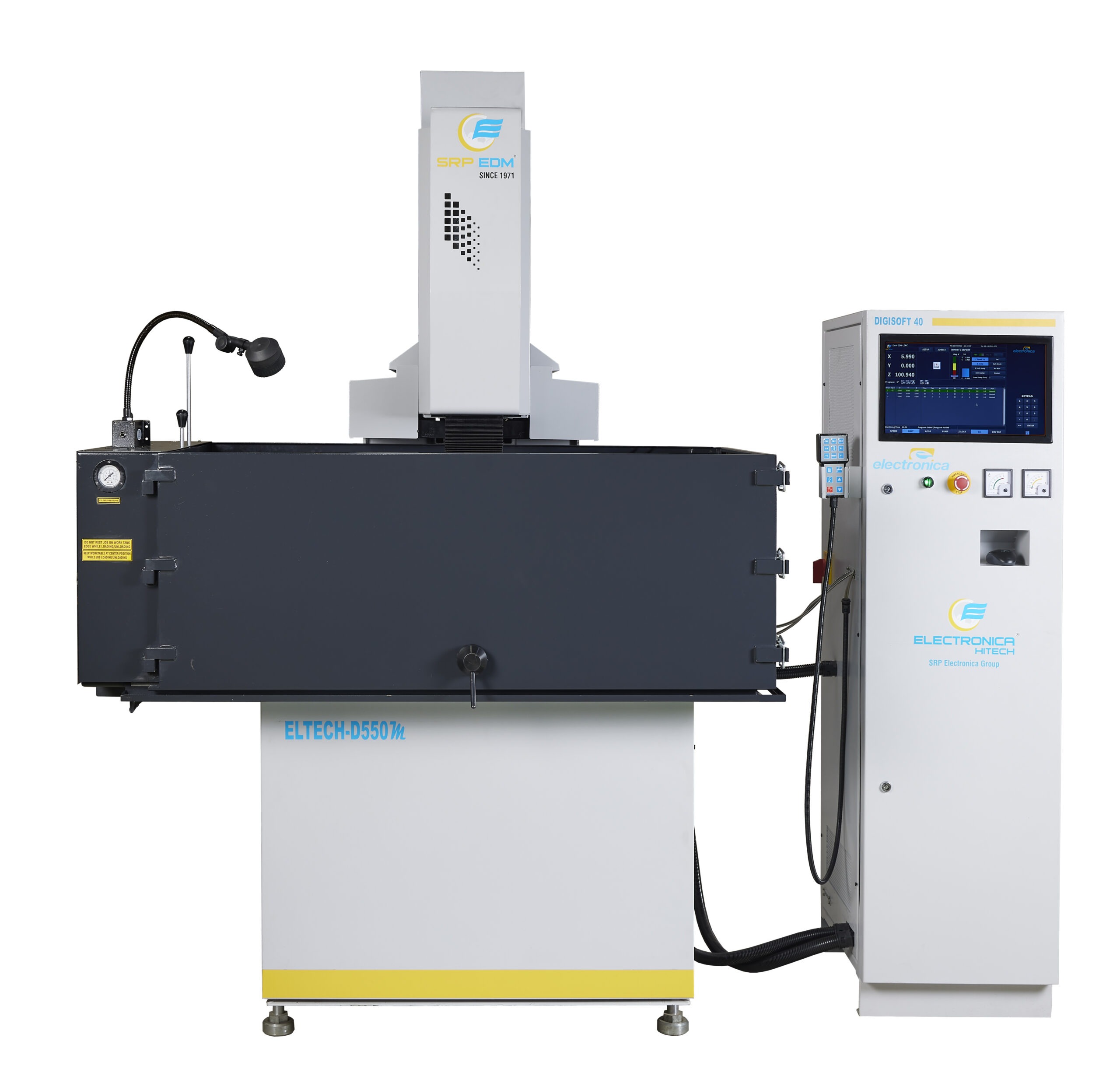

Electronica Hitech EDM D550M
| Parameter | Unit | ELTECH-D 550 M |
| X, Y Travel Size | mm | 550 X450 |
| Work Table Size | mm | 1000 X 500 |
| Z Axis Travel | mm | 250 |
| T Slots for Fixing | mm | 4 of 12 |
| Back Slide | mm | 300 |
| Max Work piece Height | mm | 350 |
| Max.Electrode Weight | Kg | 100 |
| Max Load on Worktable | Kg | 2000 |
| Daylight | mm | 775 |
| Work Tank internal size | mm | 1420 X 850 X 525 |
| Depth of Throat | mm | 650 |
| Overall weight | Kg | 2000 |
| Overall Dimensions | mm | 1700 X 2300 X 2550 |
| Dielectric capacity | Litre | 660 |
*NOTE* The Specifications and information above-mentioned may be changed without prior notice. For more details, please contact ELECTRONICA.
