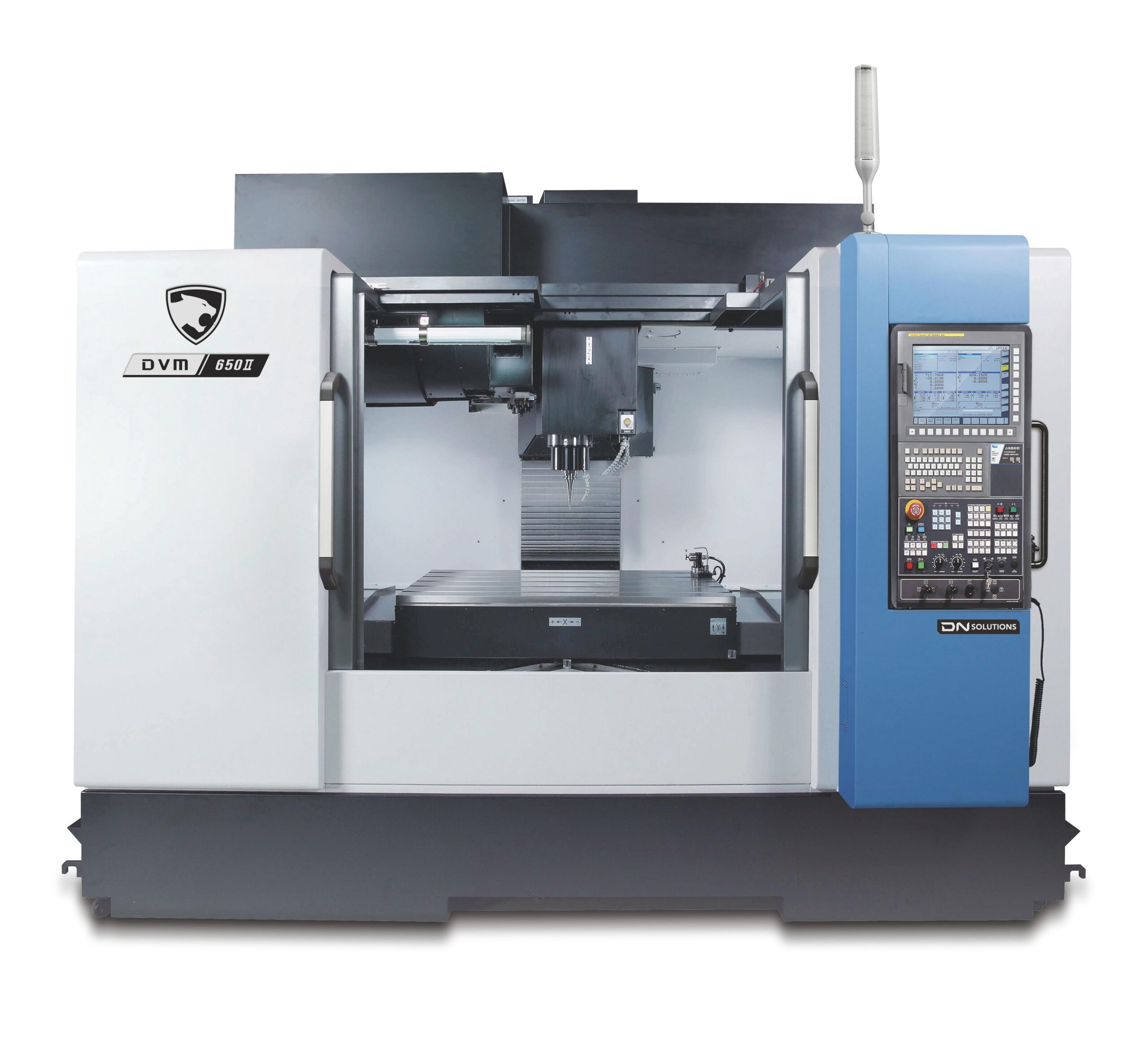

DN Solutions Vertical Machining Center DVM II Series
DN Solutions Vertical Machining Center DVM II Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specipications
DN Solutions DVM Series
| Description | Unit | DVM 500 II | DVM 650 II | |
| Travel | X-axis | mm (inch) | 1020 (40.2) | 1270 (50.0) |
| Y-axis | mm (inch) | 540 (21.3) | 670 (26.4) | |
| Z-axis | mm (inch) | 510 (20.1) | 625 (24.6) | |
| Distance from spindle nose to table top | mm (inch) | 150 - 660 (5.9 - 26.0) | 150 - 775 (5.9 - 30.5) | |
| Feed Rate | Rapid feedrate (X, Y, Z) | m/min (ipm) | 30 / 30 / 30 (1181.1 / 1181.1 / 1181.1) | |
| Cutting feed rate | m/min (ipm) | 1~15000 (1~590.6) | ||
| Table | Table size | mm (inch) | 1200 x 540 (47.2 x 21.3) | 1300 x 670 (51.2 x 26.4) |
| Loading capacity | kg (lb) | 800 (1763.7) | 1000 (2204.6) | |
| Spindle | Max spindle speed | r/min | 20000 | |
| Taper specifications | ISO #40, 7/24 Taper | |||
| Max. torque | N·m (ft-lb) | 60 (44.3) | ||
| Automatic Tool Changer (ATC) | Tool shank type | - | MAS403 BT40 | |
| Tool storage capacity | ea | 30 {40} | ||
| Motor | Spindle motor power | kW (Hp) | 11 / 15 / 22 (14.8 / 20.1 / 29.5) | |
| Machine Dimensions | Height | mm (inch) | 2789 (109.8) | 2905(114.4) |
| Length x Width | mm (inch) | 2462 x 3350 (96.9 x 131.9) | 2692 x 3350 (106.0 x 131.9) | |
| Weight | kg (lb) | 6500 (14329.8) | 8500 (18739.0) | |
Features
| The high rigidity structure of DVM II serieshas raised the static rigidity up by 30% more than previous model. |
| High speed and high precision built-in spindle ensures maintaining stable precision level while spindle head cooling system minimizes the heat deflection. |
| Thermal displacement of the spindle is minimized, so processing accuracy can be maintained for even long periods of use. Automatic tool measurement device and High-performance oil-cooler as standard. |
| DVM II series realizes high quality mold technology with high precision spindle run-out and highly rigid axis travel system. |
| Diverse optional features are available for customer-specific work applications. |
| Fanuc 31i/32i Plus maximizes customer productivity and convenience. |
