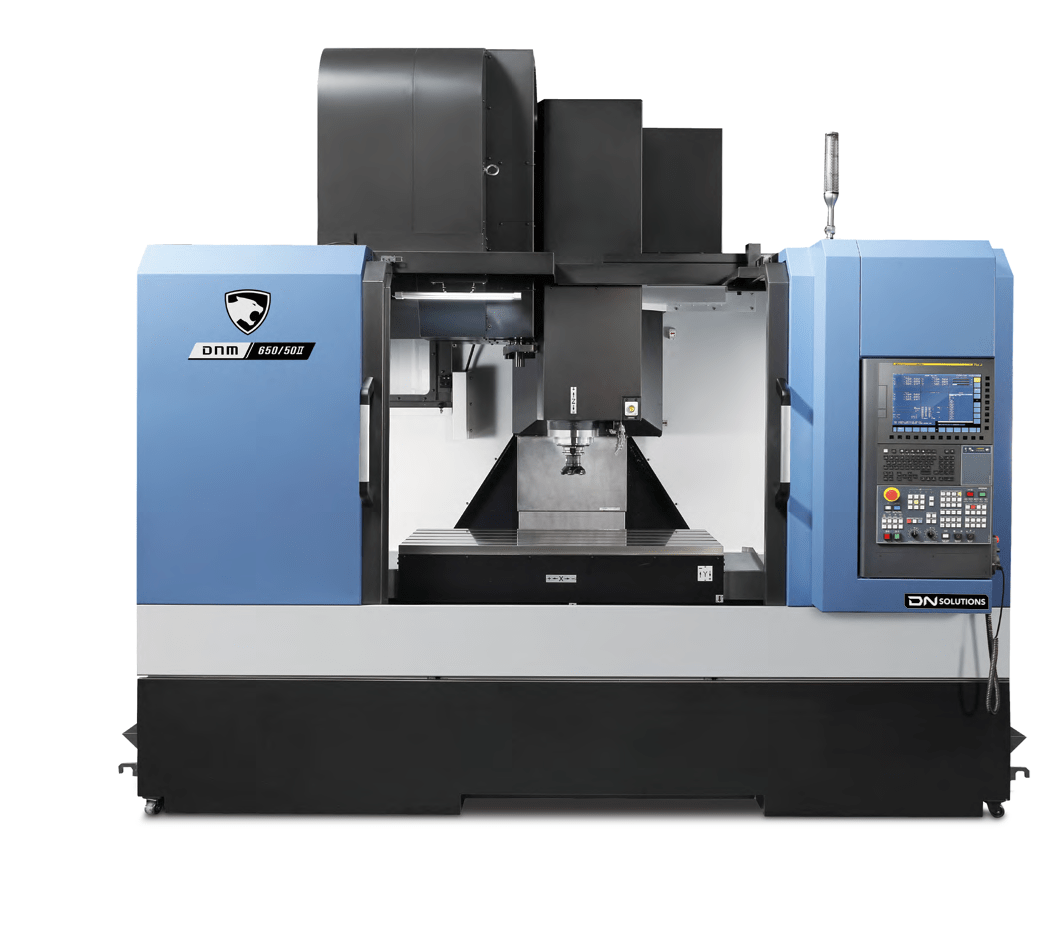

DN Solutions Vertical Machining Center DNM 200-350-650-750 Series
DN Solutions Vertical Machining Center DNM 200-350-650-750 Series
Note:
The Specifications and information above-mentioned may be changed without prior notice.
Technical Specifications
DN Solutions DNM Series
| Description | Unit | DNM 650/50Ⅱ | DNM 750/50Ⅱ | DNM 750L/50Ⅱ | DNM 200/5AX | DNM 350/5AX | ||
| Travel | X-axis | mm (inch) | 1270 (50.0) | 1630 (64.2) | 2160 (85.0) | 400 (15.7) | 400 (15.7) | |
| Y-axis | mm (inch) | 670 (26.4) | 762 (30.0) | 762 (30.0) | 435(+180, -255) (17.1 (+7.1, -10.0)) | 655 (25.8) | ||
| Z-axis | mm (inch) | 625 (24.6) | 650 (25.6) | 650 (25.6) | 500 (19.7) | |||
| Distance from spindle nose to table top | mm (inch) | 30 ~ 530 (1.2 ~ 20.9) | 50 ~ 550 (2.0 ~ 21.7) | 50 ~ 550 (2.0 ~ 21.7) | 30 ~ 530 (1.2 ~ 20.9) | 50 ~ 550 (2.0 ~ 21.7) | ||
| Table | Table size | mm (inch) | 1300 x 670 (51.2 x 26.4) | 1630 x 760 (64.2 x 29.9) | 2160 x 760 (85.0 x 29.9) | Ø200 (7.9) | Ø350 (13.8) | |
| Loading capacity | kg (lb) | 1000 (2204.6) | 1500 (3306.9) | 1800 (3968.3) | 40 (88.2) (Horizontal) / 60 (132.3) (Vertical) | 250 (551.1) | ||
| Spindle | Max spindle speed Fanuc | r/min | 12000 | 12000 (20000) | 12000 (20000) | 12000 | 12000 (20000) | |
| Taper | - | ISO #50 | ISO #40, 7/24 TAPER | |||||
| Max. spindle power | kW (Hp) | 22/11 (29.5/14.8) (S3 25%/Cont.) {26/22 (34.9/29.5) (S3 40%/Cont.)}* | 18.5 / 11 (24.8 / 14.8) | 18.5 / 11 (22 / 18.5 or 22 / 11) (24.8 / 14.8 (29.5 / 24.8 or 29.5 / 14.8)) | ||||
| Max. spindle torque | N·m (ft-lb) | 353.2 (260.5) (5min) {165.5 (122.0)(S3 40%)}* | 117 (86.3) | 117 { 167 / 60 } (86.3 {123.2 / 44.3}) | ||||
| Feedrates | Rapid traverse rate X Axis | m/min (ipm) | 36 (1417.3) | 30 (1181.1) | 24 (944.9) | 36 (1417.3) | ||
| Rapid traverse rate Y Axis | m/min (ipm) | 36 (1417.3) | 30 (1181.1) | 24 (944.9) | 36 (1417.3) | |||
| Rapid traverse rate Z Axis | m/min (ipm) | 30 (1181.1) | 24 (944.9) | 24 (944.9) | 30 (1181.1) | |||
| Automatic Tool Changer (ATC) | Type of tool shank | Tool shank | - | BT 50 {CAT50/DIN50}* | MAS403 BT 40 | |||
| Pull stud | MAS403 P50T-1 (45°) | { CAT 40 } | ||||||
| Tool storage capacity | ea | 24 {30}* | 30 { 40 } | 30 { 40, 60 } | ||||
| Power Source | Electric power supply (Rated capacity) | kVA | 36.2 {50.2}* | 56.3 | 31.3 | 40.6 (45.7) | ||
| Machine Dimensions | Height | mm (inch) | 3250 (128.0) | 3385 (133.3) | 3385 (133.3) | 3091 (121.7) | 3190 (125.6) | |
| Length | mm (inch) | 3350 (131.9) | 3435 (135.2) | 3435 (135.2) | 2835 (111.6) | 3209 (126.3) | ||
| Width | mm (inch) | 2740 / 3000 (107.9 / 118.1) | 3850 (151.6) | 4900 (192.9) | 2490 (98.0) | 3150 (124.0) | ||
| Weight | kg (lb) | 9000 (19841.3) | 13800 (30423.8) | 15300 (33730.7) | 5500 (4059.0) | 8500 (6273.0) | ||
| Control | NC system | - | DN Solutions Fanuc i Plus, HEIDENHAIN TNC 620 | DN Solutions Fanuc i Plus, Fanuc 31i Plus | DN Solutions Fanuc i Plus / Fanuc 31i Plus / HEIDENHAIN | |||
Features
| Directly coupled spindles reduce vibration and noise improving the machine’s performance and positively impacting on the machine shop environment. |
| Highly rigid columns and Roller LM guideways are incorporated for heavy duty machining operations. |
| Easy operation ensures user convenience and efficiency |
| The Ez work functions are user friendly ensuring ease-of-use. |
| A highly rigid column is adopted for heavy duty machining. |
| This machining center provides workpiece capacities from 540 to 762 mm in the Y-axis, enabling a wide range of workpieces to be accommodated and processed. |
| The directly coupled spindle reduces vibration and noise improving the machine’s performance and positively impacting on the machine shop environment. |
| The dual contact spindle has been adopted as a standard to ensure high performance during heavy duty machining operations. |
