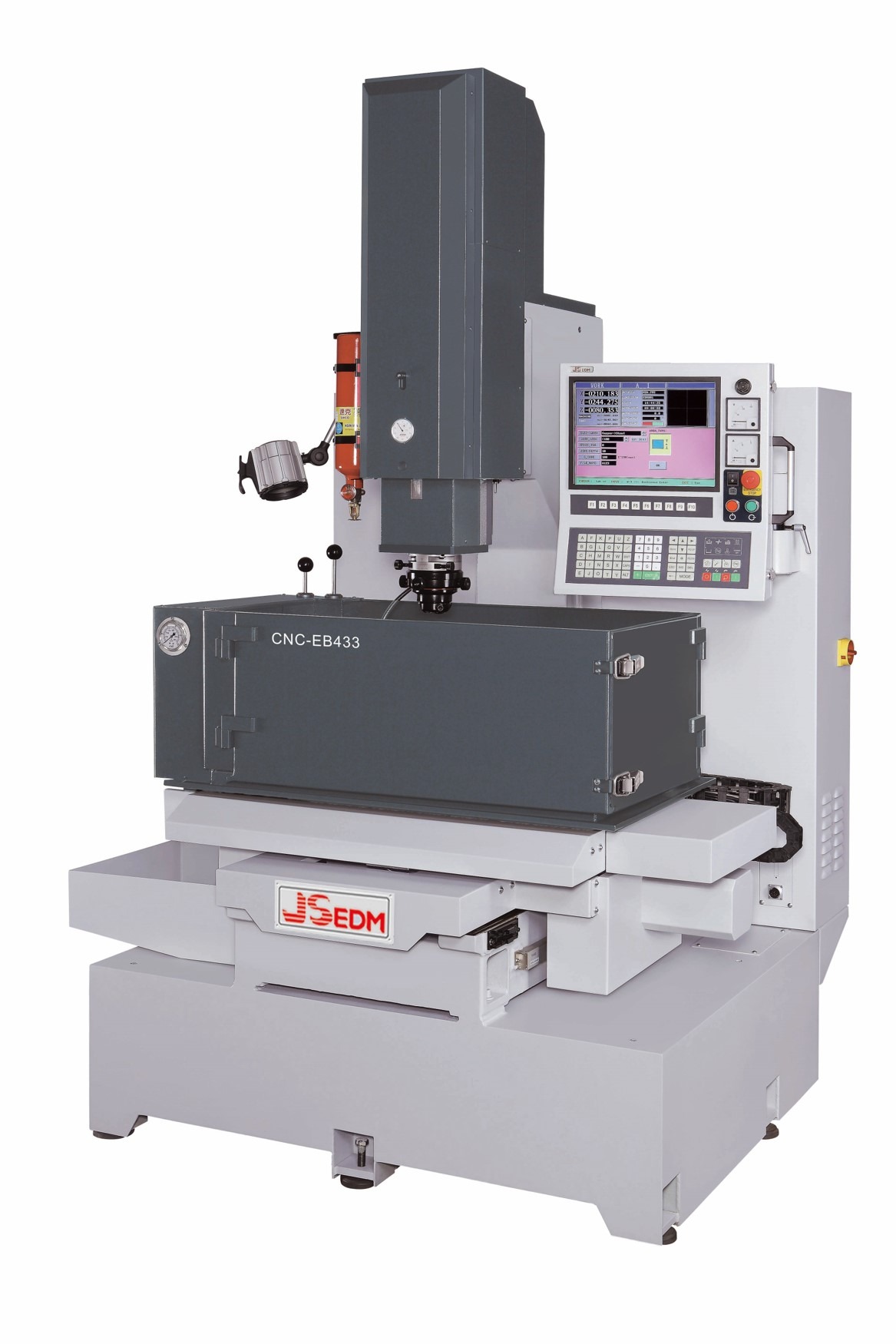

CNC JS EDM Series

CNC JS EDM Series

Categories: ,

Product description

For more details, please contact marketing@electronicahitech.com

Technical Specifications

JS CNC EDM

Parameter Unit CNC - EB433 CNC - EB540L CNC - EB600L CNC-EB600L(S.F) CNC - EB5435L CNC-EB750L CNC-EB1060L CNC-EB1270L CNC-EB1510L CNC-EB1880L CNC-EB2210L CNC-EB2210L-2H CNC-EB2610L CNC-EB2610L-2H CNC-EB3010L CNC-EB3010L-2H
Capacity of Work Tank mm 900 x 520 x 385 1100 x 630 x 260 1100 x 600 x 400 1100 x 600 x 400 1250 x 800 x 520 1500 x 940 x 520 1900  x  1100  x  620 2100 x 1250 x 620 2300 x 1700 x 800 2600 x 1320 x 700 2850 x 1700 x 800 2900 x 1700 x 800 3900 x 1700 x 800 2900 x 1700 x 800 3900 x 1700 x 800 3900 x 1700 x 800
Work Table Size mm 600 x 350 800 x 450 700 x 400 700 x 400 850 x 450 1000 x 600 1250 x 750 1350 x 820 1580 x 1100 1850 x 1000 2250 x 1100 2250 x 1100 2700 x 1100 2250 x 1100 3100 x 1100 3100 x 1100
Longitudinal travel (X) mm 400 500 400 400 500 700 1000 1200 1500 1800 2200 1550(SM) 775(DM) 2600 1550(SM) 775(DM) 3000 2550(SM) 1275(DM)
Cross travel (Y) mm 300 400 300 300 400 500 600 700 1000 800 1000 1000 1000 1000 1000 1000
Z axis travel mm 300 350 300 300 350 500 500 500 600 600 600 600 600 600 600 600
Distance between Platen to table mm 310~610 285~635 270~570 270~570 420~770 - 450~950 510~1010 650~1250 450~1050 660~1260 720~1320 560~1160 720~1320 660~1260 720~1320
Max.electrode weight Kg 100 220 100 100 200 250 350 400 500 500 500 500 500 500 500 500
Max. workpiece weight Kg 500 1350 1000 1000 2000 3000 4500 5000 11000 7000 9500 10000 10000 10000 16000 16000
Fluid Tank capacity L 300 520 370 370 850 964 1600 1900 3500 2800 4100 4700 5400 4700 5800 6000
Machine Outside Dimension(WxDxH) mm 1700 x 1600 x 2350 3600 x 1340 x 2513 1900 x 1750 x 2350 2700 x 1750 x 2350 2700 x 2250 x2400 2840 x 2700 x 2700 3600 x 3250 x 3200 4000 x 3400 x 3250 4060 x 4800 x 3620 5000 x 4000 x 3200 5500 x 4600 x 3750 6500 x 4600 x 3570 6000 x 4660 x 3690 6500 x 4600 x 3570 6000 x 4600 x 3620 7000 x 4600 x 3620
Machine Weight Kg 1750 1950 2250 2400 2700 4500 5200 6500 14500 9000 13500 15000 16500 15000 19000 21000
Max. Machining Current A 60 / 90 60 / 90 60 / 90 60 / 90 60 / 90 60 / 90 90 / 120 90 / 120 90 / 120 90 / 120 120 120 120 120 120 120
Max. power input kva 07 / 10 07 / 10 07 / 10 07 / 10 07 / 10 07 / 10 10 / 13 10 / 13 10 / 13 10 / 13 13 13 13 13 13 13
Max. machining rate mm3/min 400 / 600 400 / 600 400 / 600 400 / 600 400 / 600 400 / 600 600 / 800 600 / 800 600 / 800 600 / 800 800 800 800 800 800 800
Min. Electrode wear ratio 0.12% 0.12% 0.12% 0.12% 0.12% 0.12% 0.12% 0.12% 0.12% 0.12% 0.12% 0.12% 0.12% 0.12% 0.12% 0.12%
Best surface/Ra µm 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
Min. D.R.O resolution mm 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001

Features

Sturdy & compact head stock for easy opearation with high precision
Metric & British system display & program Setting
1000 stations processing programs
Automatically edge finding , homefinding, center or inner hole finding & apex finding
Single or 3 axis lateral machining , round orbiting , square orbiting , vector machining
Industrial IPC System, ensure the best stability in any machining Condition
