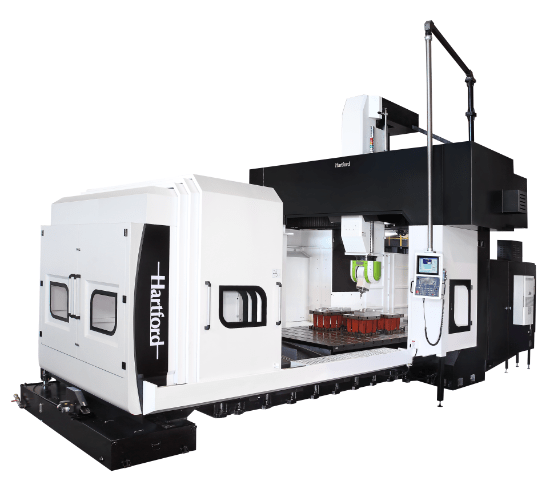

Hartford Gantry Type 5 Axis Machining Center 5BC Series

Hartford Gantry Type 5 Axis Machining Center 5BC Series

Note:

The Specifications and information above-mentioned may be changed without prior notice.

Categories: , ,

Technical Specifications

Hartford 5 Axis DCM 5BC Series

Model    5BC-329/429/529/629 5BC-334/434/534/634 5BC-438/538/638/738/838
Working Surface mm 3000/4000/5000/6000X2000 3000/4000/5000/6000X2000 4000/5000/6000/7000/8000X2500
Max Load  kg 10000/12000/15000/18000 10000/12000/15000/18000 18000/20000/23000/25000/27000
T Slot Width mm 28X250(11/15/19/23) 28X250(11/15/19/23) 28X250(15/19/23/27/31)
X Axis mm 3000/4000/5000/6000 3000/4000/5000/6000 4000/5000/6000/7000/8000
Y Axis mm 2900 3400 3800
Z Axis mm 1000 1000 1000
Width B/W Column mm 2300 2800 3200
Spindle nose taper   HSK-A63/HSK-A100 HSK-A63/HSK-A100 HSK-A63/HSK-A100
RPM of B Axis rpm  60 60 60
Precision of Positioning   15" 15" 15"
C Axis Speed rpm  60 60 60
C Axis Travel degree HSK-A63 :240 /HSK-A100:360 HSK-A63 :240 /HSK-A100:360 HSK-A63 :240 /HSK-A100:360
Cutting Feedrate m/min 12/12/12(329) 10/12/12/12(429) 8/12/12(529/629) 12/12/12(334) 10/12/12/12(434) 8/12/12(534/634) 10/12/12/12(438) 8/12/12(538/638/738) 6/12/12 (838)
Rapid Trasverse m/min 20/18/16(329/429) 14/18/16(529) 12/18/16 (629) 20/18/16(343/434) 14/18/16(534) 12/18/16 (634) 16/18/16(438) 12/18/19(538) 10/18/16(638/7380  8/18/16(838)
Positioning with Linear mm 0.010/0.012/0.012/0.012 0.010/0.012/0.012/0.012 0.012
Repeatability mm 0.003 0.003 0.003
Positioning without Linear mm 0.010/0.012/0.012/0.012 0.010/0.012/0.012/0.012 0.012
Repeatability mm 0.003 0.003 0.003
Required Air Pressure kg/cm2 6.5 6.5 6.5
Machine Weight kg 35000 / 39000 / 42000 / 46000 39000 / 45000 / 50000 / 55000 48000 / 55000 / 62000 / 69000 / 76000
Floor Space mm 11775 / 13175 / 15175 / 17175  x 7240 12025 / 13425 / 15425 / 17525 X 7740 13625 / 15625 / 17725 / 19825 / 21935 X 8140
Machine Height mm 5790(HSK-A63_Z1000)     5990 (HSK-A100_Z1000) 5790(HSK-A63_Z1000)     5990 (HSK-A100_Z1000) 5790(HSK-A63_Z1000)     5990 (HSK-A100_Z1000)

Features

  • One piece bed design
  • Extra Large interference between column and base
  • Column rear -inclination design
  • 3 axis direct transmission between servo motor and ballscrew
  • High accuracy Linear guideway design
